Does altering the FPGA IO standard actually change something in hardware?

Hello to the community.

Here is a background/precondition of the question in the heading. I entered the realm of FPGA development using Verilog, DE10-Lite (MAX10 series) and Quartus Prime Lite Edition 20.1.1. My very first "program" was quite simple — three LEDs light one after another upon the button press. A running LED, if you please.

For better understanding:

1. OFF OFF OFF;

2. Button pressed;

3. ON OFF OFF;

4. Button pressed;

5. OFF ON OFF;

6. Button pressed;

7. OFF OFF ON;

8. Button pressed;

9. OFF OFF OFF;

Here is Verilog code:

module traffic(reset, clock, lights);
    input reset;
    input clock;
    output [2:0] lights;
    reg [2:0] lights;

    always @(posedge clock or negedge reset) begin
        if (!reset) begin
            lights = 3'h0;
        end else begin
            case (lights)
                4'h0      : lights = 3'h1;
                4'h1       : lights = 3'h2;
                4'h2      : lights = 3'h4;
                4'h4      : lights = 3'h0;
                default : lights = 3'h7;
            endcase
        end
    end
endmodule

The absolutely primitive program, and I was expecting it to work smoothly on the first try. Instead, it got stuck at step 5 mentioned above. Subsequent button presses have no impact on the state. The reset was fine, though.

I was trying to defeat this issue in code for some time and had no success. So in the end, decided to assign the lights output to the different pins. Original ones were PIN_A7, PIN_A8 and PIN_A9, then they became PIN_B10, PIN_D13 and PIN_C13. And it started to work!

After that, I tried to explicitly assign the IO standard to 3.3V LVTTL, like it is mentioned in the DE10-Lite User Manual and reverted to the original pins' assignments. And it began to work fine as well.

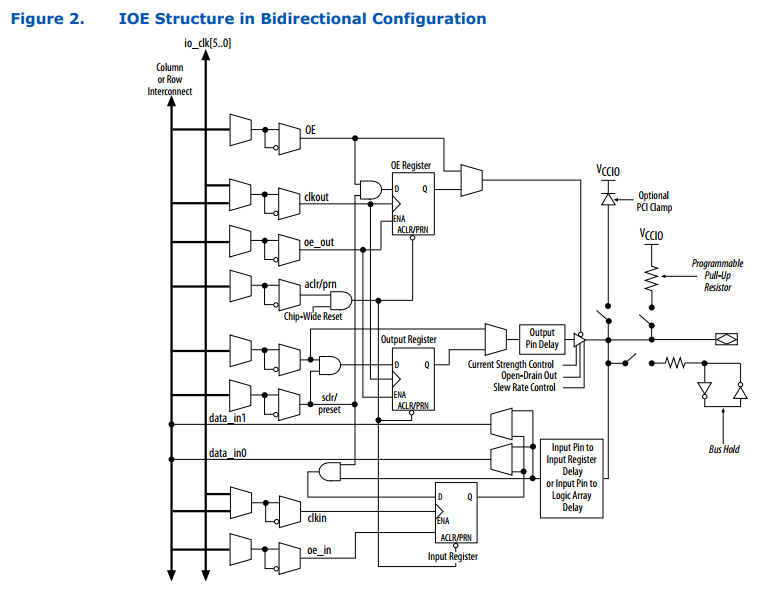

It is obviously a problem with the logic levels or, more specifically, interpretation of the input voltage, but I can't get what exactly. I have studied the MAX10 GPIO User Guide hoping to find there exact description of how the IO standard handled at hardware level, but there is little information there. Just this diagram:

It has nothing resembling an adjustable IO voltage, just a single Vccio.

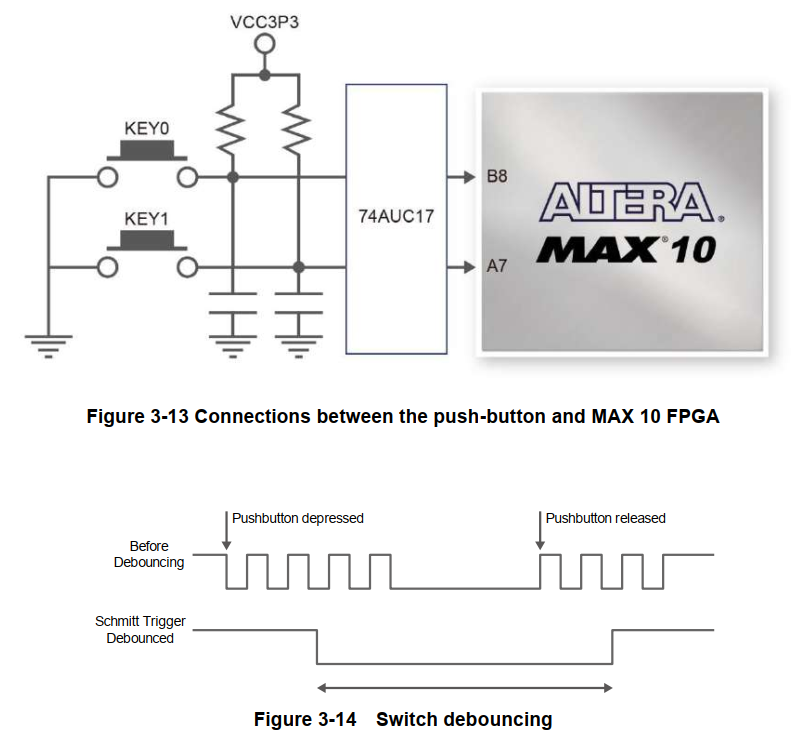

I have also asked the people at edaboard and they draw my attention to the fact that it is, in general, improper to use a button for clocking purposes due to bouncing, and that might be the root cause of my problem. And though I agree in general, I don't think it pertains to my case. Primarily because bouncing should trigger issues with an equal probability for all states, not for a sole one. Plus, there is a Schmitt trigger, at least the user manual mentions it:

So my humble question is: "Can someone give me a hint or a link to the document describing how the IO standard is handled at the hardware level?". To my surprise, this topic is not covered well enough either in docs I found or in forums. It feels like either everyone knows how it works or just relies on the software.

Thanks in advance.
