DDR4 calibration failed

Hi,

I instantiate a EMIF IP core with DDR4 protocol in my design, modify memory timing parameters and board skew values.

The DDR4 speed bin is 2400 and CL=16.

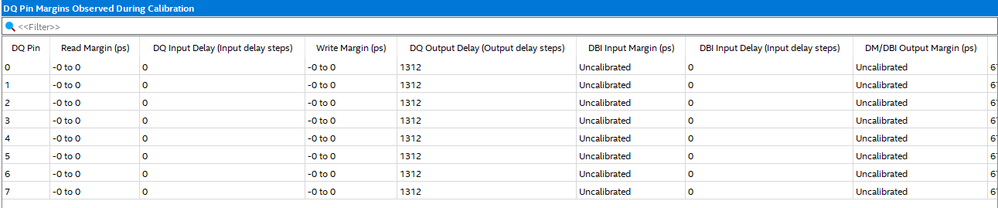

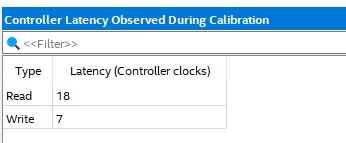

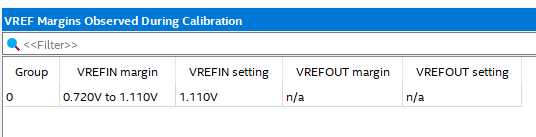

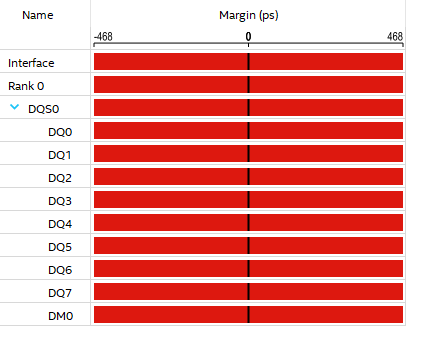

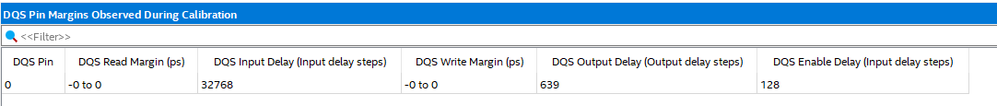

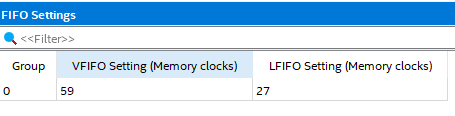

After programming the device in EMIF debug toolkit, I get the following calibration report, and emif_clk_user is correct, measured 267MHz≈1066.667MHz/4, but the local_cal_sucess is low.

The following pictures and txt files are resluts of EMIF debug toolkit. I will be appreciated if anyone can give me some suggestions.

Thanks, regards.

14 Replies

    • SYiwe's avatar
      SYiwe
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      Thank you.

      Which of the following should I choose if my DDR4 SDRAMs and FPGA are soldered on the same borad: component, UDIMM, RDIMM or anything else?

      Regards.

  • BoonT_Intel's avatar
    BoonT_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago

    Hi,

    If solder on board, mean it is not a DIMM device. Thus, choose - component.

    • SYiwe's avatar
      SYiwe
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      where can I found the process of calibration?

      thanks, regards.

    • SYiwe's avatar
      SYiwe
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      Thank you.

      I can see three calibration stages in table 45: Address and command, Read, Write.

      Does the three stages process as "Address and command" first, then "Read", and "Write" last?

      Thanks, regards.

  • BoonT_Intel's avatar
    BoonT_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago

    Hi Yes,

    Add/Cmd calibration goes first. then follow by read and write.

    • SYiwe's avatar
      SYiwe
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      The calibration failed at "write per-bit deskew" stage, any suggestions?

      Thanks.

  • BoonT_Intel's avatar
    BoonT_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago
    • Check the DQ/DQS line length matching. Confirm is the board layout meeting the guideline.
    • Try to reduce the interface frequency and retry. From the screenshot, looks like you are using 1066MhZ? Maybe reduce to 533Mhz.
    • change the data line output and input impedance setting. - on FPGA IO tab.
    • SYiwe's avatar
      SYiwe
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      thanks.

      In my current design, maximum skew within DQ/DM/DQS is 7.3ps, but both "maximum board skew within address/command bus" and "average delay difference between address/command and CK" exceed ±20 ps, I think that violate the guidelines and results in calibration error, although no errors in "Report DDR".

      Is there any way to solve this problem except hardware update?

      thanks, regards.

      • BoonT_Intel's avatar
        BoonT_Intel
        Icon for Frequent Contributor rankFrequent Contributor
        6 years ago

        Hi,

        Basically we need to follow the board design guideline to get the calibration pass.

        for now, I think you can try to reduce the frequency of the interface.

  • BoonT_Intel's avatar
    BoonT_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago

    Hi Sorry for late,

    I remember I replied to you few days ago but unsure why the note is not sticky.

    Basically there is no other way to fix the hardware issue. but I can suggest you give a try on reducing the frequency to half of current interface frequency and see if the calibration pass.

  • BoonT_Intel's avatar
    BoonT_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago

    Hi Sorry for late,

    I remember I replied to you few days ago but unsure why the note is not sticky.

    Basically there is no other way to fix the hardware issue. but I can suggest you give a try on reducing the frequency to half of current interface frequency and see if the calibration pass.
