Asynchronous FIFO and discontinuous write clock

Question

Hello,The FPGA is a Cyclone 10LP (10CL016YU256I7G).The FIFO is configured as separate write and read clocks, it is 32 words deep.I have a design where the write clock is discontinuous. I have a difference between simulation and hardware behavior. In fact, all works great in simulation. However, it does not work as expected in hardware. I suppose that simulation model is not accurate with the real hardware.What I observe, when I write the four words (full and empty signals are useless as I have another way of knowing how many words have been written), the first read is always 0 and the fourth read give me the penultimate word.So, question is : can we use this asynchronous FIFO with a discontinuous write clock ?Many thanks in advance for the help.Steve

steve-534b46 · Answer

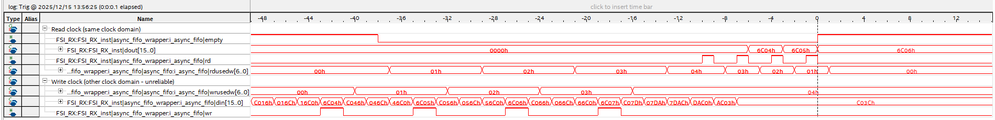

Just some comment about SignalTap screenshot :

empty signal works as excepted
dout is wrong, after first read I get 0x0000 and 0x6C04 is excepted, after second read I get 0x6C04 and 0x6C05 is excepted
rd signal works as excepted
the value of din are 0x6C04 on first write, 0x6C05 on second write, 0x6C06 on third write and 0x6C07 on last write
wr seems to work as excepted

The FIFO is 128 word deep.

There are no resync FF on asynchronous reset.

Thanks for reading

Steve

steve-534b46 · Answer

And most importantly, where did the code 0x6C07 go?

shengn_altera · Answer

Could you provide the simulation as well?
Possible attach both the simulation and signal tap waveform for clearer view?

shengn_altera · Answer

Any further update? Does the problem resolved?
Could you attach both simulation and stp waveform for comparison
