10M16DCU324I7G package

Hello,

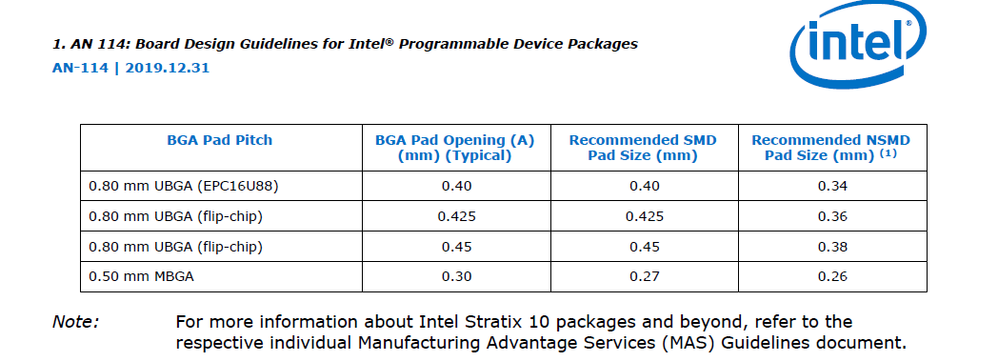

How can I know if 10M16DCU324I7G package belongs to which one in below table?

7 Replies

  • XQSHEN's avatar
    XQSHEN
    Icon for Occasional Contributor rankOccasional Contributor
    5 years ago

    Thanks, so I should set PCB solder pad size = 0.34, solder mask = 0.4, right?

    • AminT_Intel's avatar
      AminT_Intel
      Icon for Regular Contributor rankRegular Contributor
      5 years ago

      Hello,

      Please follow the recommended pad size on of your device from the table.

      Thanks

      • XQSHEN's avatar
        XQSHEN
        Icon for Occasional Contributor rankOccasional Contributor
        5 years ago

        Is my understanding of the table correct?

        set PCB solder pad size = 0.34, solder mask = 0.4

  • AminT_Intel's avatar
    AminT_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hello,

    OPN: 10M16DCU324I7G

    Package Type: U

    Package Code: 324

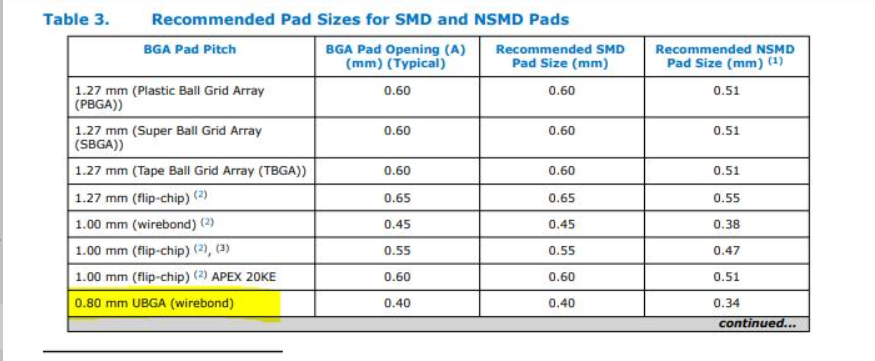

    From Altera Device Package Information they are 324-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond. Thus, they are 0.70mm UBGA (wirebond) from Table 3.

    Thanks

    • AminT_Intel's avatar
      AminT_Intel
      Icon for Regular Contributor rankRegular Contributor
      5 years ago

      Hello,

      Sorry there was a typo. It was 0.80 mm not 0.70 mm
