Gouri
New Contributor
New ContributorOn chip flash memory not updating avmm_data_readvalid signal in Read operation
- With respect above document of read write operation in On chip flash UFM IP written as below 2 files NVM_top.v & NVM_Read_write.v
- Using max10m16 FPGA

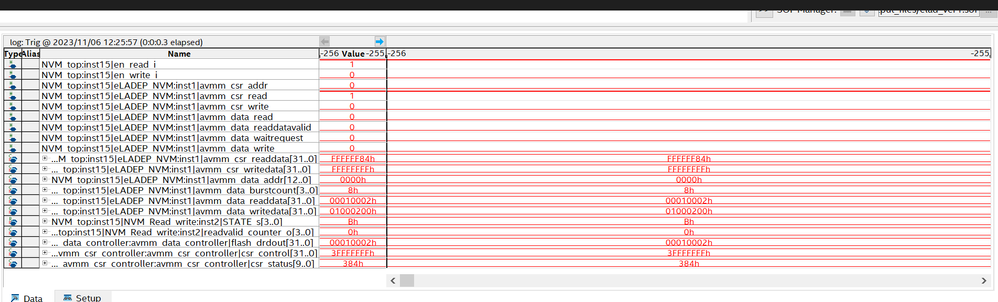

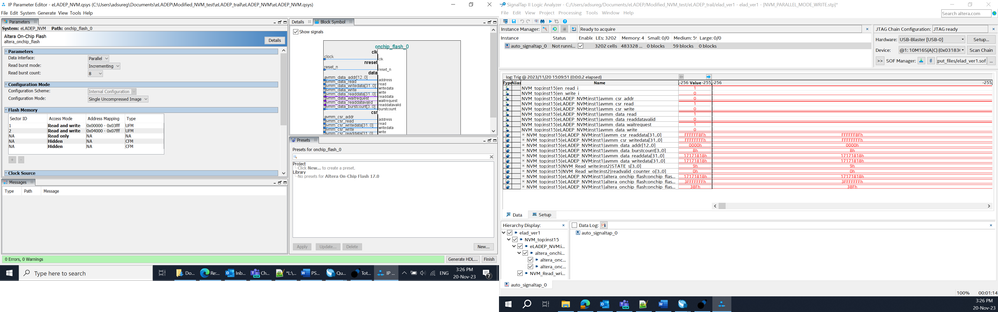

- still facing error during read operation in signal tap that IP not giving AVMM_DATA_READVALIED signal
NVM_top.v
library ieee;
use ieee.numeric_std.all;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
use ieee.std_logic_1164.all;
entity NVM_top is
port(
clock_20mhz_i : in std_logic;
reset_ni : in std_logic;
en_read_i : in STD_LOGIC;
en_write_i : in STD_LOGIC;
data_write_i : in STD_LOGIC_VECTOR(31 DOWNTO 0);
avmm_data_readdata_o : out std_logic_vector(31 downto 0)
);
end entity;
architecture arch of NVM_top is
component eLADEP_NVM
port (
clock : in std_logic := '0'; -- clk.clk
avmm_csr_addr : in std_logic := '0'; -- csr.address
avmm_csr_read : in std_logic := '0'; -- .read
avmm_csr_writedata : in std_logic_vector(31 downto 0) := (others => '0'); -- .writedata
avmm_csr_write : in std_logic := '0'; -- .write
avmm_csr_readdata : out std_logic_vector(31 downto 0); -- .readdata
avmm_data_addr : in std_logic_vector(12 downto 0) := (others => '0'); -- data.address
avmm_data_read : in std_logic := '0'; -- .read
avmm_data_writedata : in std_logic_vector(31 downto 0) := (others => '0'); -- .writedata
avmm_data_write : in std_logic := '0'; -- .write
avmm_data_readdata : out std_logic_vector(31 downto 0); -- .readdata
avmm_data_waitrequest : out std_logic; -- .waitrequest
avmm_data_readdatavalid : out std_logic; -- .readdatavalid
avmm_data_burstcount : in std_logic_vector(3 downto 0) := (others => '0'); -- .burstcount
reset_n : in std_logic := '0' -- nreset.reset_n
);
end component;
component NVM_Read_write is
port(
clock_20mhz_i : in std_logic;
reset_ni : in std_logic;
csr_readdata_i : in STD_LOGIC_VECTOR(31 DOWNTO 0);
waitrequest_i : in STD_LOGIC;
readvalid_i : in STD_LOGIC;
en_read_i : in STD_LOGIC;
en_write_i : in STD_LOGIC;
data_write_i : in STD_LOGIC_VECTOR(31 DOWNTO 0);
csr_addr_o : OUT STD_LOGIC;
csr_writedata_o : OUT STD_LOGIC_VECTOR(31 DOWNTO 0);
csr_write_o : OUT STD_LOGIC;
csr_read_o : OUT STD_LOGIC;
data_addr_o : OUT STD_LOGIC_VECTOR(12 DOWNTO 0);
data_writedata_o : OUT STD_LOGIC_VECTOR(31 DOWNTO 0);
data_write_o : OUT STD_LOGIC;
data_read_o : OUT STD_LOGIC;
readvalid_counter_o : OUT STD_LOGIC_VECTOR(3 DOWNTO 0);
burstcount_o : OUT STD_LOGIC_VECTOR(3 DOWNTO 0)
);
end component;
signal avmm_csr_readdata_s : std_logic_vector(31 downto 0); -- .readdata
signal avmm_data_readdata_s : std_logic_vector(31 downto 0); -- .readdata
signal avmm_data_waitrequest_s : std_logic; -- .waitrequest
signal avmm_data_readdatavalid_s : std_logic; -- .readdatavalid
SIGNAL csr_readdata_s : std_logic_vector (31 downto 0);
SIGNAL waitrequest_s : STD_LOGIC;
SIGNAL readvalid_s : STD_LOGIC;
--SIGNAL en_read_s : STD_LOGIC;
--SIGNAL en_write_s : STD_LOGIC;
SIGNAL csr_addr_s : STD_LOGIC;
SIGNAL csr_writedata_s : std_logic_vector (31 downto 0);
SIGNAL csr_write_s : STD_LOGIC;
SIGNAL csr_read_s : STD_LOGIC;
SIGNAL data_addr_s : std_logic_vector (12 downto 0);
SIGNAL data_writedata_s : std_logic_vector (31 downto 0);
SIGNAL data_write_s : STD_LOGIC;
SIGNAL data_read_s : STD_LOGIC;
SIGNAL readvalid_counter_s : std_logic_vector (3 downto 0);
SIGNAL burstcount_s : std_logic_vector (3 downto 0);
begin
inst1: eLADEP_NVM
PORT MAP(
clock => clock_20mhz_i, -- clk.clk
avmm_csr_addr => csr_addr_s, -- csr.address
avmm_csr_read => csr_read_s, -- .read
avmm_csr_writedata => csr_writedata_s, -- .writedata
avmm_csr_write => csr_write_s, -- .write
avmm_csr_readdata => avmm_csr_readdata_s, -- .readdata
avmm_data_addr => data_addr_s, -- data.address
avmm_data_read => data_read_s, -- .read
avmm_data_writedata => data_writedata_s, -- .writedata
avmm_data_write => data_write_s, -- .write
avmm_data_readdata => avmm_data_readdata_s,-- .readdata
avmm_data_waitrequest => avmm_data_waitrequest_s, -- .waitrequest
avmm_data_readdatavalid => avmm_data_readdatavalid_s, -- .readdatavalid
avmm_data_burstcount => burstcount_s,-- .burstcount
reset_n => reset_ni -- nreset.reset_n
);
inst2: NVM_Read_write
PORT MAP(
clock_20mhz_i => clock_20mhz_i,
reset_ni => reset_ni ,
csr_readdata_i => avmm_csr_readdata_s ,
waitrequest_i => avmm_data_waitrequest_s ,
readvalid_i => avmm_data_readdatavalid_s ,
en_read_i => en_read_i ,
en_write_i => en_write_i ,
data_write_i => data_write_i ,
csr_addr_o => csr_addr_s,
csr_writedata_o => csr_writedata_s,
csr_write_o => csr_write_s,
csr_read_o => csr_read_s,
data_addr_o => data_addr_s,
data_writedata_o => data_writedata_s,
data_write_o => data_write_s,
data_read_o => data_read_s,
readvalid_counter_o => readvalid_counter_s,
burstcount_o => burstcount_s
);
avmm_data_readdata_o <= avmm_data_readdata_s;
END ARCHITECTURE arch;
NVM_Read_write.v
library ieee;
use ieee.numeric_std.all;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
use ieee.std_logic_1164.all;
entity NVM_Read_write is
port(
clock_20mhz_i : in std_logic;
reset_ni : in std_logic;
csr_readdata_i : in STD_LOGIC_VECTOR(31 DOWNTO 0);
waitrequest_i : in STD_LOGIC;
readvalid_i : in STD_LOGIC;
en_read_i : in STD_LOGIC;
en_write_i : in STD_LOGIC;
data_write_i : in STD_LOGIC_VECTOR(31 DOWNTO 0); -- GA
csr_addr_o : OUT STD_LOGIC;
csr_writedata_o : OUT STD_LOGIC_VECTOR(31 DOWNTO 0);
csr_write_o : OUT STD_LOGIC;
csr_read_o : OUT STD_LOGIC;
data_addr_o : OUT STD_LOGIC_VECTOR(12 DOWNTO 0);
data_writedata_o : OUT STD_LOGIC_VECTOR(31 DOWNTO 0);
data_write_o : OUT STD_LOGIC;
data_read_o : OUT STD_LOGIC;
readvalid_counter_o : OUT STD_LOGIC_VECTOR(3 DOWNTO 0);
burstcount_o : OUT STD_LOGIC_VECTOR(3 DOWNTO 0)
);
end entity;
architecture arch of NVM_Read_write is
--type STATES is (STATE_RESET, STATE_DISABLE_WP, STATE_WR_DATA, STATE_WR_WAITREQ, STATE_CHK_STATUS, STATE_EN_WP,
-- STATE_RD_DATA, STATE_RD_WAITREQ, STATE_RD_WAIT_RDVALID_HIGH, STATE_RD_WAIT_FINISH, STATE_INC_ADDR,
-- STATE_STOP_RD);
--signal STATE ,NEXT_STATE : STATES;
SIGNAL STATE_s : STD_LOGIC_VECTOR(3 DOWNTO 0);
SIGNAL NEXT_STATE_s : STD_LOGIC_VECTOR(3 DOWNTO 0);
SIGNAL addr_counter_s : unsigned(31 DOWNTO 0);
SIGNAL data_addr_s : STD_LOGIC_VECTOR(12 DOWNTO 0);
SIGNAL readvalid_counter_s : STD_LOGIC_VECTOR(3 DOWNTO 0);
CONSTANT STATE_RESET_c : STD_LOGIC_VECTOR(3 DOWNTO 0) := "0000"; -- Reset
CONSTANT STATE_DISABLE_WP_c : STD_LOGIC_VECTOR(3 DOWNTO 0) := "0001"; -- Disable write protection
CONSTANT STATE_WR_DATA_c : STD_LOGIC_VECTOR(3 DOWNTO 0) := "0010"; -- write data up to address#256
CONSTANT STATE_WR_WAITREQ_c : STD_LOGIC_VECTOR(3 DOWNTO 0) := "0011"; -- increase the address counter only when waitrequest goes low
CONSTANT STATE_CHK_STATUS_c : STD_LOGIC_VECTOR(3 DOWNTO 0) := "0100"; -- check status register to confirm write is successful
CONSTANT STATE_EN_WP_c : STD_LOGIC_VECTOR(3 DOWNTO 0) := "0101"; -- enable back write protection
CONSTANT STATE_RD_DATA_c : STD_LOGIC_VECTOR(3 DOWNTO 0) := "0110"; -- read data
CONSTANT STATE_RD_WAITREQ_c : STD_LOGIC_VECTOR(3 DOWNTO 0) := "0111"; -- if waitrequest goes high, check readvalid signal
CONSTANT STATE_RD_WAIT_RDVALID_HIGH_c: STD_LOGIC_VECTOR(3 DOWNTO 0) := "1000"; -- if readvalid signal goes high, check readvalid counter
CONSTANT STATE_RD_WAIT_FINISH_c: STD_LOGIC_VECTOR(3 DOWNTO 0) := "1001"; -- check if readvalid counter reached 8
CONSTANT STATE_INC_ADDR_c : STD_LOGIC_VECTOR(3 DOWNTO 0) := "1010"; -- increase the addrress by 8 since the burstcount is set to 8 for burst read
CONSTANT STATE_STOP_RD_c : STD_LOGIC_VECTOR(3 DOWNTO 0) := "1011"; -- stop reading if addrress reach 256
begin
data_addr_o<= data_addr_s;
readvalid_counter_o<= readvalid_counter_s;
process (reset_ni, clock_20mhz_i) is
begin
if reset_ni='0' then
STATE_s <= STATE_RESET_c;
elsif rising_edge(clock_20mhz_i) then
STATE_s <= NEXT_STATE_s;
end if;
end process;
process (reset_ni, clock_20mhz_i) is
begin
if reset_ni='0' then
data_addr_s <= (others =>'0');
addr_counter_s <= (others =>'0');
csr_addr_o <= '0';
csr_write_o <= '0';
csr_writedata_o <= x"FFFFFFFF";
burstcount_o <= "0000";
elsif rising_edge(clock_20mhz_i) then
case STATE_s is
When STATE_RESET_c =>
data_addr_s <= (others =>'0');
addr_counter_s <= (others =>'0');
csr_addr_o <= '0';
csr_write_o <= '0';
csr_writedata_o <= x"FFFFFFFF";
burstcount_o <= "0000";
data_write_o <= '0';
data_read_o <= '0';
When STATE_DISABLE_WP_c =>
csr_addr_o <= '1';
csr_write_o <= '1';
csr_writedata_o <= x"FC7FFFFF";
--csr_writedata_o <= x"FC2FFFFF";
burstcount_o <= "0001";
When STATE_WR_DATA_c =>
csr_addr_o <= '0';
csr_write_o <= '0';
csr_writedata_o <= x"FFFFFFFF";
data_addr_s <= std_logic_vector(unsigned(addr_counter_s(12 downto 0)));
data_write_o <= '1';
data_writedata_o <= data_write_i;
When STATE_WR_WAITREQ_c =>
if waitrequest_i ='0' then
addr_counter_s <= addr_counter_s + 1;
data_write_o <= '0';
end if;
When STATE_CHK_STATUS_c =>
data_write_o <= '0';
csr_addr_o <= '0';
csr_read_o <= '1';
When STATE_EN_WP_c =>
csr_addr_o <= '1';
csr_write_o <= '1';
csr_writedata_o <= x"FFFFFFFF";
data_addr_s <= "0000000000000";
When STATE_RD_DATA_c =>
data_read_o <= '1';
burstcount_o <= "1000";
When STATE_RD_WAITREQ_c =>
When STATE_RD_WAIT_RDVALID_HIGH_c =>
data_read_o <= '0';
When STATE_RD_WAIT_FINISH_c =>
When STATE_INC_ADDR_c =>
data_addr_s <= data_addr_s + "0000000001000";
When STATE_STOP_RD_c =>
data_read_o <= '0';
data_addr_s <= (others => '0');
when others =>
NULL;
end case;
end if;
end process;
process (en_read_i,en_write_i) is
begin
if (en_read_i='0') and (en_write_i='0') then
NEXT_STATE_s <= STATE_RESET_c;
else
case STATE_s is
When STATE_RESET_c =>
if en_write_i ='1' then
NEXT_STATE_s <= STATE_DISABLE_WP_c;
else
if en_read_i='1' then
NEXT_STATE_s <= STATE_RD_DATA_c;
else
NEXT_STATE_s <= STATE_RESET_c;
end if;
end if;
When STATE_DISABLE_WP_c =>
NEXT_STATE_s <= STATE_WR_DATA_c ;
When STATE_WR_DATA_c =>
NEXT_STATE_s <= STATE_WR_WAITREQ_c;
When STATE_WR_WAITREQ_c =>
if waitrequest_i = '0' then
--if addr_counter_s < x"00000100" then
if addr_counter_s < x"00000005" then
NEXT_STATE_s <= STATE_WR_DATA_c;
else
NEXT_STATE_s <= STATE_CHK_STATUS_c;
end if;
else
NEXT_STATE_s <= STATE_WR_WAITREQ_c;
end if;
When STATE_CHK_STATUS_c =>
NEXT_STATE_s <= STATE_EN_WP_c;
When STATE_EN_WP_c =>
if csr_readdata_i(3) = '1' then
NEXT_STATE_s <= STATE_RESET_c;
else
NEXT_STATE_s <= STATE_EN_WP_c;
end if;
When STATE_RD_DATA_c =>
--if data_addr_s < "0000100000000" then
if data_addr_s = "0000000000100" then
NEXT_STATE_s <= STATE_RD_WAITREQ_c;
else
NEXT_STATE_s <= STATE_STOP_RD_c;
end if;
When STATE_RD_WAITREQ_c =>
if waitrequest_i = '1' then
--if waitrequest_i = '0' then
NEXT_STATE_s <= STATE_RD_WAIT_RDVALID_HIGH_c;
else
NEXT_STATE_s <= STATE_RD_WAITREQ_c;
end if;
When STATE_RD_WAIT_RDVALID_HIGH_c =>
if readvalid_i = '1' then
--if readvalid_i = '0' then
NEXT_STATE_s <= STATE_RD_WAIT_FINISH_c;
else
NEXT_STATE_s <= STATE_RD_WAIT_RDVALID_HIGH_c;
end if;
When STATE_RD_WAIT_FINISH_c =>
if readvalid_counter_s = "1000" then
NEXT_STATE_s <= STATE_INC_ADDR_c;
else
NEXT_STATE_s <= STATE_RD_WAIT_FINISH_c;
end if;
When STATE_INC_ADDR_c =>
NEXT_STATE_s <= STATE_RD_DATA_c;
When STATE_STOP_RD_c =>
NEXT_STATE_s <= STATE_STOP_RD_c;
when others =>
NULL;
end case;
end if;
end process;
process (clock_20mhz_i ) is
begin
if rising_edge(clock_20mhz_i ) then
if en_read_i ='0' then
readvalid_counter_s <= "0000";
elsif en_read_i ='1' then
if readvalid_i = '1' then
--if readvalid_i = '0' then
readvalid_counter_s <= readvalid_counter_s + "0001";
elsif readvalid_counter_s = "1000" then ---hex8
readvalid_counter_s <= "0000";
end if;
end if;
end if;
end process;
end architecture;
