FPGA- SDC creation for 0.00039MHz clk

I have to create the sdc description for 0.00039MHz which was generated using counter logic.

FPGA_CLK is 26 MHz, from that i would like to specify the clk value in my sdc file

i am trying to give this clk using the below command:

create_generated_clock -divide_by 65536 -source [get_ports FPGA_CLK] -name Clkprescaler:Clockprescaler|divider[15] [get_registers {Clkprescaler:Clockprescaler|divider[15]}]

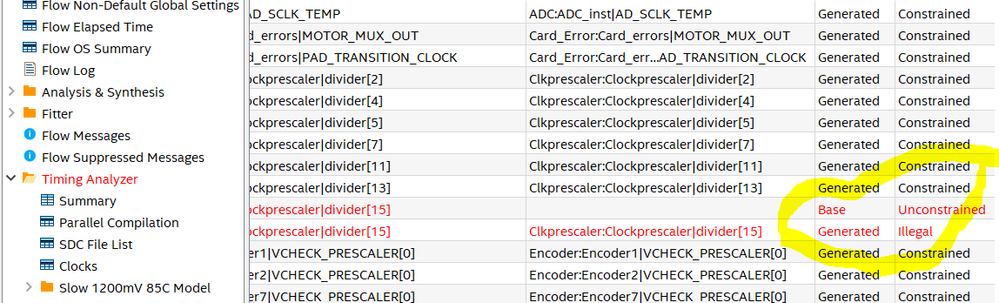

But it is not taken by the tool, its still showing the error as unconstrainted.

any suggestions?

Re

  • Instead of using a slow clock for your sensor detection module, you update it only when clk_en is high:


    always @(posedge clk or negedge reset_n) begin

    if (!reset_n) begin

    sensor_state <= 0;

    end else if (clk_en) begin

    sensor_state <= sensor_input; // Sample the sensor input at 390 Hz

    end

    end


    If you need to detect a rising edge of the sensor input, you can do:

    reg sensor_prev; always @(posedge clk or negedge reset_n) begin if (!reset_n) begin sensor_prev <= 0; end else if (clk_en) begin sensor_prev <= sensor_input; end end wire sensor_rising_edge = clk_en & sensor_input & ~sensor_prev;


    This will trigger a pulse only when the sensor input rises at 390 Hz.




13 Replies

  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor
    Hi,
    if timing analysis detects an incorrect or not implementable constraint, it adds a message to timing analysis report. It should explain why your generated clock isn't accepted.

    I wonder what's the purpose of a 390 Hz clock in your design. In most cases, we'll use a clock enable in the respective master clock (26 MHz) domain instead, keeping a single synchronous clock domain.
    • abinaya_P's avatar
      abinaya_P
      Icon for New Contributor rankNew Contributor

      this value is used for some slower clk sensor rise fall detection. I need three slow clocks

      CLKBY4096 -- 0.00634MHz
      CLKBY16384 -- 0.00158MHz
      CLKBY65536 -- 0.00039MHz
      Also in sta report i am not seeing these clock values. instead it shows 0.01 MHz, 0.0MHz and the last one is not taking.
      How do i give the constraint for these small clk values?
      Regards,
      Abinaya
  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor

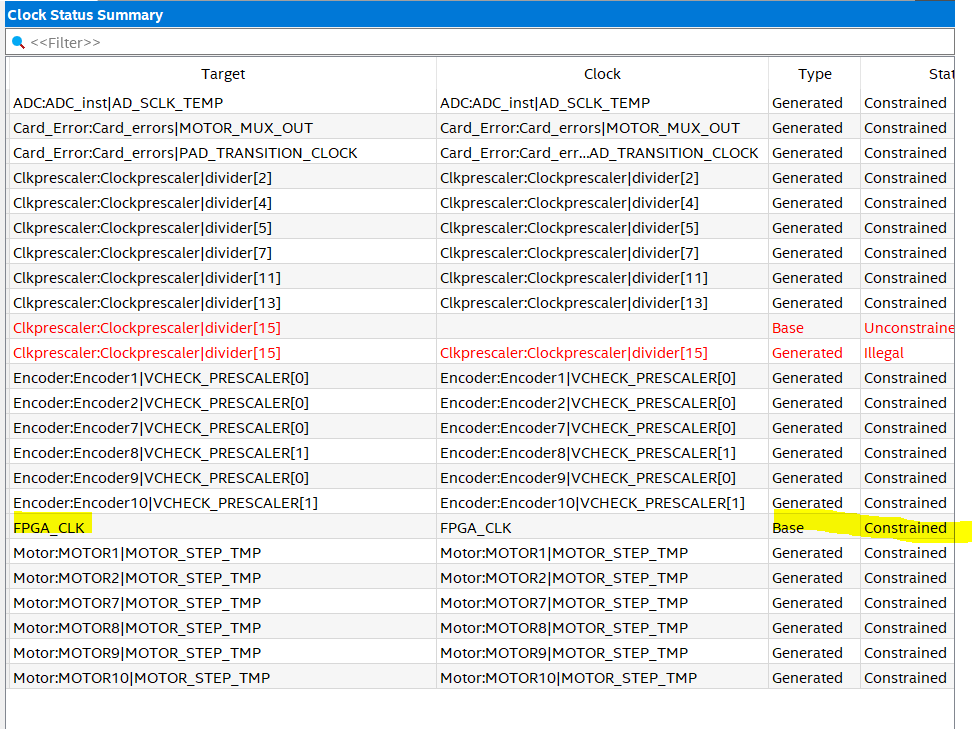

    What does your base create_clock constraint look like? You can't create a generated clock if the base clock it references isn't constrained as well. The report there shows the base clock as unconstrained.

    • abinaya_P's avatar
      abinaya_P
      Icon for New Contributor rankNew Contributor

      base clk is FPGA_CLK which is already constrained.i don't know why the divider[15] is taken as the base type

  • I believe that it is because you are constraining the clock to be too slow that is causing this problem. My suggestion is for you to use clock enable instead:


    Example 1:


    • reg [16:0] counter; reg clk_en; always @(posedge clk or negedge reset_n) begin if (!reset_n) begin counter <= 0; clk_en <= 0; end else if (counter == 127999) begin // Divide 50 MHz to 390 Hz counter <= 0; clk_en <= 1; end else begin counter <= counter + 1; clk_en <= 0; end end. Adjust 127999 if using a different base clock frequency.

    Example 2:


    Use the generated clk_en to enable the logic that would typically run on the 390 Hz clock:

    verilog

    always @(posedge clk or negedge reset_n) begin if (!reset_n) begin slow_logic_state <= 0; end else if (clk_en) begin slow_logic_state <= next_slow_logic_state; end end


    Thanks




    • abinaya_P's avatar
      abinaya_P
      Icon for New Contributor rankNew Contributor

      In my design, the slower clock is used as clock for one module, in this rising edge we are detecting the sensor input.

      if we use the clk_en method how do we use this signal as clock?

      Regards,

      Abinaya

  • A 0.00039 MHz clock translates to a period of approximately 2.56 milliseconds. This could lead to:

    • Misinterpretation of timing constraints: The design tools may allocate unnecessarily large timing slacks, obscuring critical path analysis.
    • Difficulties ensuring timing closure for faster clocks in the design.



  • Instead of using a slow clock for your sensor detection module, you update it only when clk_en is high:


    always @(posedge clk or negedge reset_n) begin

    if (!reset_n) begin

    sensor_state <= 0;

    end else if (clk_en) begin

    sensor_state <= sensor_input; // Sample the sensor input at 390 Hz

    end

    end


    If you need to detect a rising edge of the sensor input, you can do:

    reg sensor_prev; always @(posedge clk or negedge reset_n) begin if (!reset_n) begin sensor_prev <= 0; end else if (clk_en) begin sensor_prev <= sensor_input; end end wire sensor_rising_edge = clk_en & sensor_input & ~sensor_prev;


    This will trigger a pulse only when the sensor input rises at 390 Hz.




    • abinaya_P's avatar
      abinaya_P
      Icon for New Contributor rankNew Contributor

      No, I have used the enable method. Thanks for the response
