Executing a application/executable file on customized boot image for DE1SOC board

Hello,

I'm trying to execute a simple led switch application on customized boot image.

PFA screenshot of the error received.

Can anyone help me diagnose what the issue is?

Thanks,

snehal_p

  • tehjingy_Altera's avatar
    tehjingy_Altera
    3 years ago

    Hi

    I have tried out your zImage and able to run the led application successfully.

    Please find the screenshot below:

    Did you flash the FPGA configuration before booting into the linux environment?

    As for the fitter error, you will need to run both of the TCL script below (located:soc_system\synthesis\submodules):

    hps_sdram_p0_parameters.tcl

    hps_sdram_p0_pin_assignments.tcl

    Regards

    Jingyang, Teh

54 Replies

Show More
    • snehal_p's avatar
      snehal_p
      Icon for Contributor rankContributor
      3 years ago

      Hi Jingyang,

      PFA error screenshot while compiling c program. Can you please help me with the library files for rtcds3231 and i2c, also the steps to use .h files

      Thanks,

      snehal_p

    • snehal_p's avatar
      snehal_p
      Icon for Contributor rankContributor
      3 years ago

      Hi Jingyang,

      PFA error screenshot while compiling c program. Can you please help me with the library files for rtcds3231 and i2c, also the steps to use .h files. I ge similar error when I try to compile demonstration code for gsensor.

      Thanks,

      snehal_p

  • tehjingy_Altera's avatar
    tehjingy_Altera
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi Snehal

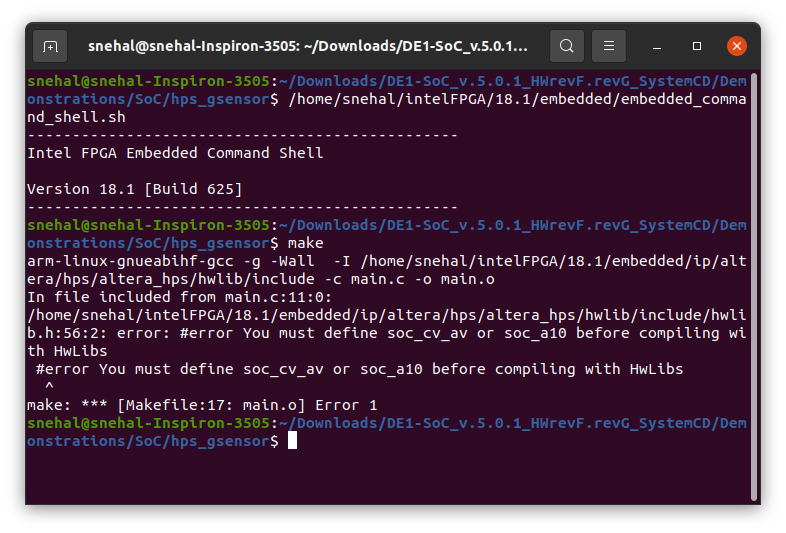

    Could you try adding the following parameter into your make file to solve the define error:
