Warning Msg in system console "could not resgister IService packet"

Hi, I have a question.

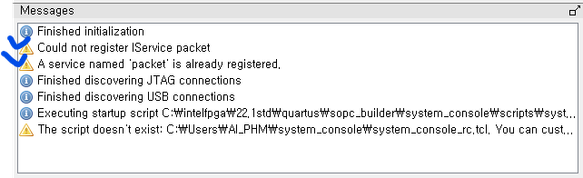

In system console, there were 2 kind of warning messages in Messages field.

Warning messages are as below.

1. Could ot register IService packet

2. A service named 'packet' is already registered.

Do you let me know why did warning messages occurred?

Alos when I ran .tcl file in system console, there was an error message "Driver is not an open data_pattern_generator service"

Is this error message related to above warning message?

4 Replies

  • ShengN_altera's avatar
    ShengN_altera
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    Hi,

    Those warnings probably are not the root cause. I encountered same warnings as well but don't have problem at performing system console check image below.

    I follow the tcl script (main.tcl) attached below for your reference in this example design https://www.intel.com/content/www/us/en/docs/programmable/683758/21-3-19-2-0/hardware-test-for-system-console-control.html

    Make sure you have correct $master_index. May be can try to run simple commands below to check whether the problem still exist:

    set master_path [ lindex [ get_service_paths master ] $master_index ]

    open_service master $master_path

    master_write_32 $master_path

    Thanks,

    Best Regards,

    Sheng

    • DeadEnd's avatar
      DeadEnd
      Icon for New Contributor rankNew Contributor
      2 years ago

      Thank you for your help,

      I have done HW_Test as you mentioned but.... result was failed...

      So, what could be causing the HW issue? could you let me know how can I fix this error?

      or do you need more information about HW?

      Again, thank you so much for your help.

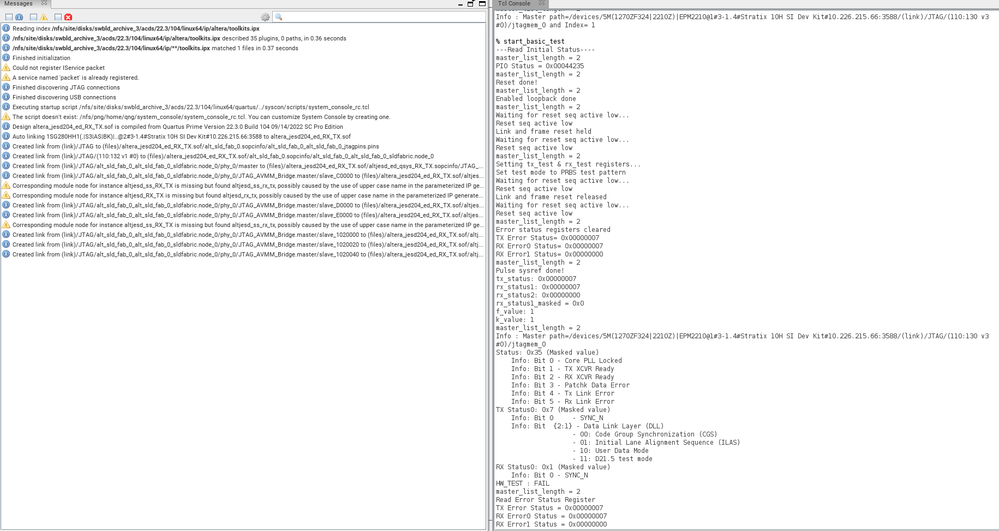

      Below is the log in Tcl console.

      ======================================================================================

      % get_service_paths master
      {/devices/5SGXEA7H(1|2|2ES|3|3ES)|..@1#USB-0/(link)/JTAG/(110:132 v1 #0)/phy_0/master}

      {/devices/5SGXEA7H(1|2|2ES|3|3ES)|..@1#USB-0/(link)/JTAG/(70:34 v3 #0)/nios2_0}


      % source main.tcl
      Info : {/devices/5SGXEA7H(1|2|2ES|3|3ES)|..@1#USB-0/(link)/JTAG/(110:132 v1 #0)/phy_0/master} {/devices/5SGXEA7H(1|2|2ES|3|3ES)|..@1#USB-0/(link)/JTAG/(70:34 v3 #0)/nios2_0}
      master_list_length = 2

      --- Initialization (Check master path) ---
      master_list_length = 2
      Info : Master path=/devices/5SGXEA7H(1|2|2ES|3|3ES)|..@1#USB-0/(link)/JTAG/(70:34 v3 #0)/nios2_0 and Index= 1

      % start_basic_test
      ---Read Initial Status----
      master_list_length = 2
      PIO Status = 0x10c00326
      master_list_length = 2
      Reset done!
      master_list_length = 2
      Enabled loopback done
      master_list_length = 2
      Waiting for reset seq active low...
      Reset seq active low
      Link and frame reset held
      Waiting for reset seq active low...
      Reset seq active low
      master_list_length = 2
      Setting tx_test & rx_test registers...
      Set test mode to PRBS test pattern
      Waiting for reset seq active low...
      Reset seq active low
      Link and frame reset released
      Waiting for reset seq active low...
      Reset seq active low
      master_list_length = 2
      Error status registers cleared
      TX Error Status= 0x000000ff
      RX Error0 Status= 0x000000ff
      RX Error1 Status= 0x000003ff
      master_list_length = 2
      Pulse sysref done!
      tx_status: 0x000000ff
      rx_status1: 0x000000ff
      rx_status2: 0x000003ff
      rx_status1_masked = 0x1
      f_value: 3
      k_value: 1
      rbd_count: 254
      offset = 252
      master_list_length = 2
      Reset done!
      master_list_length = 2
      Waiting for reset seq active low...
      Reset seq active low
      Link and frame reset held
      Waiting for reset seq active low...
      Reset seq active low
      master_list_length = 2
      Setting tx_test & rx_test registers...
      Set test mode to PRBS test pattern
      master_list_length = 2
      New RBD offset = 254
      Waiting for reset seq active low...
      Reset seq active low
      Link and frame reset released
      Waiting for reset seq active low...
      Reset seq active low
      master_list_length = 2
      Error status registers cleared
      TX Error Status= 0x000000ff
      RX Error0 Status= 0x000000ff
      RX Error1 Status= 0x000003ff
      master_list_length = 2
      Pulse sysref done!
      tx_status: 0x000000ff
      rx_status1: 0x000000ff
      rx_status2: 0x000003ff
      rx_status1_masked = 0x1
      master_list_length = 2
      Info : Master path=/devices/5SGXEA7H(1|2|2ES|3|3ES)|..@1#USB-0/(link)/JTAG/(70:34 v3 #0)/nios2_0
      Status: 0x26 (Masked value)
      Info: Bit 0 - Core PLL Locked
      Info: Bit 1 - TX XCVR Ready
      Info: Bit 2 - RX XCVR Ready
      Info: Bit 3 - Patchk Data Error
      Info: Bit 4 - Tx Link Error
      Info: Bit 5 - Rx Link Error
      TX Status0: 0x4 (Masked value)
      Info: Bit 0 - SYNC_N
      Info: Bit {2:1} - Data Link Layer (DLL)
      - 00: Code Group Synchronization (CGS)
      - 01: Initial Lane Alignment Sequence (ILAS)
      - 10: User Data Mode
      - 11: D21.5 test mode
      RX Status0: 0x0 (Masked value)
      Info: Bit 0 - SYNC_N
      HW_TEST : FAIL
      master_list_length = 2
      Read Error Status Register
      TX Error Status = 0x000000ff
      RX Error0 Status = 0x000000ff
      RX Error1 Status = 0x000003ff

      %
