Verilog: Attempting to make a signal high for 5 clock cycles and then remain low

Hello,

I am trying to make the signal called ld_tx_data_scope a value of 1 after the first 5 positive edges and remain high for 5 positive edges and then have it go low and stay low. However, simulating the Verilog code provides this output for ld_tx_data_scope:

As, you can see above the signal remains low.

The Verilog code is shown below:

module test(
clk_50,
ld_tx_data_scope

);

input clk_50;
reg ld_tx_data;
output reg ld_tx_data_scope;
reg tx_enable;
reg [7:0] my_tx_data;
reg rx_enable;
reg [16:0] ld_tx_counter_debug;
reg ld_tx_toggle;
reg [16:0] ld_tx_data_scope_uptime;


initial
    begin
    tx_enable <= 1;
    rx_enable <= 0;
    my_tx_data <= 8'b01010101;
    end




always @* begin
    ld_tx_data_scope = ld_tx_data;
end



always@(posedge clk_50)

 begin
 ld_tx_counter_debug <= ld_tx_counter_debug + 1;
 //rx_counter <= rx_counter + 1;

 if(ld_tx_counter_debug == 5 && ld_tx_toggle == 0) //5000
 begin
    ld_tx_counter_debug <= 0;
    ld_tx_data <= 1;
    ld_tx_toggle = 1;
 end

 if (ld_tx_toggle == 1)
 begin
 ld_tx_data_scope_uptime = ld_tx_data_scope_uptime + 1;

    if (ld_tx_data_scope_uptime == 5)//100
    begin
    ld_tx_data <= 0;
    ld_tx_data_scope_uptime = 0;
    end

 end

end



endmodule

I have also attached the project files. Any help is appreciated. Thanks

  • Hi,

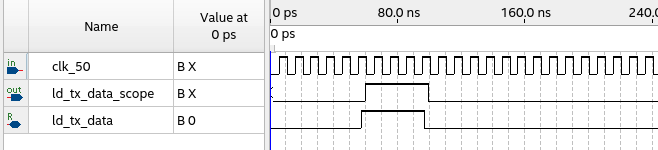

    Because you haven't initialize the reg ld_tx_toggle. If you had initialized like this reg ld_tx_toggle = 1'b0; You'll get correct simulation like pic below:

    Thanks,

    Best regards,

    Sheng

    p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer.

4 Replies

  • Hi Frank,

    There are numerous problems in your Verilog code, but this is not an appropriate place for this query. This forum is meant for discussions on issues pertaining to Quartus software. The problems you're having are with basic Verilog programming, having nothing to do with Quartus in particular. I'd suggest you begin with a good primer course or book to learn the fundamentals of RTL design and the Verilog language.

    -Roee

  • ShengN_altera's avatar
    ShengN_altera
    Icon for Super Contributor rankSuper Contributor

    Hi,

    Because you haven't initialize the reg ld_tx_toggle. If you had initialized like this reg ld_tx_toggle = 1'b0; You'll get correct simulation like pic below:

    Thanks,

    Best regards,

    Sheng

    p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer.
