Time-to-Digital Converter (TDC) implementation

hello,
I am trying to implement a time-to-digital converter in Arria 10 FPGA, the schematic of which I have shown in the attached figure. I have many problems with this circuit because of its optimization by Quartus software.
First of all, in HDL I described an adder to perform "0...0"&start + "1...1" operation. To stop the optimization I had to describe the value "1...1" as a signal with the keep attribute. This makes this signal not directly attached to Vcc but is produced by additional ALM blocks, so it increases the consumption of logic resources. Is it possible to fix this? Note that I have already try to use CARRY_SUM primitive, adder IPs and behavioral description, all with the same results.

Next, an even bigger problem is to connect the output of the adder simultaneously to two corresponding flip-flops. According to documentation, it should be possible in ALM arithmetic mode. However, during compilaion additional "feeders" (buffers implemented in look-up tables) are added which cause implementations of the second flip-flop in another ALM block. In the article [Cyclone10_TDC], the authors stated that they achieved this configuration by using two clock inputs to the ALM (e.g. clk(0) for the first flip-flop and clk(1) for the second one), but in my case it didn't work. I also tried various synthesis attributes, but without success.

In a ChipPlanner I was able to manually set ALM for the desired configuration but how can I save this configuration and use in HDL?

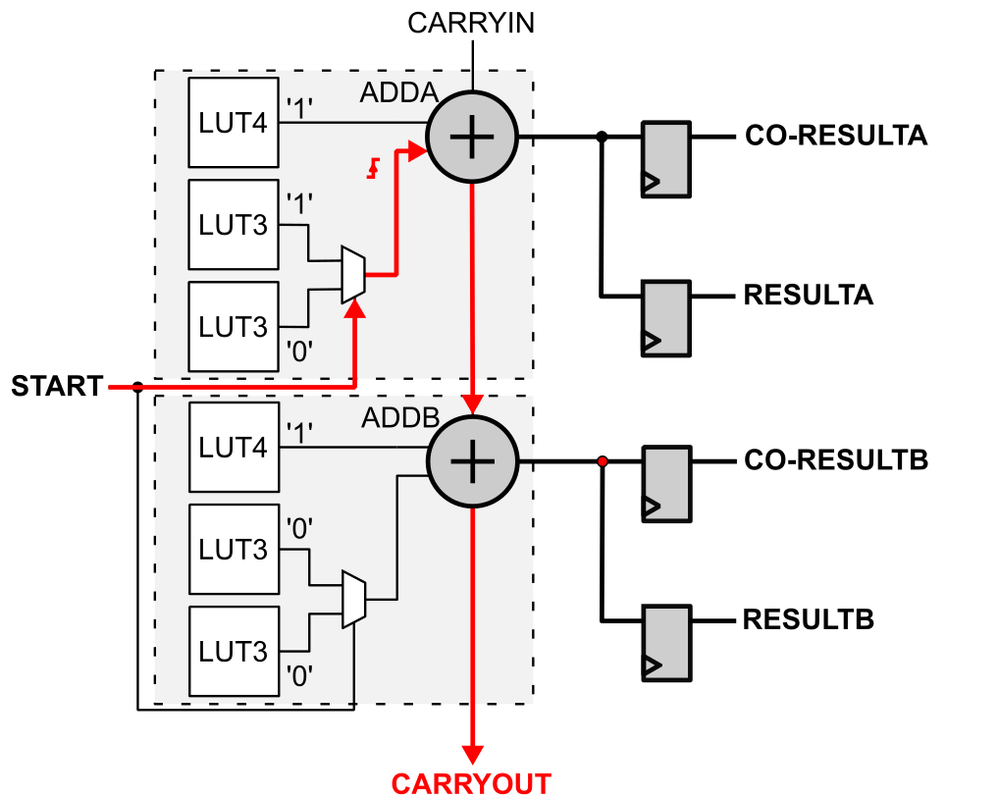

ALM configuration as a TDC with dual-sampling

11 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor

    Can you show your code? It's very hard to picture what is going on without seeing how you are attempting to implement this.

    • kwt1's avatar
      kwt1
      Icon for New Contributor rankNew Contributor

      Circuit description in VHDL is attached. In this version flip-flops are randomly implemented using SDATA input (and SLOAD=1) instead of D input. Then no feeder is requried and both flip-flop can be implemented in half-ALM. However, (1) the signal seems to go out of the ALM and get back and (2) flip-flops with SDATA inputs seems to be randomly selected, I do not control this.




  • For the optimization issue you can try add 'preserve' attribute to the signal to prevent it from being optimized away.


    • kwt1's avatar
      kwt1
      Icon for New Contributor rankNew Contributor

      Thank you for a hint but I'm using 'keep' attribute to avoid optimization. According to the description in a Quartus template, 'keep' should be used for combinationl circuits and 'preserve' for registers. In my case, I care about preserving the fast carry chain in the adder, so combinational circuit. As noted in my original post, 'keep' attribute indeed allows me to implement this circuit but it also causes additional logic to appear to produce fixed logical values for one of the inputs of the adder.

      Overall, I would simply like to get a circuit like the one shown in the Arria 10 documentation describing the ALM arithmetic mode (with two flip-flops connected simultaneously to one output from the adder): https://www.intel.com/content/www/us/en/docs/programmable/683461/current/arithmetic-mode.html.

    • kwt1's avatar
      kwt1
      Icon for New Contributor rankNew Contributor

      Logic lock didn't help because Quartus thought it needed a larger area to locate the circuit. However, I somehow managed the implementation: instead of DFF primitives, I described the register using a process and manually deployed the elements in Chip Planner. After saving the placement and recompiling, the ALM configuration was as expected. The problem of implementing additional ALMs to set a fixed value of '1...1' on one of the inputs remained, but I can live with that.

  • As we do not receive any response from you on the previous question/reply/answer that we have provided. Please login to ‘https://supporttickets.intel.com’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.

  • ShengN_altera's avatar
    ShengN_altera
    Icon for Super Contributor rankSuper Contributor

    Hi,


    Logic lock didn't help because Quartus thought it needed a larger area to locate the circuit. However, I somehow managed the implementation: instead of DFF primitives, I described the register using a process and manually deployed the elements in Chip Planner. After saving the placement and recompiling, the ALM configuration was as expected. The problem of implementing additional ALMs to set a fixed value of '1...1' on one of the inputs remained, but I can live with that.


    As per the message posted before, there's no more concern or consideration on this thread right?


    Thanks,

    Regards,

    Sheng


    • kwt1's avatar
      kwt1
      Icon for New Contributor rankNew Contributor

      Hi Sheng,

      Overall the problem is solved. I am not fully satisfied with additional LUTs needed to set a constant value for one adder's input but this is of minor importance. Thank you!
