Time-to-Digital Converter (TDC) implementation

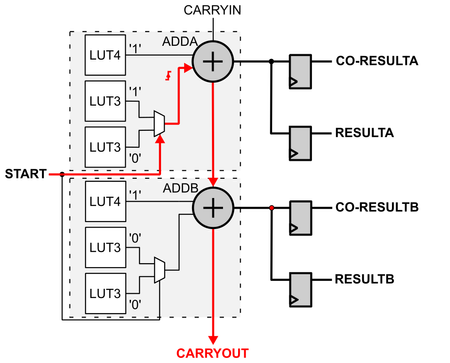

hello, I am trying to implement a time-to-digital converter in Arria 10 FPGA, the schematic of which I have shown in the attached figure. I have many problems with this circuit because of its optimi...
Compilation
sstrell's avatar
sstrell
Icon for Super Contributor rankSuper Contributor
1 year ago

Can you show your code? It's very hard to picture what is going on without seeing how you are attempting to implement this.

kwt1's avatar
kwt1
Icon for New Contributor rankNew Contributor
1 year ago

Circuit description in VHDL is attached. In this version flip-flops are randomly implemented using SDATA input (and SLOAD=1) instead of D input. Then no feeder is requried and both flip-flop can be implemented in half-ALM. However, (1) the signal seems to go out of the ALM and get back and (2) flip-flops with SDATA inputs seems to be randomly selected, I do not control this.
