Simulation yielding different results when changing top-level entity
Hi, I'm sorry if the question is silly but I'm new to quartus.
I have a project called HACK (an attempt to create Nand2Tetris' project in an actual FPGA board). It has the following pertinent files:
halfAdder.vhd
testHalfAdder.vhd
HACK.vhd
testHalfAdder is a testbench that instantiates the halfAdder component and tests it. HACK instantiates halfAdder in a way that doesn't actually make any sense, but just to force it to be compiled for now.
After creating halfAdder.vhd, I created halfFullAdder.vhd and added it to quartus testbenches list via Assignments->Settings->Simulation. I also checked the box to make simulation run automatically after compilation.
If I set halfAdder.vhd to be the top-level entity, everything runs fine and my simulation works. If i then set my top-level entity to be HACK, then the overall compilation works, but the simulation shows only undefined signals and exits with an error.
Am I doing something wrong or is this a bug? If I'm doing something wrong, how to correct it?
Thanks so much for any help.
halfAdder code:
library IEEE; use IEEE.STD_LOGIC_1164.ALL; entity halfAdder is Port ( a : in STD_LOGIC; b : in STD_LOGIC; sum : out STD_LOGIC; carry : out STD_LOGIC ); end halfAdder; architecture Behavioral of halfAdder is begin sum <= a xor b; carry <= a and b; end Behavioral;
testHalfAdder code:
library ieee; use ieee.std_logic_1164.all; use ieee.numeric_std.all; entity testHalfAdder is end entity testHalfAdder; architecture logic of testHalfAdder is component halfAdder is PORT( a : in STD_LOGIC; b : in STD_LOGIC; sum : out STD_LOGIC; carry : out STD_LOGIC); end component; signal in1 : STD_LOGIC; signal in2 : STD_LOGIC; signal os : STD_LOGIC; signal oc : STD_LOGIC; begin DUT : halfAdder port map ( a => in1, b => in2, sum => os, carry => oc ); process variable i, j: integer; constant delay_time : time := 2 ps; begin for i in 0 to 1 loop for j in 0 to 1 loop in1 <= std_logic'value(integer'image(i)); in2 <= std_logic'value(integer'image(j)); wait for delay_time; if (os /= (in1 xor in2) or oc /= (in1 and in2)) then report "in1=" & std_logic'image(in1) & ", in2=" & std_logic'image(in2) & ", os=" & std_logic'image(os) & ", oc=" & std_logic'image(oc) severity error; end if; end loop; end loop; end process; end architecture logic;
HACK code:
library IEEE; use IEEE.STD_LOGIC_1164.ALL; entity HACK is Port ( a : in STD_LOGIC; b : in STD_LOGIC; sum : out STD_LOGIC; carry : out STD_LOGIC ); end HACK; architecture Behavioral of HACK is component halfAdder is PORT( a : in STD_LOGIC; b : in STD_LOGIC; sum : out STD_LOGIC; carry : out STD_LOGIC); end component; begin HA : halfAdder port map ( a => a, b => b, sum => sum, carry => carry ); end Behavioral;

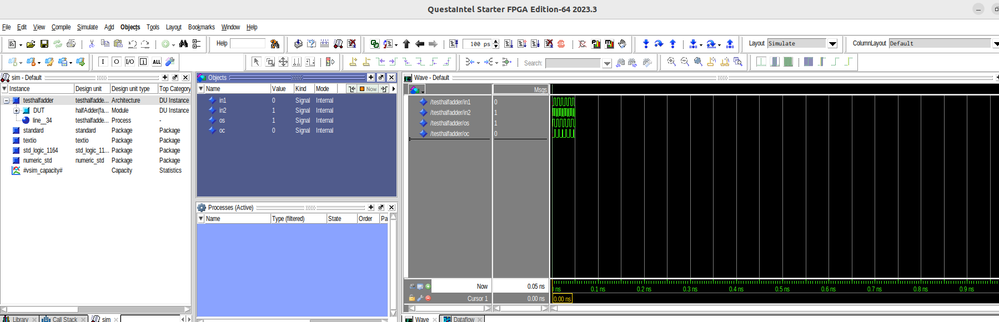

halfAdder working simulation:
halfAdder broken simulation after setting HACK to top level entity:
HACK.vhd is not a testbench. All it does is instantiate halfAdder. It doesn't provide any stimulus to halfAdder so you won't see anything in a simulation.
