Quartus Prime Lite Quitting Unexpectedly During Fitter

I am trying to integrate UART (RS-232 Serial Port) Intel FPGA IP into my project on a DE10-Nano with a Cyclone V SoC. I have followed the CVSOV UART example from the design store and I have gotten to the point to where I am trying to call the HDL created by the platform designer into my top level code. However, when i try to compile my project I get a popup saying that Quartus Quit Unexpectedly and I do not get an actual error code at all. Furthermore, when I remove the line of code which calls the HDL for the UART generated by the platform designer the code will compile.

Has anyone else seen this kind of error when trying to integrate IP into a design, or am I likely integrating the IP incorrectly? I do not know what this error means.

Thank you in advance

  • VROGE2's avatar
    VROGE2
    6 years ago

    I was able to get the project to compile after decreasing the total memory size in the On-chip Memory IP in platform designer. I decreased the memory from about 130000 bytes to 100000 bytes and this seemed to work.

    Van

9 Replies

  • VROGE2's avatar
    VROGE2
    Icon for Occasional Contributor rankOccasional Contributor
    6 years ago

    I was able to get the project to compile after decreasing the total memory size in the On-chip Memory IP in platform designer. I decreased the memory from about 130000 bytes to 100000 bytes and this seemed to work.

    Van

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi Van,

    Try by deleting incremental_db & db folders.

    Also close all the application running.

    Regenerate the platform designer system and integrate on top and compile.

    Also do share your design.

    Regards

    Anand

    • VROGE2's avatar
      VROGE2
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      I had already tried to delete the db folder but I had not tried to delete the incremental _db folder. I did make some changes in the platform designer in the on chip memory IP. The changes were that I changed the name of the IP's in the platform designer to follow the Max Baud Rate Cyclone V SOC Design Example and I changed the On chip memory initialization so that it does not initialize memory content. this allowed the program to compile but It does not allow for the use of the nios ii code I am using.

      Here is my design as it stands now:

      I altered the code in NIOS to remove some errors in the hex file, regenerated the platform designer, and re-added the platform designer qip fle and qsys file to my project. The on chip memory is still set to initialize my custom nios project and quartus still stops unexpectedly.

      I can't post code at the moment because it contains items which are proprietary and I am awaiting approval to post.

      Van

      • AnandRaj_S_Intel's avatar
        AnandRaj_S_Intel
        Icon for Regular Contributor rankRegular Contributor
        6 years ago

        Hi,

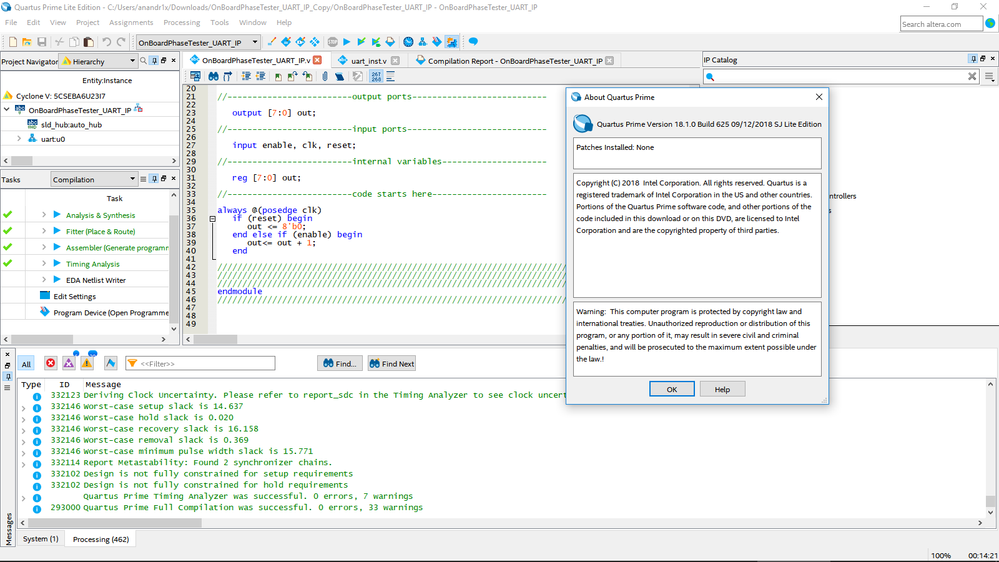

        Not able to replicate the scenario with the project above.

        Try by deleting incremental_db & db folders. also check original code.

        Regards

        Anand

    • VROGE2's avatar
      VROGE2
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      Here it is:

      Problem Details
Error:
Internal Error: Sub-system: U2B, File: /quartus/db/u2b/u2b_av_m10k_param.cpp, Line: 2085
ram_content_index < ram_content.size()
Stack Trace:
    0x10426: U2B_AV_M10K_PARAM_TRANSLATOR::translate_eram_bitvec + 0x5f6 (db_u2b)
     0xf2cf: U2B_AV_M10K_PARAM_TRANSLATOR::convert_config_to_physical_atom + 0x12f (db_u2b)
    0xcfb4d: U2B_TRANSLATOR_AV_M10K::convert + 0x9d (db_u2b)
    0x349d5: FSV_U2B_POSTFIT::check_u2b_configs_for_conflicts + 0x585 (fitter_fsv)
    0x396b9: FSV_U2B_POSTFIT::work + 0x139 (fitter_fsv)
   0x601ca3: vpr_qi_u2b_postfit_work + 0xc3 (fitter_vpr20kmain)
   0x270376: aa_flow_finalize + 0x66 (fitter_vpr20kmain)
   0x26b25d: aa_flow_fit + 0x20d (fitter_vpr20kmain)
   0x5735ae: VPR_QI_FACADE::vpr_qi_main + 0x6e (fitter_vpr20kmain)
    0x3384e: fitapi_run_vpr + 0x7e (fitter_fitapi)
    0x1fb8f: FSV_EXPERT_BASE::run_vpr + 0x13f (fitter_fsv)
    0x1f64d: FSV_EXPERT_BASE::place_and_route + 0x12d (fitter_fsv)
    0x1eab6: FSV_EXPERT_BASE::invoke_fitter + 0x636 (fitter_fsv)
    0x1c952: fsv_execute + 0x22 (fitter_fsv)
     0xe910: fmain_start + 0x900 (FITTER_FMAIN)
     0x41b1: qfit_execute_fit + 0x1bd (comp_qfit_legacy_flow)
     0x5384: QFIT_FRAMEWORK::execute + 0x2a0 (comp_qfit_legacy_flow)
     0x267f: qfit_legacy_flow_run_legacy_fitter_flow + 0x1c7 (comp_qfit_legacy_flow)
    0x14410: TclInvokeStringCommand + 0xf0 (tcl86)
    0x161e2: TclNRRunCallbacks + 0x62 (tcl86)
    0x17a65: TclEvalEx + 0xa65 (tcl86)
    0xa6f8b: Tcl_FSEvalFileEx + 0x22b (tcl86)
    0xa5646: Tcl_EvalFile + 0x36 (tcl86)
    0x12606: qexe_evaluate_tcl_script + 0x376 (comp_qexe)
    0x11864: qexe_do_tcl + 0x334 (comp_qexe)
    0x16755: qexe_run_tcl_option + 0x585 (comp_qexe)
    0x380c3: qcu_run_tcl_option + 0x1003 (comp_qcu)
    0x160aa: qexe_run + 0x39a (comp_qexe)
    0x16e51: qexe_standard_main + 0xc1 (comp_qexe)
     0x2233: qfit2_main + 0x73 (quartus_fit)
    0x12e98: msg_main_thread + 0x18 (CCL_MSG)
    0x1467e: msg_thread_wrapper + 0x6e (CCL_MSG)
    0x16660: mem_thread_wrapper + 0x70 (ccl_mem)
    0x12761: msg_exe_main + 0xa1 (CCL_MSG)
     0x287e: __tmainCRTStartup + 0x10e (quartus_fit)
    0x17973: BaseThreadInitThunk + 0x13 (KERNEL32)
    0x6a270: RtlUserThreadStart + 0x20 (ntdll)

End-trace


Executable: quartus_fit
Comment:
None

System Information
Platform: windows64
OS name: Windows 10
OS version: 10.0

Quartus Prime Information
Address bits: 64
Version: 18.1.0
Build: 625
Edition: Lite Edition

      Van
