Solved

Quartus Prime Lite Edition - Setting File Reference Manual &&& weak pull-up

Dear Manager,

I'm using Quartus Prime Lite Editon 18.0.0 version to develop MAX V CPLD.

I want set the un-used pin to weak pull-up.

Please let me know where can I find the "Quartus Prime Lite Edition - Setting File Reference Manual".

And please let me know how can I set weak pull-up.

In my tool, Pin properties setting tap has only bellow.

Reserved:

- As SignalProbe output

- As bidirectional

- As input tri-state

- As output driving VCC

- As output driving an unspcified signal

- As output driving ground

there is no : -As input tri-state with weak pull-up

Thank in advance.

Platform
  • FvM's avatar
    FvM
    12 months ago

    Sorry,
    this should be a valid link. Copied from site search. Intel could spend quite a bit more effort to maintain website integrity. I'll post my latest copy, not necessarily current version.
    Regards
    Frank

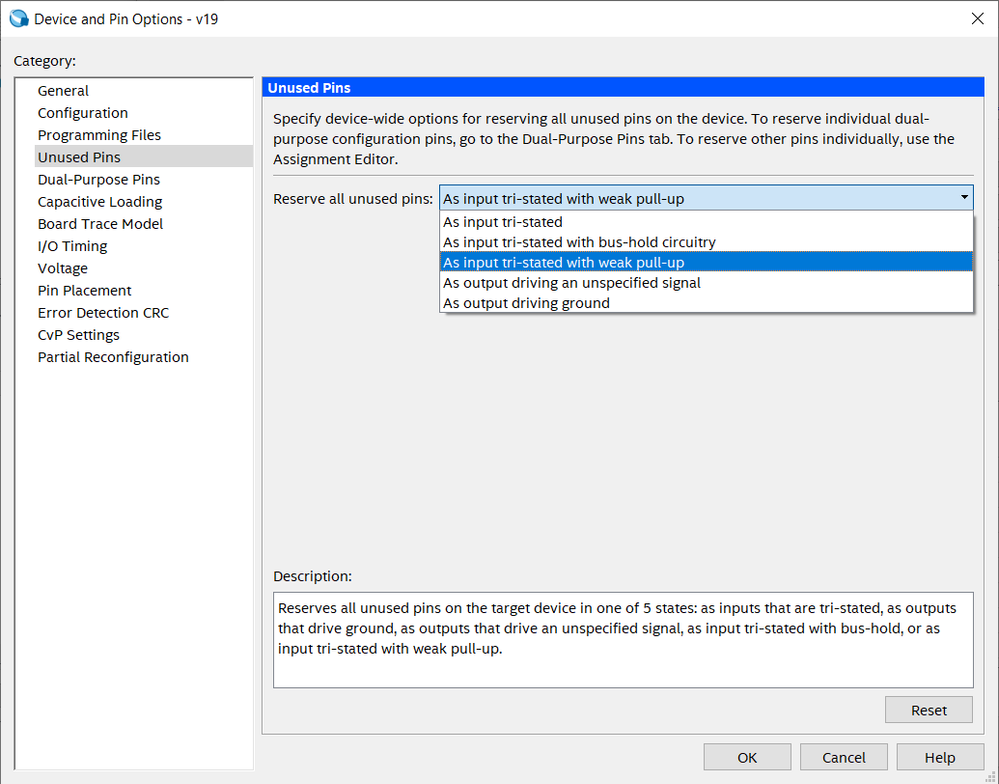

    P.S.: There's only one setting for unused pins. If you want other initialization of some pins, they must be defined as ports in your design top and assigned in pin planner to pin locations. Initialization of output to '1' can done in port definition, weak pull-up feature of input or tri-stated inout in pin planner or assignment editor.

5 Replies

    • DaeJin's avatar
      DaeJin
      Icon for New Contributor rankNew Contributor
      12 months ago

      Thanks frank.

      It helped me a lot.

      However, I can't download the PDF file from the link provided.

      If you know of a site where I can download it, please let me know.

      An additional question is,

      I want to make some unused pins internally pull-up and the rest high output.

      What should I do in this case?

      Regrads

      Daejin

      • FvM's avatar
        FvM
        Icon for Super Contributor rankSuper Contributor
        12 months ago

        Sorry,
        this should be a valid link. Copied from site search. Intel could spend quite a bit more effort to maintain website integrity. I'll post my latest copy, not necessarily current version.
        Regards
        Frank

        P.S.: There's only one setting for unused pins. If you want other initialization of some pins, they must be defined as ports in your design top and assigned in pin planner to pin locations. Initialization of output to '1' can done in port definition, weak pull-up feature of input or tri-stated inout in pin planner or assignment editor.

  • AqidAyman_Altera's avatar
    AqidAyman_Altera
    Icon for Regular Contributor rankRegular Contributor
    11 months ago

    I’m glad that your question has been addressed, I now transition this thread to community support. If you have a new question, Please login to ‘https://supporttickets.intel.com/s/?language=en_US’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.
