Quartus II 18.1 "GPIO intel FPGA IP" not working.

Hello everyone,

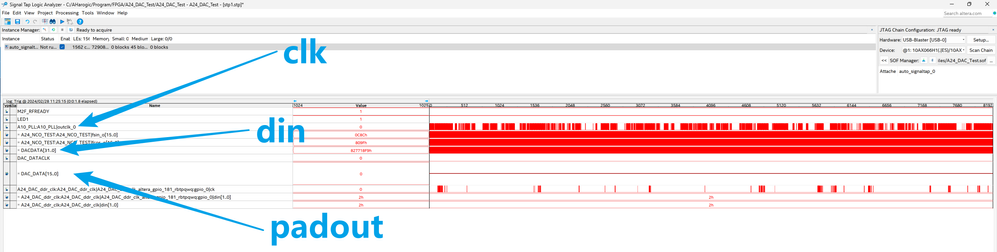

I am planning to use the IP "GPIO intel FPGA IP" to realize Double Data Rate. When I use it, I make sure that the clock and input data for DDIO are correctly given. However, DDIO does not produce any output, and I don't know why. The following is the actual test situation in SignalTap. The clock used for testing is 400MHz, and the speed of the tested signal does not exceed 200MHz.

Development Environment:
1. Quartus II 18.1
2. FPGA Device: Arria 10

Hdl
Platform

3 Replies

  • RichardT_altera's avatar
    RichardT_altera
    Icon for Super Contributor rankSuper Contributor
    1 year ago

    I run your design and notice that your design is not timing clean. (with or without signal tap). You will need to close the timing first before run signal tap.

    Have you try to run simulation to check the design function?


    Regards,

    Richard Tan
