Problem FSM

There is a problem that when I tried to design a FSM, the code never enters to that part. I simulated the same code in ModelSim and it was working fine.

FSM_I2C : process(current_state,next_state,i2c_start,Flag,i2c_clk_previous_internal, id2c_scl_i_clock,i2c_sda_oe)
	begin
		--if (RISING_EDGE(Clk)) then
			case current_state is
				when IDLE =>
					counter_variable <= 7;
					if i2c_start = '1' then
						next_state <= START;
						i2c_sda_oe <= '1';
					else
						next_state <= IDLE;
					end if;

				when START =>
					if Flag = '1' then
						i2c_sda_wr <= '0';
						next_state <= ADDRESS;
					end if;

				when ADDRESS =>
					if counter_variable /= 0 then
						if id2c_scl_i_clock = '1' and i2c_clk_previous_internal = '0' then
							counter_variable <= counter_variable - 1;
							i2c_sda_wr  <= I2C_ADDRESS_SENSOR(counter_variable-1);
						end if;
					else
						if id2c_scl_i_clock = '1' and i2c_clk_previous_internal = '0' then
							i2c_sda_wr  <= I2C_WRITE_RW;
							counter_variable <= 7;
							next_state <= ACK;
						end if;
					end if;

				when ACK =>
					i2c_sda_oe <= '0';
					if i2c_clk_previous_internal = '0' and id2c_scl_i_clock = '1' then
						next_state <= IDLE;
					end if;

				when others =>
					next_state <= IDLE;
			end case;
		--end if;
	end process FSM_I2C;

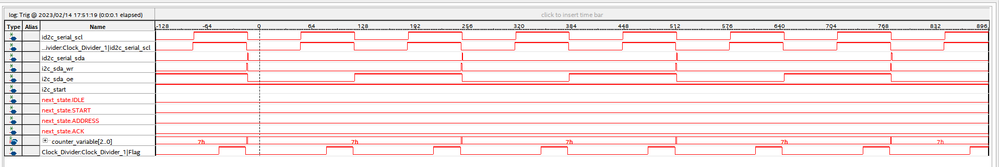

this is just a part of the I2C algorithm. In this case, I'm just implementing sending the address to see if my code is working fine. However, this is the output

Only works when I put inside the FSM a conditional IF(RISING_EDGE(CLK)), but I don't understand why since I'm updating all the variables in other process.


	process (Clk,reset_reset_n)
	begin
		if reset_reset_n = '0' then
			current_state 		 		<= IDLE;
			id2c_serial_scl	  		<= '0';
			id2c_serial_sda	   	<= '0';
		elsif (RISING_EDGE(Clk)) then
			current_state 		 		<= next_state;
			id2c_serial_scl			<= i2c_clk_previous_internal;
			id2c_serial_sda		 	<= id2c_serial_sda_o_internal;
			id2c_scl_i_clock 			<= i2c_clk_previous_internal;
		end if;
	end process;
  • gomezramones's avatar
    gomezramones
    3 years ago

    The problem was not the triggered in the FSM. When you have a FSM and some signals are going to change in some cases, you need to initialize them at the beginning so the FSM can see signals change in every case possible.

5 Replies

  • ShengN_altera's avatar
    ShengN_altera
    Icon for Super Contributor rankSuper Contributor

    Hi,


    Could you provide a sample project for testing out.

    Can also provide personally to my email qi.sheng.ng@intel.com


    Thanks,

    Regards,

    Sheng


  • ShengN_altera's avatar
    ShengN_altera
    Icon for Super Contributor rankSuper Contributor

    Hi,

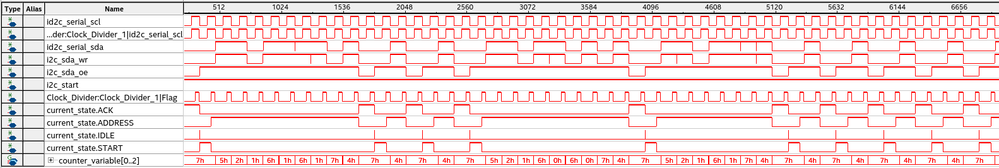

    By using the comparison trigger condition, i'm getting the signal tap waveform below (image):

    May check out this video https://www.youtube.com/watch?v=WJFKBWCnAB4&t=1026s for the trigger condition details. I had sent the project file to your email.

    For those red coloured signals are not in the node list due to being optimized away. But can try to preserve those signals by using keep or preserve attribute check this link https://www.intel.com/content/www/us/en/docs/programmable/683552/18-1/signal-preservation.html. However, I try with keep attribute on next_state signal but that affected the waveform result.

    Thanks,

    Best regards,

    Sheng

    p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer.

  • ShengN_altera's avatar
    ShengN_altera
    Icon for Super Contributor rankSuper Contributor

    Hi,


    Let me know if any further update or concern?


    Thanks,

    Best regards,

    Sheng

    p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer.


    • gomezramones's avatar
      gomezramones
      Icon for New Contributor rankNew Contributor

      The problem was not the triggered in the FSM. When you have a FSM and some signals are going to change in some cases, you need to initialize them at the beginning so the FSM can see signals change in every case possible.
