Platform Designer Tutorial Address range Error

I am following the guide AN 812: Platform Designer System Design Tutorial, I received the below error.

Error: sysA.cpu.data_master: pipeline_bridge.s0 (0x0..0xffff) is outside the master's address range (0x0..0xfff)

How to solve this structurally? (Using Platform Designer 18.1 Build 222)

3 Replies

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    7 years ago

    Hi,

    Yes,i can reproduce the error.However we can solve it

    Before assign the Base address and click on lock, we have go to do system ->assign Base address.and assign the Base address and click on lock as per AN812.

    Let me know if this has helped resolve the issue you are facing or if you need any further assistance.

    Best Regards,

    Anand

  • SOkte's avatar
    SOkte
    Icon for New Contributor rankNew Contributor
    7 years ago

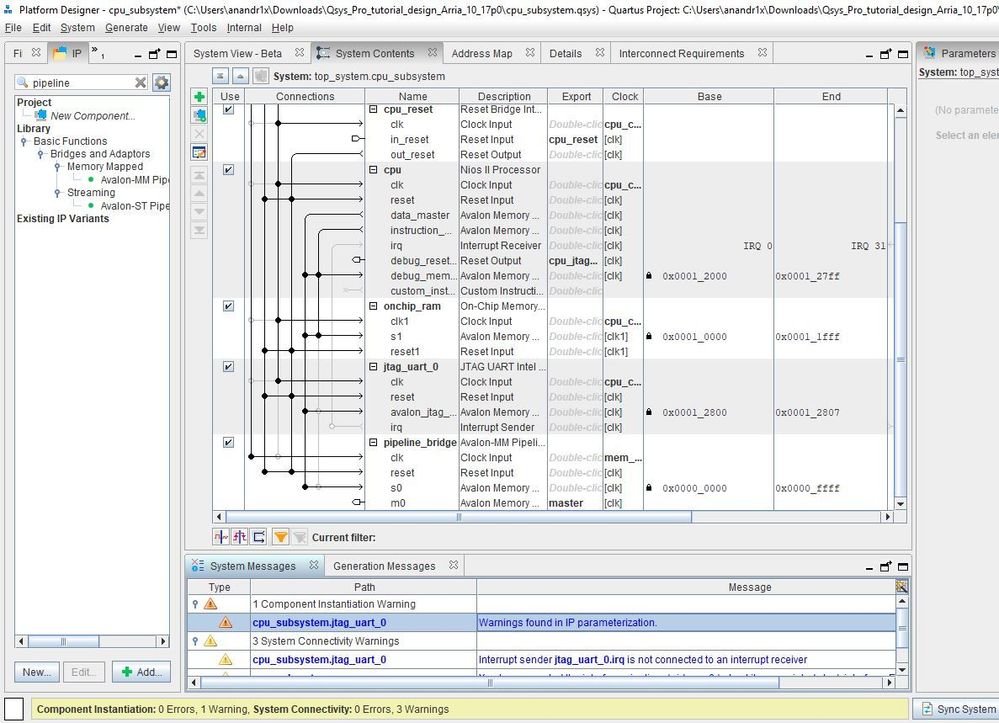

    I have attached the address width of the CPU

    In the edit assignments menu it is 17 bit wide, in the ​signals interfaces menu it is 12 bits wide
