Modelsim is not simulating.

I have a module I want to test

out_control.vhd

entity OUT_CONTROL is
port
(
    CLK : in  std_logic;
    RST : in  std_logic;

    OUT_MASK   : in std_logic_vector(55 downto 0);
    OUT_ON_OFF : in std_logic_vector(55 downto 0);
    OUT_TRIG   : in std_logic;

    OUTPUTS    : out std_logic_vector(55 downto 0)
);
end entity OUT_CONTROL;

architecture behavior of OUT_CONTROL is

type OutStateType is (ST_IDLE, ST_SET);
signal OutState : OutStateType := ST_IDLE;

begin
process(CLK)
begin
    if (rising_edge(CLK)) then
        case OutState is
            when ST_IDLE =>
		if (OUT_TRIG = '1') then
		    OutState <= ST_SET;
		end if;

            when ST_SET =>
                for i in 0 to 55 loop
		    if (OUT_MASK(i) = '1') then
		        OUTPUTS(i) <= OUT_ON_OFF(i);
		    end if;
	        end loop;
	        OutState <= ST_IDLE;

	    when others => OutState <= ST_IDLE;
        end case;
    end if;
end process;

end behavior;

And a test bench

out_control_tb.vhd

entity out_control_tb is
end entity;

architecture test of out_control_tb is

component OUT_CONTROL is
port
(
    CLK : in  std_logic;
    RST : in  std_logic;

    OUT_MASK   : in std_logic_vector(55 downto 0);
    OUT_ON_OFF : in std_logic_vector(55 downto 0);
    OUT_TRIG   : in std_logic;

	 OUTPUTS    : out std_logic_vector(55 downto 0)
);
end component;

signal reset : std_logic := '0';
signal clock : std_logic;

signal s_out_mask : std_logic_vector(55 downto 0);
signal s_on_off   : std_logic_vector(55 downto 0);
signal s_outputs  : std_logic_vector(55 downto 0);
signal s_out_trig : std_logic;

signal stop : boolean;

begin

U_OUT_CONTROL : OUT_CONTROL
port map
(
   CLK => clock,
   RST => reset,

   OUT_MASK => s_out_mask,
   OUT_ON_OFF => s_on_off,
   OUT_TRIG => s_out_trig,

    OUTPUTS => s_outputs
);

clkgen : process
begin
  while true loop
    clock <= '0';
    wait for 10 ns;
    clock <= '1';
    wait for 10 ns;
  end loop;
  wait;
end process;

process
begin
    if (rising_edge(clock)) then
        wait for 100 ns;

        s_out_mask <= X"0000000000000F";
        s_on_off   <= X"0000000000000F";

        s_out_trig <= '1';
        wait for 20 ns;
        s_out_trig <= '0';

        s_on_off   <= X"00000000000003";

        s_out_trig <= '1';
        wait for 20 ns;
        s_out_trig <= '0';

        wait;
    end if;
end process;

end architecture;

Now I do

1. open a new project in Modelsim

2. add files out_control.vhd and out_control_tb.vhd

3. compile files successfully

4. Simulation -> Start Simulation -> select work/out_control_tb.vhd

5. Add signals to a Wave view.

6. Press Run ( Run continuous) button.

I see

VSIM 23>run (VSIM 24>run - continue)

And nothing. No signals appear on the Wave tab.

What do I do wrong?

6 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor

    I think you have to say run -all to advance the simulation.

  • YEan's avatar
    YEan
    Icon for Contributor rankContributor

    Hi there,

    Do you have any update on your problem?

    Thank you

    Regards,

    Ean

    • EEren's avatar
      EEren
      Icon for Occasional Contributor rankOccasional Contributor

      Well...Some problems I resolved another pop up.

      For example

      process
      begin
          reset <= '1';
          wait for 100 ns;
          reset <= '0';

          wait until s_send_rdy = '1';
          s_send_data <= X"88";
          s_send_trig <= '1';
          wait for 40 ns;
          s_send_trig <= '0';
          wait until s_send_rdy = '0';

          wait until s_send_rdy = '1';
          s_send_data <= X"ED";
          s_send_trig <= '1';
          wait for 40 ns;
          s_send_trig <= '0';
          wait until s_send_rdy = '0';

          wait;
      end process;

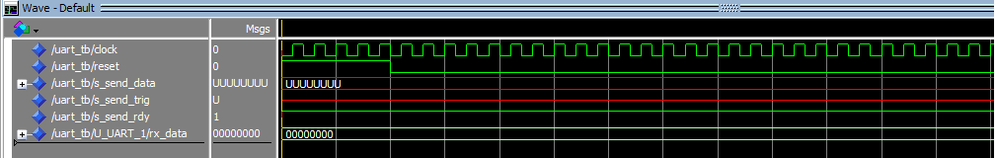

      And I see

      Is wait until working directive?

      • YEan's avatar
        YEan
        Icon for Contributor rankContributor

        What does that mean working directive?

  • EEren's avatar
    EEren
    Icon for Occasional Contributor rankOccasional Contributor

    Who is talking about Verilog ???!!!

    Where do you see a single line of Verilog in my code ???!!!

    Jesus Christ!!! Unbelievable!!!
