Error(16045): Instance "dummy_0" instantiates undefined entity "arria10_SoC_mSGDMA_dummy_0"

Hello,

I am working in a project to be familiar with Platform Designer and msgDMA in Intel Arria 10 SoC platform.

I have instantiated 2 msgDMA (ST-MM and MM-ST) and a SoC IPs as well as a dummy custom module between the 2 msgDMA. When I run the compilation I get the error:

Error(16045): Instance "dummy_0" instantiates undefined entity "arria10_SoC_mSGDMA_dummy_0"

To create the dommy IP I have included a new component and defined the entity in vhdl, attached to this message and it was included to the HDL files of the component.

Could anyone help me to find the rootcause?

------------------------------------------

Test setup

Ubuntu desktot 20.04

Quartus Prime Version 22.4.0 Build 94 12/07/2022 SC Pro Edition

Platform

5 Replies

  • ShengN_altera's avatar
    ShengN_altera
    Icon for Super Contributor rankSuper Contributor
    1 year ago

    Hi,

    I had created a platform designer system with 2 MSGDMA and custom module dummy.vhd in between the 2 MSGDMA. Compilation run successfully without error check attached .qar.

    Make sure the entity name is correct and matching. Try to create a new custom IP with updated dummy.vhd. It's better also to re-generate the .qsys to get the updated module files.

    Thanks,

    Regards,

    Sheng

  • ShengN_altera's avatar
    ShengN_altera
    Icon for Super Contributor rankSuper Contributor
    1 year ago

    Hi,

    Do you have any further concern or consideration?

    Does the problem being resolved?

    Thanks,

    Regards,

    Sheng

    • RubenPadial's avatar
      RubenPadial
      Icon for Contributor rankContributor
      1 year ago

      Hello @ShengN_Intel ,

      I'm checking the .qar file.

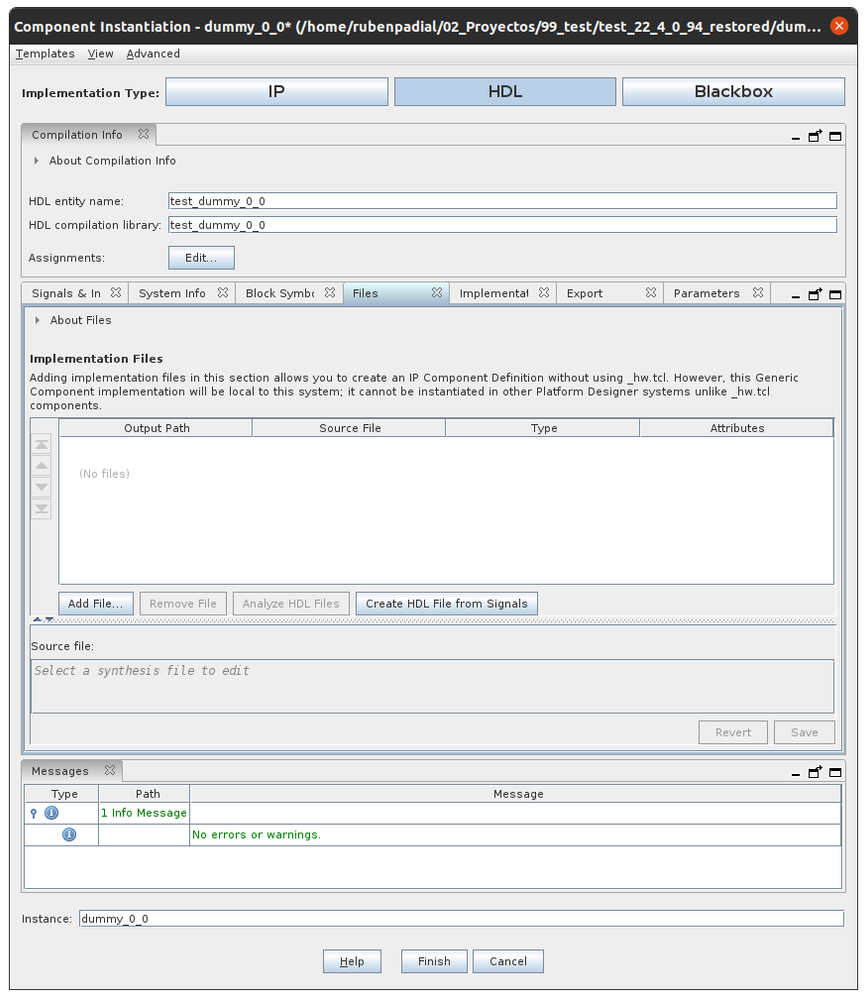

      When I open it, it doesn't includes the .vhdl file.

      and the block only have an Avalon Memory Mapped Agent input port whereas the dummy module has the avalon_sink : in std_logic_vector(31 downto 0) and avalon_source : out std_logic_vector(31 downto 0) inputs. Why are not needed the Avalon Streaming Sink and Source ports?

      When I run the compilation, "Timing requirements not met" error is given.

      • ShengN_altera's avatar
        ShengN_altera
        Icon for Super Contributor rankSuper Contributor
        1 year ago

        Hi @RubenPadial ,

        When I open it, it doesn't includes the .vhdl file.

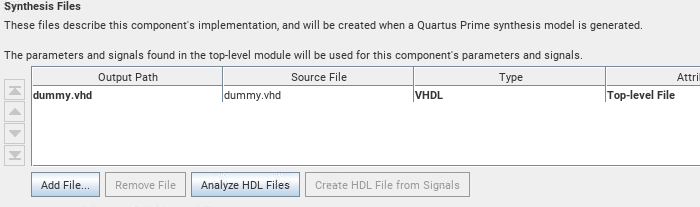

        In platform designer system .qsys, right-click dummy_0 -> Edit -> Files, i had put the dummy.vhd file for analyzing check screenshot.

        Why are not needed the Avalon Streaming Sink and Source ports?

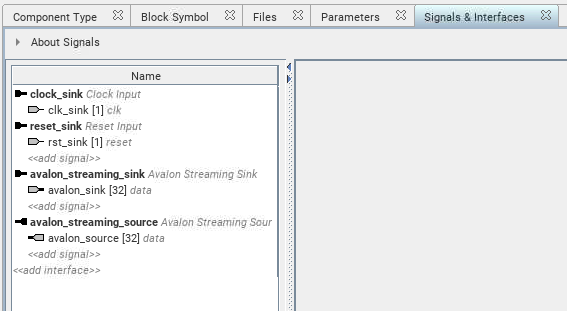

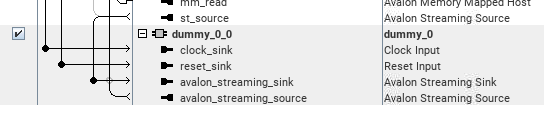

        I had modified the design (attach below) to use both Avalon Streaming Sink and Avalon Streaming Source check screenshot.

        When I run the compilation, "Timing requirements not met" error is given.

        Because don't have the .sdc file. This is just a simple design example to show that there's no problem on the dummy.vhd. As mentioned before, make sure to re-generate the platform system to sync with the core file's update.

        Thanks,

        Regards,
        Sheng
