New ContributorError: (vsim-3732) The following component port is not on the entity: # IR31_to_26

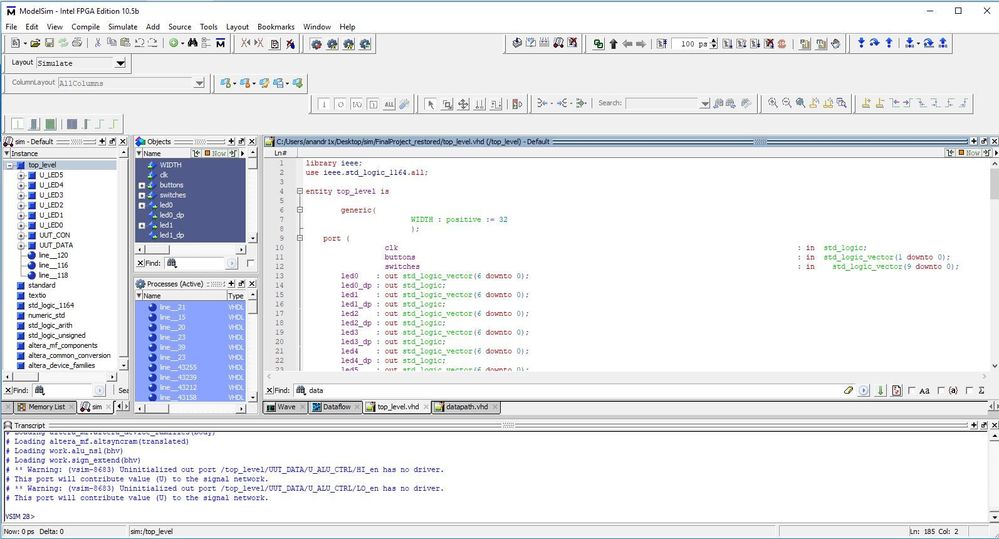

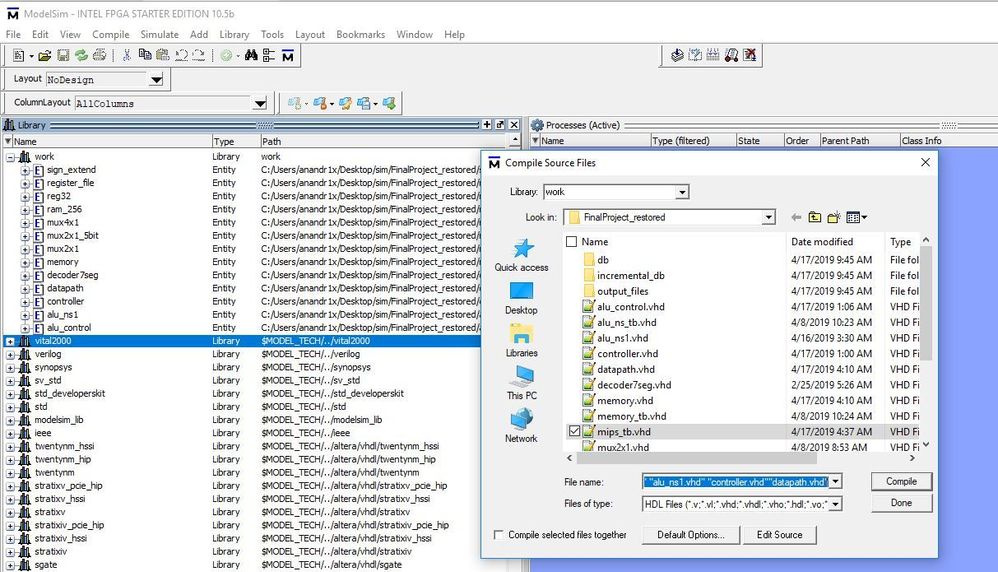

Hello, I am trying to create a testbench for a mips processor in VHDL. It compiles fine in quartus and in modelsim but when I try to start the simulation I get this error.
* Error: (vsim-3732) D:/Quartus/4712labvhd/top_level.vhd(169): No default binding for component instance 'UUT_CON'.
# The following component port is not on the entity:
# IR31_to_26
Anything Helps. The first bit of code is the testbench itself and the next is the top level entity that I use inside.
library ieee;
use ieee.std_logic_1164.all;
entity top_level is
generic(
WIDTH : positive := 32
);
port (
clk : in std_logic;
buttons : in std_logic_vector(1 downto 0);
switches : in std_logic_vector(9 downto 0);
led0 : out std_logic_vector(6 downto 0);
led0_dp : out std_logic;
led1 : out std_logic_vector(6 downto 0);
led1_dp : out std_logic;
led2 : out std_logic_vector(6 downto 0);
led2_dp : out std_logic;
led3 : out std_logic_vector(6 downto 0);
led3_dp : out std_logic;
led4 : out std_logic_vector(6 downto 0);
led4_dp : out std_logic;
led5 : out std_logic_vector(6 downto 0);
led5_dp : out std_logic
);
end top_level;
architecture STR of top_level is
signal ADDRESS : std_logic_vector(31 downto 0);
signal ALUOp : std_logic_vector(5 downto 0) ;
signal IR31_to_26: std_logic_vector(5 downto 0);
signal alu_out, alu_out_hi, A_out, B_out, regfileout1, regfileout2, MemoryRegOut, WRdata_out, HI_out, LO_out: std_logic_vector(31 downto 0);
signal ALUSrcB, PCSource, ALU_LO_HI : std_logic_vector(1 downto 0);
signal OPSelect: std_logic_vector(5 downto 0);
signal PCWriteCond, PCWrite, IorD, MemRead, MemWrite, IRWrite, MemToReg, JumpAndLink, IsSigned, ALUSrcA, RegWrite, RegDst : std_logic;
signal inport_en, reset_en:std_logic;
signal OutPort_int:std_logic_vector(31 downto 0);
signal switch_int: std_logic_vector(31 downto 0);
component controller is
generic (
width : positive := 32);
port (
clk : in std_logic := '0';
rst : in std_logic := '0';
PCWriteCond : out std_logic;
PCWrite : out std_logic;
IorD : out std_logic;
MemRead : out std_logic;
MemWrite : out std_logic;
MemToReg : out std_logic;
IRWrite : out std_logic;
JumpAndLink : out std_logic;
IsSigned : out std_logic;
PCSource : out std_logic_vector(1 downto 0);
ALUOp: out std_logic_vector(5 downto 0) ;
IR31_to_26 : in std_logic_vector(5 downto 0) ;
ALUSrcB : out std_logic_vector(1 downto 0);
ALUSrcA : out std_logic;
RegWrite : out std_logic;
RegDst : out std_logic
);
end component;
component datapath is
generic (
width : positive := 32);
port (
clk : in std_logic;
rst : in std_logic;
switches: in std_logic_vector(31 downto 0);
buttons: in std_logic_vector(1 downto 0);
PCWriteCond : in std_logic;
PCWrite : in std_logic;
IorD : in std_logic;
MemRead : in std_logic;
MemWrite : in std_logic;
MemToReg : in std_logic;
IRWrite : in std_logic;
JumpAndLink : in std_logic;
IsSigned : in std_logic;
PCSource : in std_logic_vector(1 downto 0);
ALUOp : in std_logic_vector(5 downto 0) ;
IR31_to_26 : out std_logic_vector(5 downto 0) ;
ALUSrcB : in std_logic_vector(1 downto 0);
ALUSrcA : in std_logic;
RegWrite : in std_logic;
RegDst : in std_logic;
OutPort : out std_logic_vector(31 downto 0)
);
end component;
component decoder7seg is
port (
input : in std_logic_vector(3 downto 0);
output : out std_logic_vector(6 downto 0));
end component;
-- signals for top_level
signal input1 : std_logic_vector(8 downto 0);
signal input2 : std_logic_vector(8 downto 0);
signal output_internal : std_logic_vector(6 downto 0);
begin
inport_en <= not buttons(0);
reset_en <= not buttons(1);
switch_int <= "0000000000000000000000" & switches;
-- map adder output to two LEDs
U_LED5 : decoder7seg port map (
input =>OutPort_int(23 downto 20),
output => led5);
U_LED4 : decoder7seg port map (
input => OutPort_int(19 downto 16),
output => led4);
-- all other LEDs should display 0
U_LED3 : decoder7seg port map (
input => OutPort_int(15 downto 12),
output => led3);
U_LED2 : decoder7seg port map (
input => OutPort_int(11 downto 8),
output => led2);
U_LED1 : decoder7seg port map (
input => OutPort_int(7 downto 4),
output => led1);
U_LED0 : decoder7seg port map (
input => OutPort_int(3 downto 0),
output => led0);
UUT_CON : controller
port map(
clk => clk,
rst =>reset_en,
PCWriteCond => PCWriteCond,
PCWrite => PCWrite,
IorD => IorD,
MemRead => MemRead,
MemWrite => MemWrite,
MemToReg => MemToReg,
IRWrite => IRWrite,
JumpAndLink => JumpAndLink,
IsSigned => IsSigned,
PCSource => PCSource,
ALUOp => ALUOp,
IR31_to_26 => IR31_to_26,
ALUSrcB => ALUSrcB,
ALUSrcA => ALUSrcA,
RegWrite =>RegWrite,
RegDst => RegDst
);
UUT_DATA : datapath
port map(
clk => clk,
rst =>reset_en,
switches => switch_int,
buttons => buttons,
PCWriteCond => PCWriteCond,
PCWrite => PCWrite,
IorD => IorD,
MemRead => MemRead,
MemWrite => MemWrite,
MemToReg => MemToReg,
IRWrite => IRWrite,
JumpAndLink => JumpAndLink,
IsSigned => IsSigned,
PCSource => PCSource,
ALUOp => ALUOp,
IR31_to_26 => IR31_to_26,
ALUSrcB => ALUSrcB,
ALUSrcA => ALUSrcA,
RegWrite =>RegWrite,
RegDst => RegDst,
OutPort => OutPort_int
);
end STR;library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_arith.all;
use ieee.std_logic_unsigned.all;
use ieee.numeric_std.all;
entity mips_tb is
end mips_tb;
architecture TB of mips_tb is
component top_level is
generic(
WIDTH : positive := 32
);
port (
clk : in std_logic;
buttons : in std_logic_vector(1 downto 0);
switches : in std_logic_vector(9 downto 0);
led0 : out std_logic_vector(6 downto 0);
led0_dp : out std_logic;
led1 : out std_logic_vector(6 downto 0);
led1_dp : out std_logic;
led2 : out std_logic_vector(6 downto 0);
led2_dp : out std_logic;
led3 : out std_logic_vector(6 downto 0);
led3_dp : out std_logic;
led4 : out std_logic_vector(6 downto 0);
led4_dp : out std_logic;
led5 : out std_logic_vector(6 downto 0);
led5_dp : out std_logic
);
end component;
signal output_PC : std_logic_vector(31 downto 0) := (others => '0');
signal clock_int : std_logic:='0';
signal data_int : std_logic_vector (31 downto 0);
signal wren_int : std_logic ;
signal q_int : std_logic_vector (31 downto 0);
signal reset_int :std_logic;
signal mux_sel : std_logic_vector(1 downto 0);
signal buttons_int : std_logic_vector(1 downto 0);
signal switches_int : std_logic_vector(9 downto 0);
begin
UUT_top : top_level
port map(
clk => clock_int,
buttons => buttons_int,
switches => switches_int
);
clock_int <= not clock_int after 10 ns;
process
begin
reset_int <='1';
wait for 50 ns;
reset_int <='0';
wait for 50 ns;
end process;
end TB;
