Checker not found - Verilog.

Hey i wrote this code in Verilog.

This is the Code:

module shift_register(write,s_in,clk,d,s_out,p);

input write,clk;

input [3:0] d;
input [11:0] s_in;

output reg s_out;
output reg [3:0] p;

wire mux_1,mux_2,mux_3,mux_4,dff_1,dff_2,dff_3,dff_4; // 8 wires

mux2_1 mux1(.s(s_in),.d(d[3]),.w(write),.z(mux_1)); // mux1

D_FlipFlop dff1(.d(mux_1),.clk(clock),.q(dff_1)); // DFlipFlop1
always@(posedge clk) begin
p[3]<=dff_1;
end
mux2_1 mux2(.s(dff_1),.d(d[2]),.w(write),.z(mux_2));// mux2

D_FlipFlop dff2(.d(mux_2),.clk(clock),.q(dff_2));  // DFlipFlop2
always@(posedge clk) begin
p[2]<=dff_2;
end
mux2_1 mux3(.s(dff_2),.d(d[1]),.w(write),.z(mux_3));// mux3

D_FlipFlop dff3(.d(mux_3),.clk(clock),.q(dff_3));  // DFlipFlop3
always@(posedge clk) begin
p[1]<=dff_3;
end
mux2_1 mux4(.s(dff_3),.d(d[0]),.w(write),.z(mux_4));// mux4

D_FlipFlop dff4(.d(mux_4),.clk(clock),.q(dff_4));  // DFlipFlop4
always@(posedge clk) begin
p[0]<=dff_4;

s_out<=dff_4;
end
endmodule

and this is the Testbench:

module shift_register_testbench();
wire write,clk;

input [3:0] d;
input [11:0] s_in;

output reg s_out;
output reg [3:0] p;

 initial
 begin
d[3:0]  = 1'b1;
write = 1'b0;

s_in[0] = 1'b1;
#10;
s_in[1] = 1'b0;
#10;
s_in[2] = 1'b0;
#10;
s_in[3] = 1'b1;
#10;
s_in[4] = 1'b0;
#10;
s_in[5] = 1'b0;
write = 1'b1;
#10;
s_in[6] = 1'b1;
write = 1'b0;
#10;
s_in[7] = 1'b0;
#10;
s_in[8] = 1'b1;
#10;
s_in[9] = 1'b1;
#10;
s_in[10] = 1'b1;
#10;
s_in[11] = 1'b0;
#10;


shift_register SRTB(.write(write),.s_in(s_in[11:0]),.clk(clk),.d(d[3:0]),.s_out(s_out),.p(p[3:0]));

end
endmodule

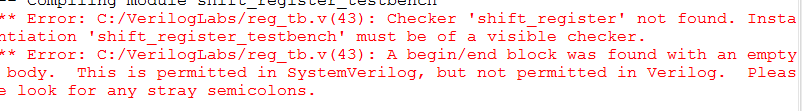

And when I`m try to run the testbench this problem appear:

how can i fix it?THNX!

3 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor

    Where is your shift register HDL file located? Is it in the same directory as the testbench? I think the issue is ModelSim is simply not seeing the file. Make sure you "Change Directory" in ModelSim to point to the location of the code.

    #iwork4intel

  • SyafieqS's avatar
    SyafieqS
    Icon for Super Contributor rankSuper Contributor

    Hi Naor,


    Make sure your HDL and testbench in same directory when you simulating the design. The directory in Modelsim is same as the path where your hdl and tb files.


    Thanks,

    Regards
