Avalon Clock Crossing Bridge with write response support

Hi Fabian,

Avalon Clock Crossing Bridge didn't use the write response and write response valid signals.

Btw, you may refer to the waitrequest (low) and write signals (low) for complete transaction. Check this link https://www.intel.com/content/www/us/en/docs/programmable/683091/22-3/memory-mapped-interface-signal-roles.html

A write command is considered accepted when the last beat of the burst is issued to the agent and waitrequest is low.

Thanks,

Regards,

Sheng

Thanks for the hint, but that gives me only the completion of the Avalon write transaction to the Clock Crossing Bridge, but not to the final target.

But if you have a multi master scenario this cannot be used to tell, when data actually is written to the target.

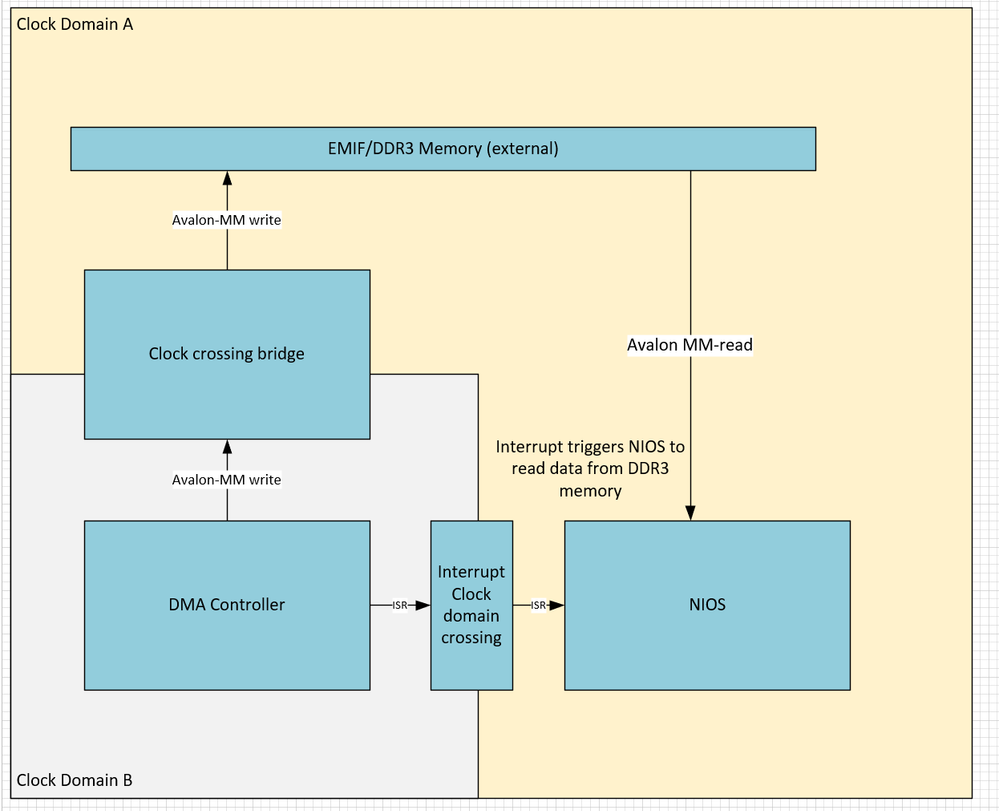

E.g. the following scenario:

In this case the DMA controller cannot know when the Clock crossing bridge actually completes the transfer due to the variable delay of its internal FIFO. Thus it may happen, that the Interrupt to the NIOS arrives too early and the data is not yet written to the external memory.

It depends on the overall load on the shared EMIF Avalon MM Interface and the fillstate of the FIFO in the clock crossing bridge.

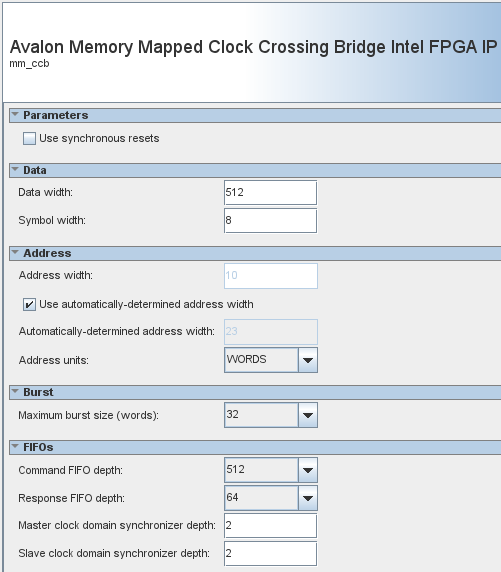

The risk that this happens may be reduced by reducing the size of the clock crossing bridge FIFO and by adding additional wait cycles before issuing the ISR, but so far I have not found a reliable way to guarantee a coherent execution order.

Any suggestions on this scenario?

best regards

Fabian

Hi Sheng,

thanks for the hint to this option.

best regards

Fabian

Hi Fabian,

Let me know if you have any further concern or consideration?

Thanks,

Regards,

Sheng
