Native phy simulation

hi @iiwan @JohnT_Intel I am facing issue while simulating native phy along reset controller and atx pll. Native phy is not yet all generating the tx_clkout and rx_clkout Can you tell me the rea...
  • iiwan's avatar
    iiwan
    4 years ago

    Can you sim your design without Reset controller, gnd to analog and digital resets of native phy. It would help whether your have an error in your design or bug in sim generated IP core.

APPU_appu's avatar
APPU_appu
Icon for Occasional Contributor rankOccasional Contributor
4 years ago

Hii @Deshi_Intel

Thanks for reply

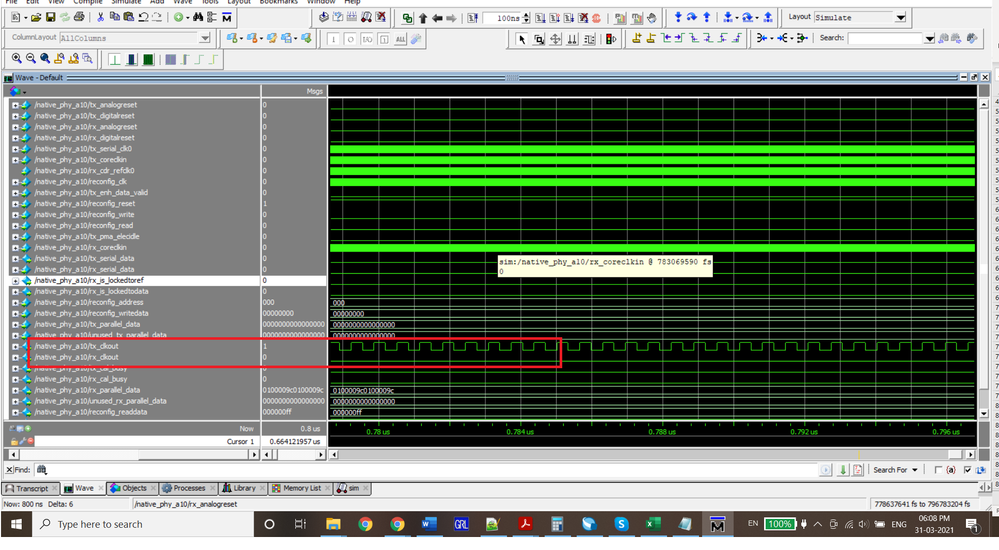

Please check this one

iiwan's avatar
iiwan
Icon for New Contributor rankNew Contributor
4 years ago

I see, that reconfig_reset is 1, and rx_locktodata and rx_locktoref is 0. I never sim native phy, but at hardware if this signals are 0, i think that it does not generate you rx_clkout. And I think if tx_clkout is good, that means, that refclk is good. And I think you have to send some serial to your rx_serial_data at high freq clock.
