Cyclone V: Meeting timing with HMC and DDR3-800?

Hi,

I'm using a Cyclone V-SE and trying to implement a HMC targetting a DDR3-800. After plugging in all the values from the vendor datasheet and running the whole compilation flow I can't get the design to meet timing (DDR Read Capture hold constraint fails miserably).

First of all I want to know if this is actually possible. If so, what are the main parameters used in the Read Capture setup/hold analysis?

Kind regards

3 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    6 years ago

    Just to make sure your device can support this, fill out the spec estimator and check the results:

    https://www.intel.com/content/www/us/en/programmable/support/support-resources/support-centers/external-memory-interfaces-support/emif.html

    Since you're using an SoC device, are you using the HPS hard controller, an FPGA hard controller, or a soft controller?

    Are you running your user logic half-rate or quarter rate (if supported for your particular configuration)?

    #iwork4intel

    • jrrguzman's avatar
      jrrguzman
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      Hi @sstrell​

      I've checked the link and in principle I should be able to run DDR3-800 (400MHz)

      I've got the HPS running at DDR3-800 without a problem. However I also want to use the FPGA HMC and drive another DDR3-800 memory chip. However, after pluggin in the values from the manufacturer, the Read Capture hold analysis has a 7 ps violation.

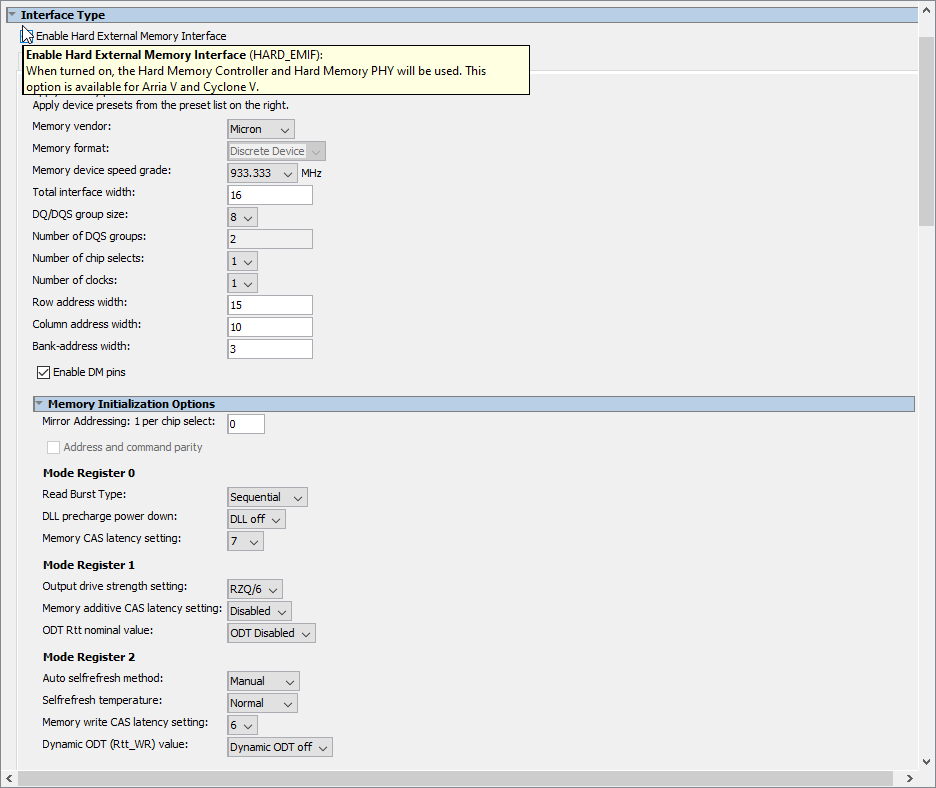

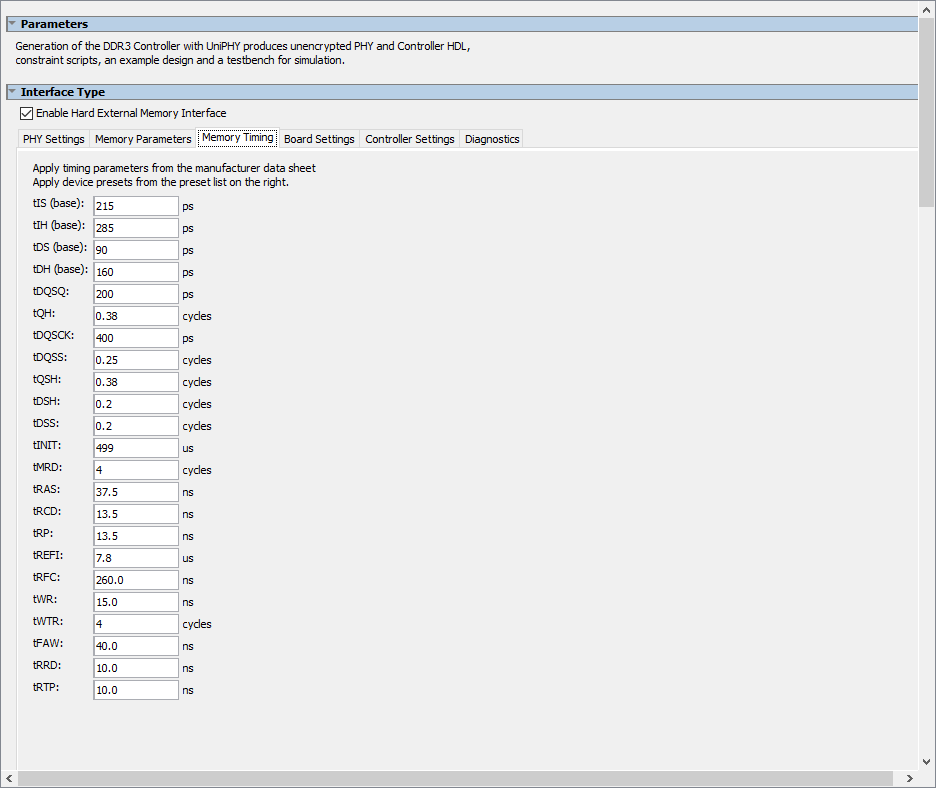

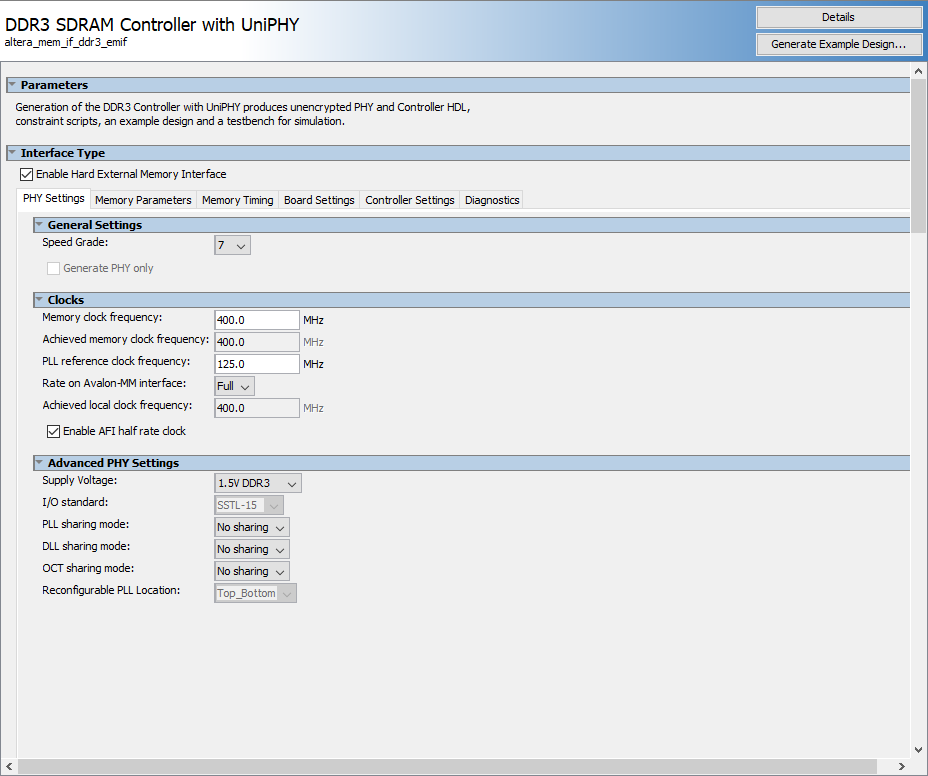

      In principle, the HMC for Cyclone V only allows full data rate on the user logic. I've included the current configuration (maybe you can spot what's the issue)

      Cheers.
