Bug in HDMI TX IP preventing back-to-back writes to HDMI I2C master

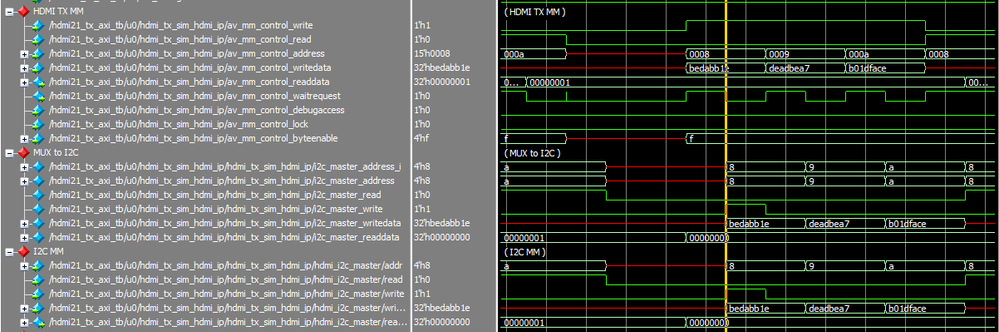

HDMI IP 23.2-19.7.2, being configured as Source/TX with FRL support, AXI4S video interface (VVP Full), and I2C master, does not accept back-to-back writes to I2C master registers. The attached simulation waveform demonstrates that only one write strobe (Avalon MM write pulse) was passed through the DEMUX to the I2C master, while the external Avalon MM master performed three writes (to SCL_LOW, SCL_HIGH, and SDA_HOLD). Registers read back sequence confirms that only the first register in the write sequence, SCL_LOW, is modified.

 

Video

6 Replies

  • Talavai's avatar
    Talavai
    Icon for New Contributor rankNew Contributor
    2 years ago

    Interleaving writes with reads could be used as a workaround for the bug.

  • ZH_Intel's avatar
    ZH_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi Talavai,

    Thank you for reaching out.

    Just to let you know that Intel has received your support request and currently we are confirming the details with our internal team.

    I shall come back to you with findings.

    Thank you for your patience.

    Best Regards,

    ZulsyafiqH_Intel



  • ZH_Intel's avatar
    ZH_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi Talavai,

    Thank you for your report.

    Based on the discussion with our internal team, we acknowledge your concern on this issue.

    We will report it to our internal team to be fix in future release.

    Please use the workaround you mentioned to go ahead.
