Avalon Streaming sink and source state machines

Sampling streaming data is easy since it is synchronous to the clock. In an always block with the condition of posedge clk, you would check if your valid signal is asserted. Then you would read the data.

Something like this

wire [width-1:0] d;

reg [width-1:0] dout;

assign d = data_in;

always @(posedge clk) begin

if (snk_valid) begin

dout <= d;

end

end

You can add reset (negedge rst_n) to make the logic more robust.

For the FSM you need to set up your state machine in a combinatorial always block. It is similar to the one above (which is sequential) but instead of using the clock as your condition (sensitivity list), you will use state and the regs that affect your state. In this always block you will determine next_state based on current state and changes in your sensitivity list regs. Then you will need a second combinatorial always block that describes what to do when you enter each state (this is done by using the case statement).

This link has a good overview of FSMs in verilog: http://inst.eecs.berkeley.edu/~cs150/sp12/resources/fsm.pdf

--- Quote Start ---

Sampling streaming data is easy since it is synchronous to the clock. In an always block with the condition of posedge clk, you would check if your valid signal is asserted. Then you would read the data.

--- Quote End ---

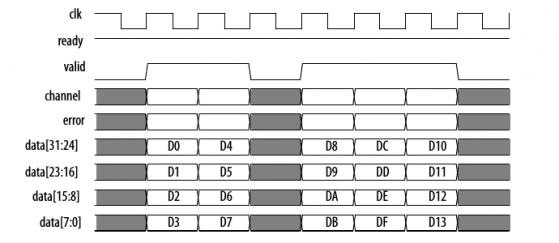

So, from documentation I got only following instructions.http://www.alteraforum.com/forum/attachment.php?attachmentid=10729&stc=1

All transfers of an Avalon-ST connection occur synchronous to the rising edge of the associated clock

signal. All outputs from a source interface to a sink interface, including the data, channel, and error

signals, must be registered on the rising edge of clock. Inputs to a sink interface do not have to be

registered. Registering signals at the source facilitates high frequency operation.

I am not an experienced fpga developer, but an electronic engineer. From timing diagram it seems that I should sample data at falling edge. But from documentation and following your sugestion It seems right to sample data at rising edge and to registering outputs synchronously at rising edges.

This last part seems not compliant to what you are suggesting for output data on the state machine. I don't understand if I am not following documentation or if there is a lack on it. Anyway official shared code from altera could provide the solution.

Hope I am getting right :)

Thank you Krasner.

Altera documentation is notoriously bad, at least in my experience. So try reading the latest versions of documentation.

Avalon streaming data is sampled on rising edge as is shown in your figure. Which part seems no compliant? Is it the FSM part?

Seeing as you are trying to make a Moore state machine you would have 2 state (state1, state2) and transitioning between these states depends on your input X.

To do this you need first sample your stream and store the value into reg X. Then your FSM would transition based on your X changing.

The first part will be the same as before:

wire [width-1:0] d;

reg [width-1:0] X;

assign d = data_in;

always @(posedge clk) begin

if (snk_valid) begin

X<= d;

end

end

Then we need to define the FSM:

a) define state and next_state

reg [1:0] state (since you have two states 01 and 10)

reg [1:0] next_state

parameter state1 = 2'b01;

parameter state2 = 2b'10; (just assigning values to our state names)

b) define how the FSM changes state. Here we use the combinatorial always block:

always @( state or X) //our sensitivity list is state or X

next_state = 0;

case(state) //now we look at what state comes next

state1: //lets say that if X = 0 then we keep the same state, if X = 1 we go to state2

begin

if( X == 1 )

next_state = state2;

else

next_state = state1;

end

state2:// same idea for state2

if (X == 1)

next_state = state1;

else

next_state = state2;

end

endcase

end

c) We defined next_state so we have to update state

always @(posedge clk)

begin

state <=next_state

end

d)Now we define what to do when we are in each state. Since we are outputing an avalon stream we want this to be clocked and i guess in sync with the incoming valid signal

reg dout;

always @(posedge clk) //clocked process

begin

if (snk_valid) begin //sync signal to valid of input

case(state) //again we will do a case statement for the states

state1:

dout <= "Some output"

state2:

dout <= "Some other output"

default:

dout< = 0;

endcase

end

end

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

So you see we have 4 subsections:

1) sample incoming data

2) define transitions of FSM states

3) update current state

4) define functions during each state

Let me know if these looks reasonable

--- Quote Start ---

So, from documentation I got only following instructions.http://www.alteraforum.com/forum/attachment.php?attachmentid=10729&stc=1

All transfers of an Avalon-ST connection occur synchronous to the rising edge of the associated clock

signal. All outputs from a source interface to a sink interface, including the data, channel, and error

signals, must be registered on the rising edge of clock. Inputs to a sink interface do not have to be

registered. Registering signals at the source facilitates high frequency operation.

I am not an experienced fpga developer, but an electronic engineer. From timing diagram it seems that I should sample data at falling edge. But from documentation and following your sugestion It seems right to sample data at rising edge and to registering outputs synchronously at rising edges.

This last part seems not compliant to what you are suggesting for output data on the state machine. I don't understand if I am not following documentation or if there is a lack on it. Anyway official shared code from altera could provide the solution.

Hope I am getting right :)

Thank you Krasner.

--- Quote End ---

If you're doing things inside the the FPGA, on the same clock, for all logic you should be sampling on the rising edge of the clock. The timing analyser will tell you if there are any setup violations, which can then be fixed in your code, usually with more pipelining.

The timing diagram you see is a digital logic waveform, not a fully timed interface specification, because it is not needed.

--- Quote Start ---

Altera documentation is notoriously bad, at least in my experience. So try reading the latest versions of documentation.

--- Quote End ---

It is usally far better than Xilinx documentation!
