Accessing Cyclone V SOC I/O Pins for Boundary-Scan Testing

Question

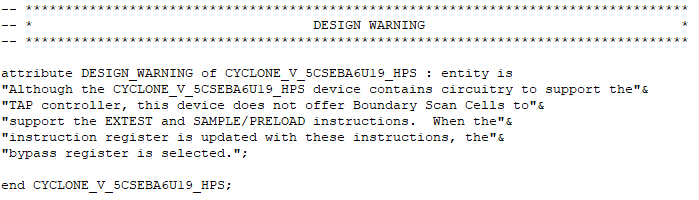

Hello,We have Cyclone V SOC FPGA (5CSEBA6U19I7SN) and we want to test HPS pins using Boundary-Scan Test. There is a warning in the 5CSEBA6U19_HPS.bsd file as shown in attached IMAGE1. The question I want to ask, can we test HPS pins using Boundary-Scan Test? According to link shown below, we can test HPS pins using Boundary-Scan Test. But the warning in the bsdl file confused us.https://www.intel.com/content/www/us/en/programmable/support/support-resources/knowledge-base/solutions/rd03222013_387.html

sreekumarr_g_intel · Answer

Would it possible to share the bsdl file generated from the tcl console ? As of I read through the document looks it will support the hps pins via FPGA fabric.Thank you, Regards,Sree

aince · Answer

Thank you for your reply,In the attached .zip file, there are 3 bsdl files. Two of them are 5CSEBA6U19.bsd and 5CSEBA6U19_HPS.bsd and I downloaded them from the link below. https://www.intel.com/content/www/us/en/programmable/support/support-resources/download/board-layout-test/bsdl/cyclone-v.html5CSEBA6U19I7S_pre.bsd is generated from the Quartus II TCL Script tool.

sreekumarr_g_intel · Answer

sorry for very late response ;I looked at the HPS bsd files , i believe the warning your are getting since hps files are using the hps jtag , but  as i mentioned already you have to map hps pin to FPGA fabric and use the fpga bsd file .Kindly let me know your thought on the same ?Thank you, Regards,Sree

Forum Discussion

Accessing Cyclone V SOC I/O Pins for Boundary-Scan Testing

3 Replies
