USB Blaster III Pin connection

Question

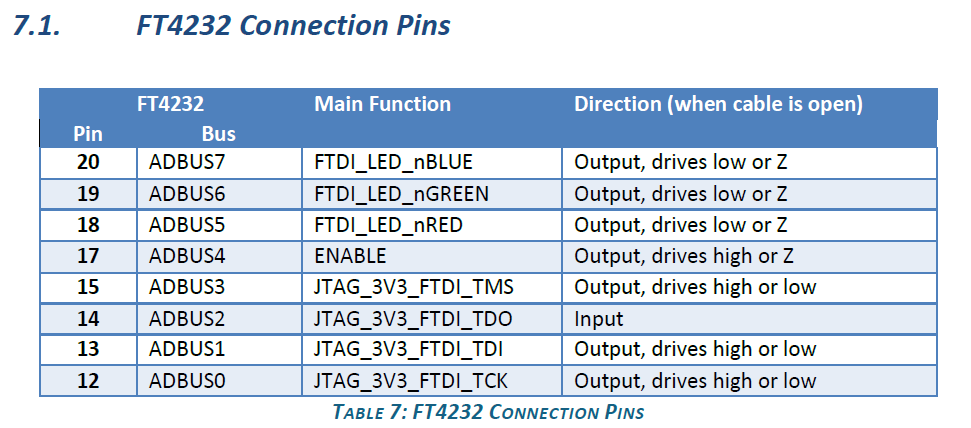

Hi,Onboard_USB3_Instructions_11Dec24.pdf document pinout for FT4232 Connection, some pins are not matching with AGILEX™ 5 FPGA E-SERIES 065B MODULAR DEVELOPMENT KIT - SOM&nbsp; schematic. Please let me know which one we need to fallow. Example ENABLE Pin.And&nbsp;LED Connections i can fallow as per below table ? is there any proven reference with LEDs ?Regards,Manu

aqidayman_altera · Answer

Hi Manu,
&nbsp;
May I know where you get the document regarding the FT4232 Connection?

manu2 · Answer

Dear Aqid,https://community.altera.com/discussions/quartus-prime/is-there-a-specific-driver-for-the-usb-blast…Regards,Manu

aqidayman_altera · Answer

Dear Manu,
&nbsp;
I got info that the schematic that you refer was designed before the USB3 specification in place. The upcoming production version of this development kit should follow the USB3 specification.
&nbsp;
So, to answer your question, you can follow the USB3 specs.
