Cannot program cyclone IV with USB blaster

Hello,

I have an Altera Cyclone IV EP4CE6E22C8N board which supports programming via JTAG USB, and so I have a USB blaster revision C and connected it to the JTAG port and installed the drivers for it through the Quartus Prime installer, but unfortunately every time I try to use the programmer with it plugged in, it hangs for a while then prints an error saying "Attempted to access JTAG server -- internal error code 82 occurred", running jtagconfig also says: "Error when scanning hardware - Server error", device manager also shows only USB blaster when as far as I know it should also be showing additional entries such as JTAG interface?

I tried different drivers but to the same effect, reinstalling quartus prime and all the drivers, no luck. I also tried running a windows 7 VM and installing quartus prime and the programmer drivers on there in case it was a compatibility issue, but the same happens, server says "server error" and the programmer hangs.

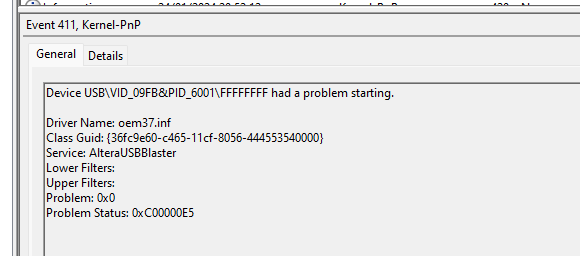

I looked in event viewer and the driver appears to be outputting errors:

I have also tried to install the drivers manually through the quartus prime 23 install directory.

I'm really not sure what to do anymore, hoping someone with more experience can help.

Thank you!

I am running Windows 11, X86 of course.

Board Debug
  • Jacek159's avatar
    Jacek159
    2 years ago

    Hello, yes!

    It turns out the USB blaster I ordered was defective, trying it with a replacement it worked no problem.

    Additionally, for future reference, the defective one did not have a constant shining "ACT" light, and Windows event viewer reported status code 0 as problem starting.

    Thanks!
