USB Blaster III Pin connection

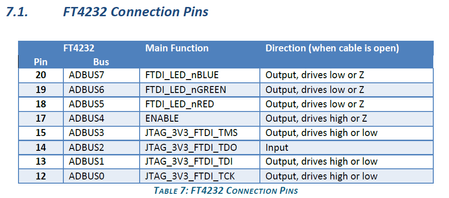

Hi, Onboard_USB3_Instructions_11Dec24.pdf document pinout for FT4232 Connection, some pins are not matching with AGILEX™ 5 FPGA E-SERIES 065B MODULAR DEVELOPMENT KIT - SOM  schematic. Please let me ...
Configuration
Programmable Logic Device
AqidAyman_Altera's avatar
AqidAyman_Altera
Icon for Regular Contributor rankRegular Contributor
3 months ago

Dear Manu,



I got info that the schematic that you refer was designed before the USB3 specification in place. The upcoming production version of this development kit should follow the USB3 specification.



So, to answer your question, you can follow the USB3 specs.
