Qsys/Platform Designer does not generate submodule files when using two Avalon MM Slaves

I have created custom Avalon MM slaves. I want to connect them to a Master.

The Qsys/Platform Designer tool does not generate submodule files when more than one Avalon slaves are connected to Avalon Master.

It generates all files when using only single Avalon MM slave.

Is this a problem with Quartus/Platform designer/Qsys tool or Custom component?

Any help is appriciated.

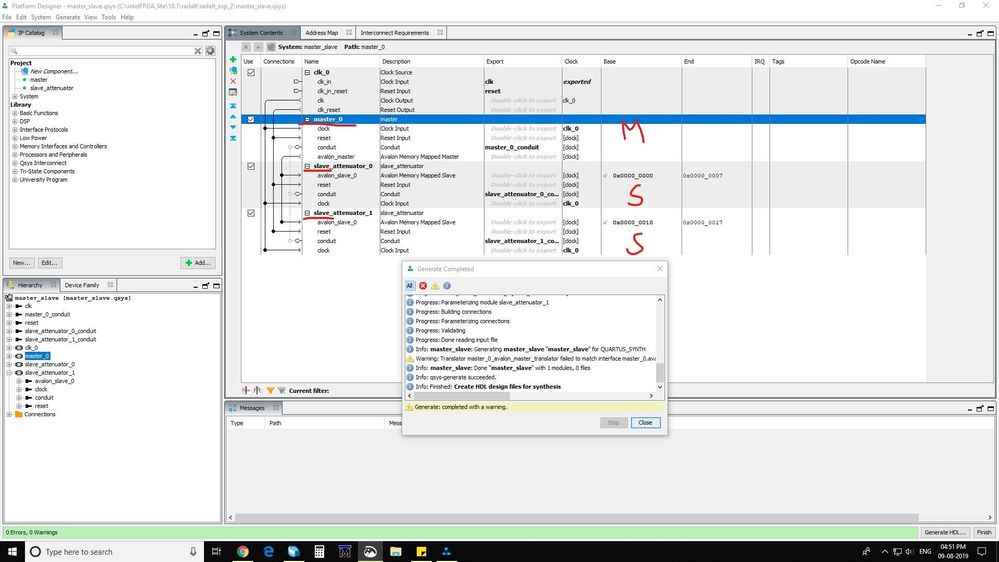

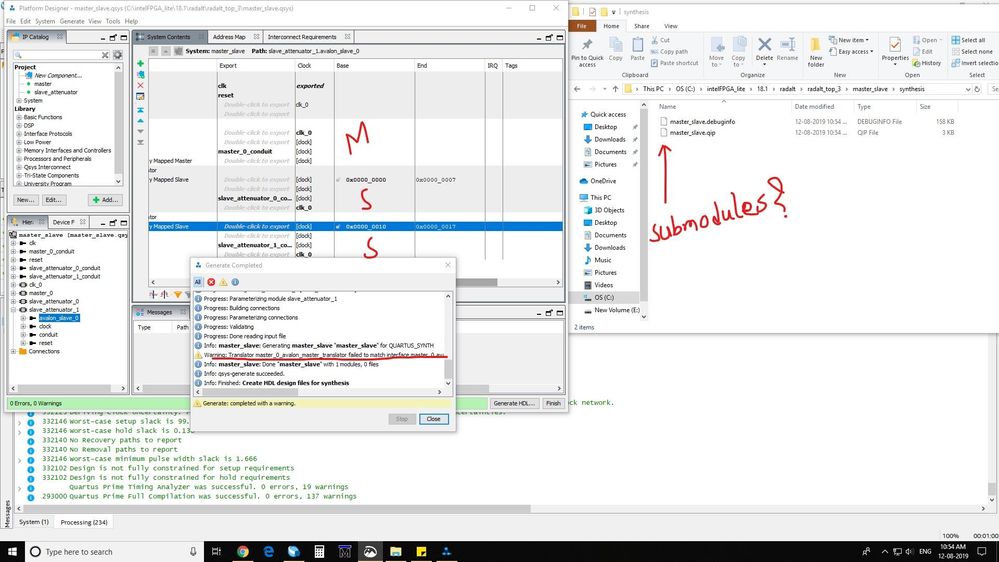

Image 1: here you can see 1 master and 2 slaves. I clicked "Generate"

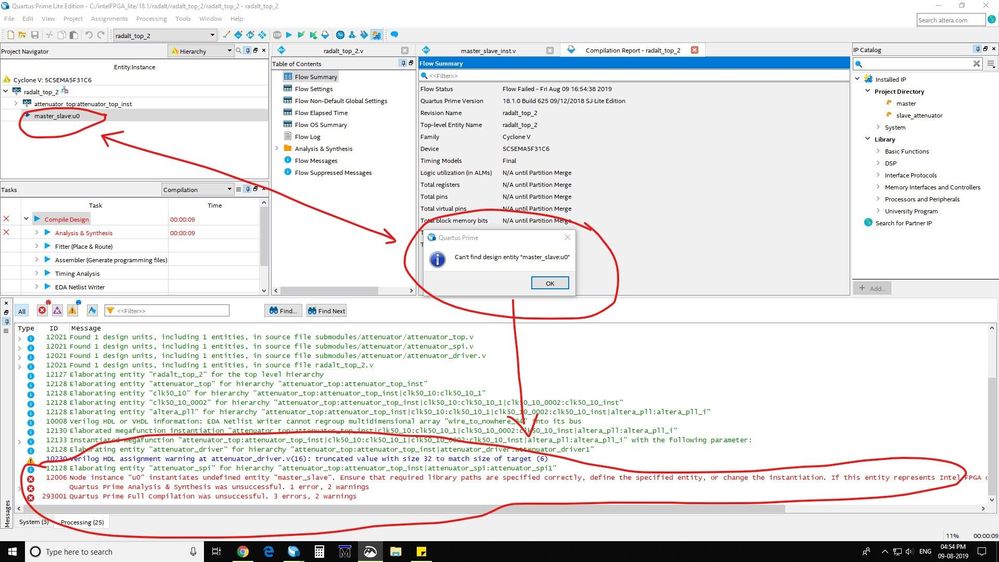

Image 2: After copiyng instantiation, getting error while compiling project

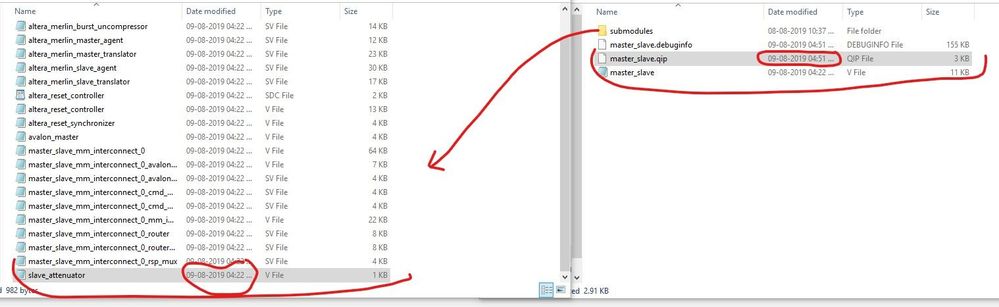

Image 3: See the time for QIP file(updated) and Submodules folder (not updating)

I am able to complete the design with 1 slave, but cant do with 2 slaves.

Any solution ?

14 Replies

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi,

    Quartus/Platform designer/Qsys tool will generate all the required files.

    1. include the .v/.vhd file of your Custom component (Project navigator->files-?add/remove files in the project)
    2. Quartus will update only the required files after changes which also saves the generation or compilation time. However, you can delete the folder/file and regenerate.

    Regards

    Anand

    • NShin3's avatar
      NShin3
      Icon for New Contributor rankNew Contributor
      6 years ago

      Hello Anand,

      I followed this process but still have the same problem.

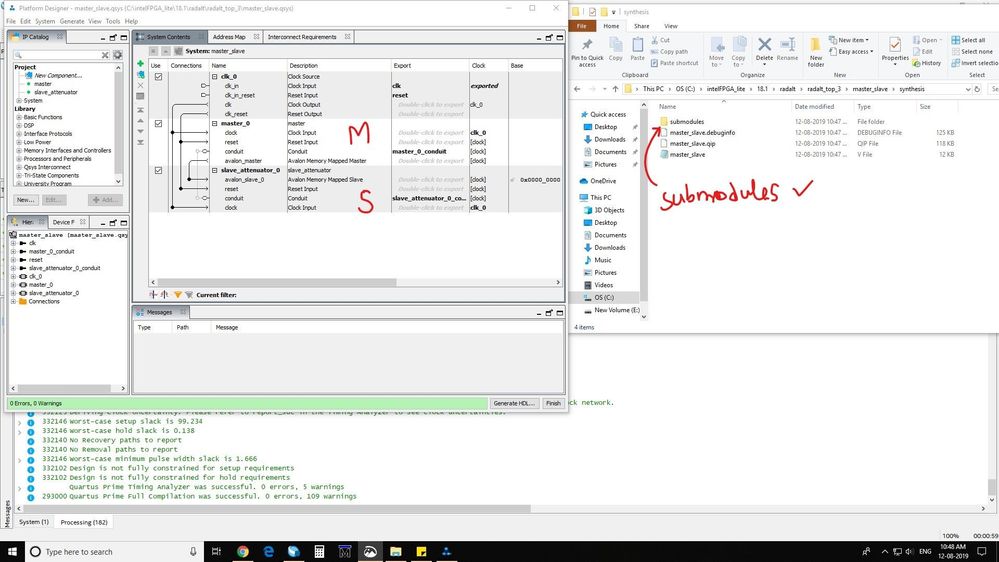

      Image 1 : Single Avalon MM slave.

      -- Submodules folder generated with all sub files.

      -- inst file is also generated.

      Image 2 : Two Avalon MM slaves.

      -- No Submodules folder generated.

      -- No inst file.

      -- Only QIP file.

      Thanks and Regards,

      Niranjan

      • AnandRaj_S_Intel's avatar
        AnandRaj_S_Intel
        Icon for Regular Contributor rankRegular Contributor
        6 years ago

        Hi,

        May be due to custom component.

        follow the steps from below file.

        Can you share the project?

        Regards

        Anand

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    6 years ago

    Very strange. Do you only have this issue when you connect two or more of the same component to the master? If you connect this custom component and some other component to the same master, does it generate OK?

    I would try deleting the custom component's _hw.tcl file, and then go through the Component Editor again. It doesn't make sense that one instance works but more than one doesn't.

    Also, maybe you could post the Avalon interface part of the code for the custom component. Maybe there's an issue with how you've set up the Avalon signaling. It might also be useful to see how you've configured the Signals & Interfaces tab of the Component Editor.

    #iwork4intel

    • NShin3's avatar
      NShin3
      Icon for New Contributor rankNew Contributor
      6 years ago

      Hi,

      Thanks for the suggestion.

      I have attached Avalon MM master and two slave Verilog files.

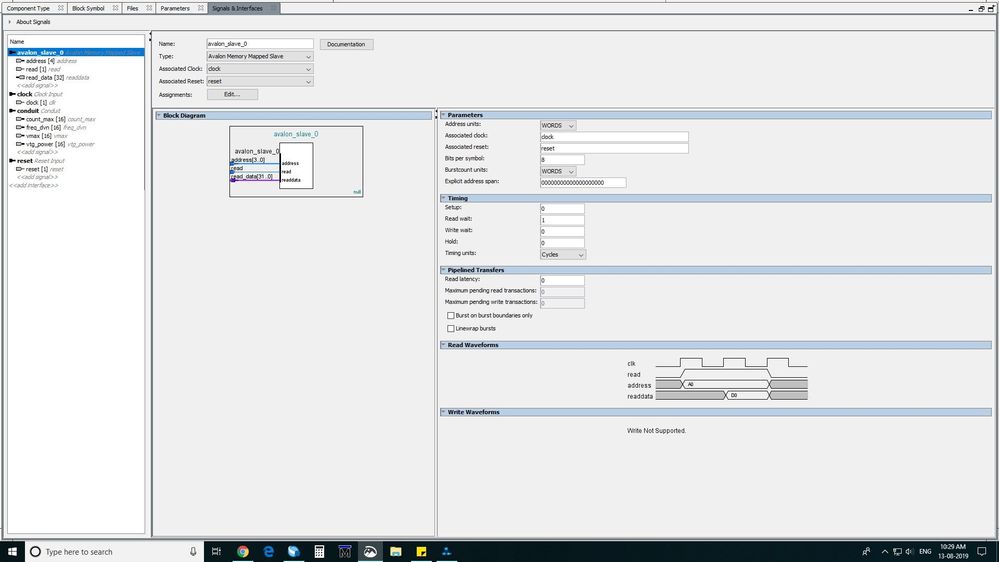

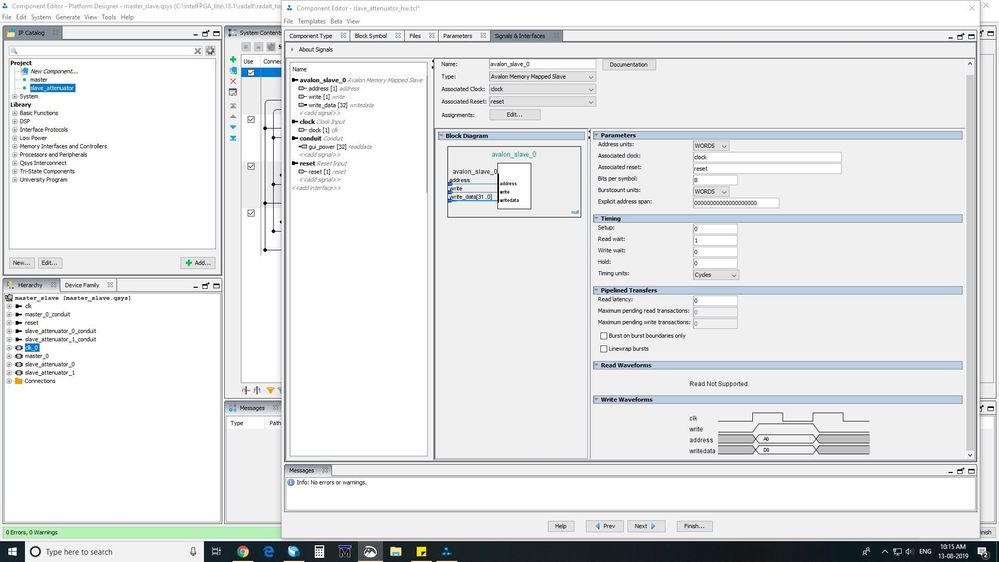

      Slave : read only, with signals and interfaces

    • NShin3's avatar
      NShin3
      Icon for New Contributor rankNew Contributor
      6 years ago

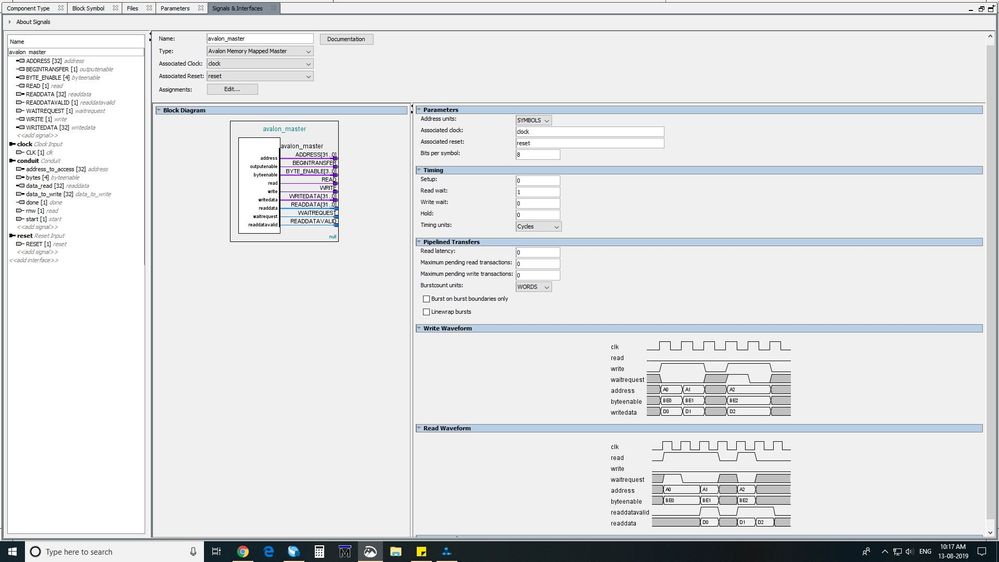

      This is master signals and interface tab with code.

      Conduit signals are for Controlling master through FPGA switches.

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi,

    1. Your Custom component with Avalon MM design is not complete/ correct.
    2. You can use Noss ii or JTAG to Avalon master bridge and check it will generate all the file for any number of slave.

    Also, refer to Avalon interface specification & template.

    https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/manual/mnl_avalon_spec.pdf

    https://www.intel.com/content/www/us/en/programmable/support/support-resources/design-examples/intellectual-property/embedded/nios-ii/exm-avalon-mm.html

    Regards

    Anand

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    6 years ago

    You didn't mention that the master was custom as well, but I don't think the master is the issue. However, what is the rest of that warning message you get when trying to generate the system? It's cut off in your screenshot.

    In your attenuator component, unless it's an error, the address input isn't doing anything since you write the same data to reg0 no matter the address. You could remove the address input to the component.

    I'd still try going through the component editor again and recreating the _hw.tcl files and saving and regenerating the system.

    #iwork4intel

    • NShin3's avatar
      NShin3
      Icon for New Contributor rankNew Contributor
      6 years ago

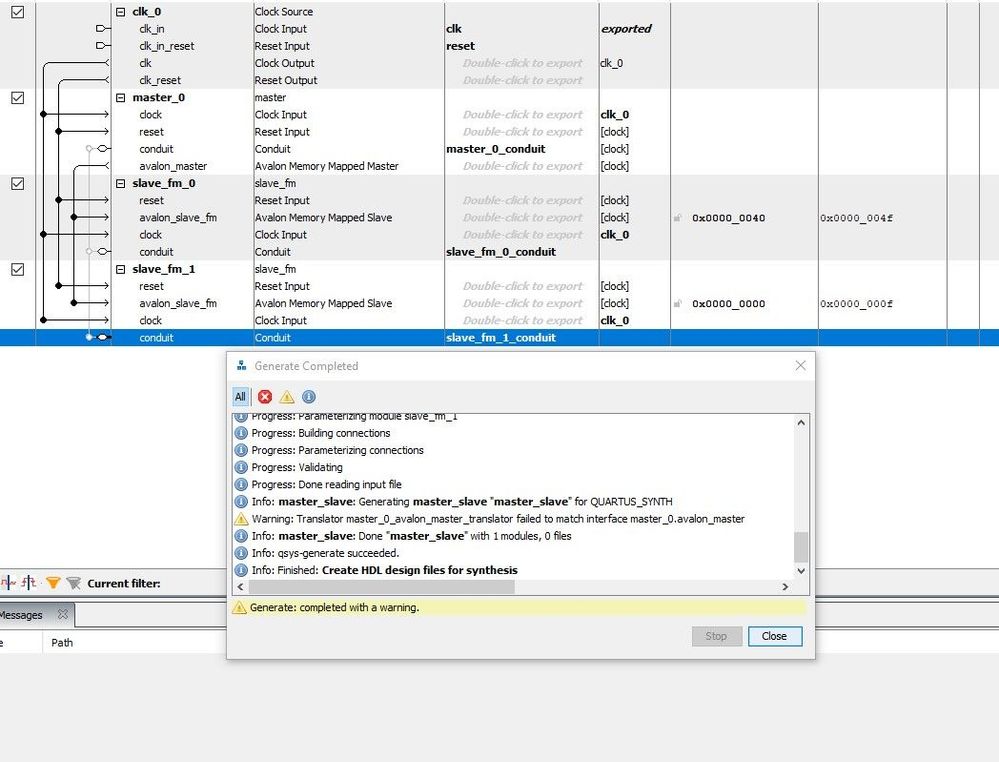

      Warning: Translator master_0_avalon_master_translator failed to match interface master_0.avalon_master

      -- I tried going through the component editor again and recreating the _hw.tcl files and saving and regenerating the system.

      Still same warning same problem.

      -- For attenuator component which has no effect of address, if i dont use address then how master will identify it ? there should bre address/ location to differentiate with other slave, right ?

      • sstrell's avatar
        sstrell
        Icon for Super Contributor rankSuper Contributor
        6 years ago

        With only a single addressable location, you don't need the address signal in the component. You'd still give a unique address in Platform Designer when building a system which would then handle which of multiple slaves to access in the interconnect.

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi,

    Basically Avalon master translator converts the Avalon-MM master interface to a simpler representation for use in Qsys, for more information refer Quartus user guide.

    Try to compare the design with Avalone memory-mapper master template.

    https://www.intel.com/content/www/us/en/programmable/support/support-resources/design-examples/intellectual-property/embedded/nios-ii/exm-avalon-mm.html

    https://www.intel.com/content/www/us/en/programmable/documentation/zcn1513987282935.html

    Regards

    Anand
