New ContributorMy verilog code work in stimulation but not working in hardware
This is my assignment that required to design a traffic light with delays, display countdown with 7 segment display. My verilog code is working in stimulus using Modelsim but not working in Hardware(Cyclone II EP2C35F672C6N), I can't find where is the problem causing this.
Every component have tested individually in modelsim and get the ideal output.
Troubleshooting for hardware:
- Output the is5, is0 signal using led - no problem, its working it can detect 5 and 0
- Output sel, load and countstrt signal - stuck at countstrt = 1, seems like stuck at Sd1
- After changing the counter code the counter count from 9 when it reach 5 OUTH=100, and OUTC = 000 which is wrong and stuck at 00 for not moving to another state
- The counters are working but the fsm seems like not working properly. It is not FPGA board problem. I try on 2 different boards and get the same output.
- The clk are working cuz the one hot counter does count correctly(clk_0.5s) and another counter countdown in DP1 is working too( -1 every second)
- After display the state using LED, I found that the state stuck at S1 (S0 -> S1 -> Sd1(reach 5 OUTH=100, and OUTC = 000) -> S1)

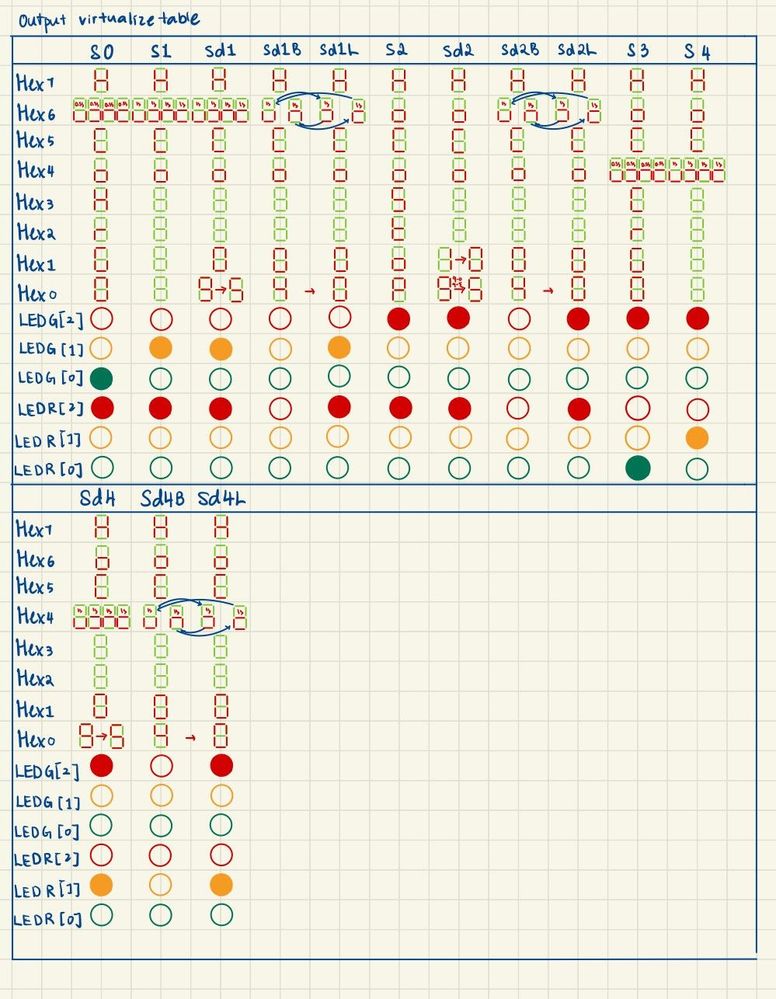

- I had tried to test my fsm code using the fpga board and it works Output virtualize table
Hi,
project source files are incomplete, e.g. many missing modules, e.g. max21_param, counter, comparator_equal, buffer, thus can't check the design.
Notice that you don't have a testbench for top level design, without simulating the full design succesfully you can't claim that it simulates o.k.
A possible source of hardware-to-simulation mismatch is the use of ripple clocks clk_0_5s and clk 1s that may cause timing failure. Better use one system clock (50 MHz clock) together with low frequency clock enable pulses.
