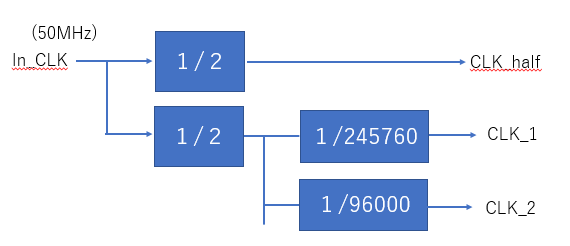

New ContributorIn the case of the circuit shown in the figure, how should the timing constraint be set?
Do CLK_1 and CLK_2 need timing constraints?
create_clock -name {in_CLK} -period 20.0 [get_ports {in_CLK}]
create_generated_clock -name {CLK_half} -source [get_ports {in_CLK}] -divide_by 2 -master_clock {in_CLK} [get_nets{CLK_half}]
New Contributor
Super ContributorYes, all clock domains need constraints.
If you are using a PLL to create these clocks, you can simply use derive_pll_clocks. If you are not using a PLL, you will need additional generated clock constraints for clk_1 and clk_2 (and possibly that other clock that generates clk_1 and clk_2).
See the unconstrained paths report in the timing analyzer to see which clocks are considered unconstrained, if any.
New Contributorhi, Thank you for answering.
PLL is not use.
Generate the clock with the logic I created.
clk_1 is 132Hz
clk_2 is 339Hz
Clk_1 and clk_2 were not pointed to unconstrained paths in the timing analyzer.
Is there no timing constraints for such a low speed clock?
Super ContributorUnconstrained clocks are reported based on them driving the clock inputs of registers or other clocked logic. Even super slow clocks should have timing constraints for completeness.

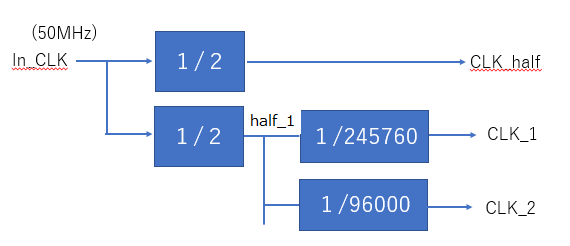

New ContributorIs this the right way to set timing constraints on CLK_1?
create_generated_clock -name CLK_1 -source [get_registers {yyy:xxx|half_1}] -divide by 245760 [get_registers {yyy:xxx|CLK_1}]
Super ContributorYes, that's the idea, though like I said, you probably have to create a clock for half_1 as well.
