How to measure distance between two data

do you really calculate square root in HDL?

I recommend you to use NiosII CPU ( or other CPU )

and get result in software ( like C-language ).

but, you insist to get result in HDL.

there is IP-core such as ALTFP_SQRT ( and other floating-point functions ).

both way are tough for newbie.

let study.

hi akira

thanks for reply

first i want to know how to create table using vhdl,then calculate the distance between the position of each element in s1 and the position of the same element in s2 then find normalized distance

you can create onchip(or external)RAM.

and you can create ram -initializ like following (this is verilog-HDL sorry)

////////////////////////////////////////////////////////////////////////////////////////////////

reg [WORD_WIDTH-1:0]pattern_rom[0:2**ADDR_WIDTH];

initial $readmemh( "ROM_HEX_FILE.txt",pattern_rom);

reg [WORD_WIDTH-1:0]outbuff;

always @ ( posedge csi_clk )

begin

outbuff <= pattern_rom[reg_read_addr];

end

assign wir_read_data = outbuff;

////////////////////////////////////////////////////////////////////////////////////////////////

ROM_HEX_FILE.txt is initial data of pattern_rom.

anyway, there is a way you can create table.

but I am not sure you really have big enough memory on your FPGA.

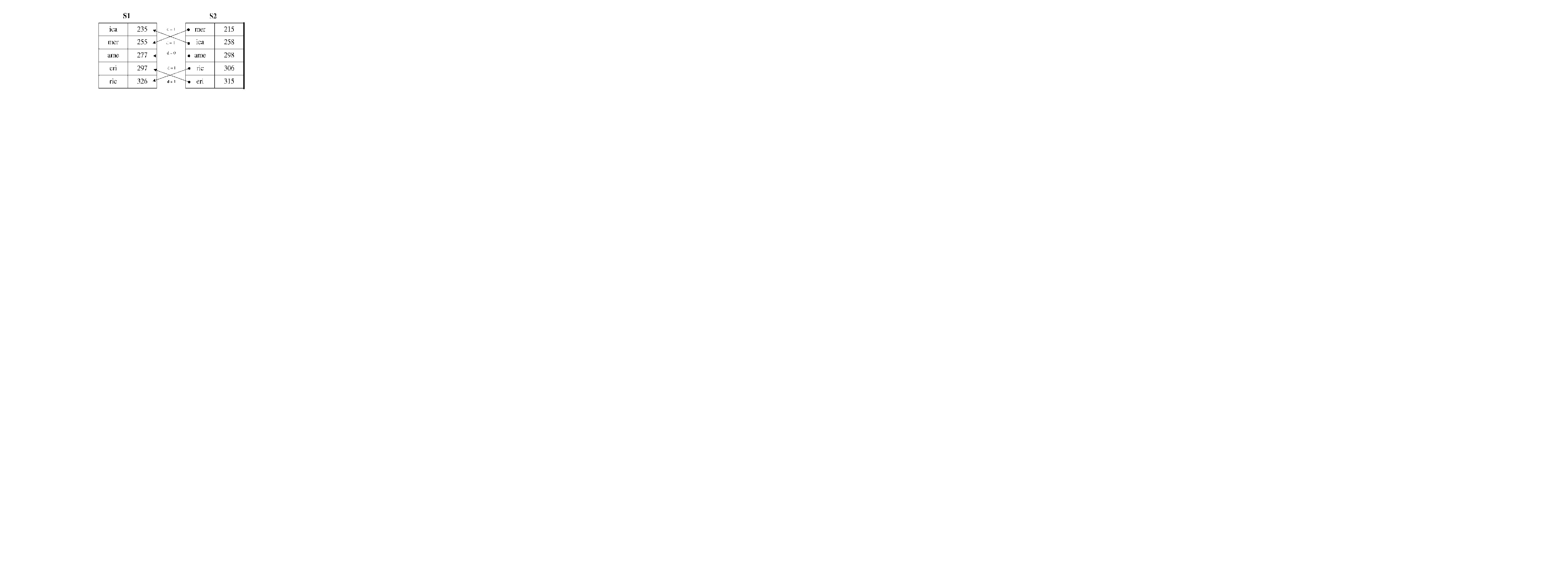

d(s1,s2) is the distance between the position of each element in s1 and the position of the same element in s2

which is 1+1+0+1+1=4 then divided by (n^2-1)/2 where n is the number of elements in table

sorry for not clear at first. i want to make a vhdl code for that

so i need help

--- Quote Start ---

d(s1,s2) is the distance between the position of each element in s1 and the position of the same element in s2

which is 1+1+0+1+1=4 then divided by (n^2-1)/2 where n is the number of elements in table

sorry for not clear at first. i want to make a vhdl code for that

so i need help

--- Quote End ---

So in the given case you have the given distances as 1+1+0+1+1 (n = 5) so distance = 1+1+0+1+1 = 4 then normalised to 5^2-1/2 i.e. /12

=.333

is n constant 5 always. How do you get the positions of 1,1,0,1,1? are these five inputs?

Once you are clear about the requirement then you can go for coding.

first n is not constant it depend on table element which is definitely changed .

second , the position of each element corresponding to the same element in the other table

i wrote a code put didn't know ,is it right? give a code for every element in table

library IEEE;

use IEEE.STD_LOGIC_1164.all;

package profile_A is

type A1 is array (0 to 4) of std_logic_vector( 23 downto 0);

constant table1:A1:= ("011010010110001101100001","011011010110010101110010",

"011000010110110101100101","011100100110100101100100","011001010111001001101001");

type A2 is array (0 to 4) of std_logic_vector( 23 downto 0);

constant table2:A2:= ("011011010110010101110010","011010010110001101100001",

"011000010110110101100101","011001010111001001101001","011100100110100101100100");

end profile_A;

----------------------------------------------------------------------------

library IEEE;

use IEEE.STD_LOGIC_1164.ALL;

use IEEE.STD_LOGIC_ARITH.ALL;

use IEEE.STD_LOGIC_UNSIGNED.ALL;

use work.profile_A.all;

entity samples is

port ( s1:in A1;

s2: in A2;

clk:in bit;

distance:out integer);

end samples;

architecture Behavioral of samples is

signal d :integer ;

begin

process(clk,s1,s2)

begin

for idx in 0 to s1'length loop

if (clk='1'or clk'event) then

if s1(idx)=s2(idx)then

d <= idx-1;

end if;

end if;

end loop;

end process;

end Behavioral;

Judging from your code you assume S1/S2 are inputs each 24 bits. However I doubt it.

More likely you enter (n) elements each 24 bits wide into two rom tables (e.g. from a file).

Once you have these two roms then you read rom1 output and check each output against rom2 output until you find a match then the distance is

address2 - address1 then you perform your computation circuitry of adding all results * (n^2-1)/2

The divide by 2 is easiest(just discard 1 LSB from final result).

for n^2-1 use multiplier subtractor directly(multiply n * n) then subtract 1

for final division you will need a divider

thanks kaz , y really helped me

first i tried to make vhdl code for dual port ram because i will compare between two samples ..is it right thing???

but i have a problem when i tray to test the test bench is (all generics must take a default value) here is code i need your help...

library ieee;

use ieee.std_logic_1164.all;

use ieee.std_logic_unsigned.all;

entity bram_tdp is

generic (

DATA : std_logic_vector (0 to 6) ;

ADDR : std_logic_vector (0 to 6));

port (

-- Port A

a_clk : in std_logic;

a_wr : in std_logic;

a_addr : in std_logic_vector(6 downto 0);

a_din : in std_logic_vector(6 downto 0);

a_dout : out std_logic_vector(6 downto 0);

-- Port B

b_clk : in std_logic;

b_wr : in std_logic;

b_addr : in std_logic_vector(6 downto 0);

b_din : in std_logic_vector(6 downto 0);

b_dout : out std_logic_vector(6 downto 0)

);

end bram_tdp;

architecture rtl of bram_tdp is

-- Shared memory

type mem_type is array ( 6 downto 0 ) of std_logic_vector(6 downto 0);

shared variable mem : mem_type;

begin

-- Port A

process(a_clk)

begin

if(a_clk'event and a_clk='1') then

if(a_wr='1') then

mem(conv_integer(a_addr)) := a_din;

end if;

a_dout <= mem(conv_integer(a_addr));

end if;

end process;

-- Port B

process(b_clk)

begin

if(b_clk'event and b_clk='1') then

if(b_wr='1') then

mem(conv_integer(b_addr)) := b_din;

end if;

b_dout <= mem(conv_integer(b_addr));

end if;

end process;

end rtl;

sorry ,,, i found it

i should change

DATA : std_logic_vector (0 to 6) ;

ADDR : std_logic_vector (0 to 6))

to

DATA : integer :=7 ;

ADDR : integer :=7;

but i ask you if i can enter data as in the table i mean word (asd,sdf,rto....etc)

and is it right to use dual port ram

thanks a lot
