Occasional Contributorhow do timing constraint for I2c bus
In my design, I used system clk = 3.125MHz to realize I2c SCL,SDA 200K i2c bus.
I used counter in the verilog, so both SCL and SDA are treated as data line.
Then, how to do timing contraint?
assign eeprom_scl = (eeprom_current_state == EEPROM_STATE_I2C_STAR && stsp_timer[7:0] < 8'd12)? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_STAR && stsp_timer[7:0] > 8'd11)? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_SLAW && data_timer[3:0] < 4'd4 )? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_SLAW && data_timer[3:0] < 4'd12)? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_SLAW && data_timer[3:0] > 4'd11)? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_ACK0 && ackx_timer[7:0] < 8'd4 )? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_ACK0 && ackx_timer[7:0] < 8'd12)? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_ACK0 && ackx_timer[7:0] > 8'd11)? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_REGR && data_timer[3:0] < 4'd4 )? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_REGR && data_timer[3:0] < 4'd12)? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_REGR && data_timer[3:0] > 4'd11)? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_ACK1 && ackx_timer[7:0] < 8'd4 )? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_ACK1 && ackx_timer[7:0] < 8'd12)? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_ACK1 && ackx_timer[7:0] > 8'd11)? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_DATW && data_timer[3:0] < 4'd4 )? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_DATW && data_timer[3:0] < 4'd12)? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_DATW && data_timer[3:0] > 4'd11)? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_ACK2 && ackx_timer[7:0] < 8'd4 )? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_ACK2 && ackx_timer[7:0] < 8'd12)? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_ACK2 && ackx_timer[7:0] > 8'd11)? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_STA2 && stsp_timer[7:0] < 8'd12)? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_STA2 && stsp_timer[7:0] > 8'd11)? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_SLAR && data_timer[3:0] < 4'd4 )? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_SLAR && data_timer[3:0] < 4'd12)? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_SLAR && data_timer[3:0] > 4'd11)? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_ACK3 && ackx_timer[7:0] < 8'd4 )? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_ACK3 && ackx_timer[7:0] < 8'd12)? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_ACK3 && ackx_timer[7:0] > 8'd11)? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_DATR && data_timer[3:0] < 4'd4 )? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_DATR && data_timer[3:0] < 4'd12)? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_DATR && data_timer[3:0] > 4'd11)? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_ACK4 && ackx_timer[7:0] < 8'd4 )? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_ACK4 && ackx_timer[7:0] < 8'd12)? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_ACK4 && ackx_timer[7:0] > 8'd11)? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_STOP && stsp_timer[7:0] < 8'd4 )? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_STOP && stsp_timer[7:0] > 8'd3 )? 1'bz : 1'bz;
assign eeprom_sda = (eeprom_current_state == EEPROM_STATE_I2C_STAR && stsp_timer[7:0] < 8'd8)? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_STAR && stsp_timer[7:0] > 8'd7)? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_SLAW && i2c_send[7] == 1'b1 )? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_SLAW && i2c_send[7] == 1'b0 )? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_ACK0 )? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_REGR && i2c_send[7] == 1'b1 )? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_REGR && i2c_send[7] == 1'b0 )? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_ACK1 )? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_DATW && i2c_send[7] == 1'b1 )? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_DATW && i2c_send[7] == 1'b0 )? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_ACK2 )? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_STA2 && stsp_timer[7:0] < 8'd8)? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_STA2 && stsp_timer[7:0] > 8'd7)? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_SLAR && i2c_send[7] == 1'b1 )? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_SLAR && i2c_send[7] == 1'b0 )? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_ACK3 )? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_DATR && i2c_send[7] == 1'b1 )? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_DATR && i2c_send[7] == 1'b0 )? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_ACK4 )? 1'bz :
(eeprom_current_state == EEPROM_STATE_I2C_STOP && stsp_timer[7:0] < 8'd8)? 1'b0 :
(eeprom_current_state == EEPROM_STATE_I2C_STOP && stsp_timer[7:0] > 8'd7)? 1'bz : 1'bz;
Hello,
Sorry for the late response. You may use set_max_delay instead of set_input_delay since the I2C is pretty slow. You may use below constraint, this is the typical values used.
set_max_delay -from [get_ports {eeprom_scl}] 50
set_min_delay -from [get_ports {eeprom_scl}] 0
set_max_delay -from [get_ports {eeprom_sda}] 50
set_min_delay -from [get_ports {eeprom_sda}] 0
Regards,
Nurina
10 Replies
NurinaRegular Contributor
Hello,
Are you using any IP for this I2C (e.g. HPS)? If no, you will have to apply timing constraints based on the timing violations reported by Timing Analyzer.
Regards,
Nurina
- lipingx
No IP was used.
Could you give suggestion based on my attached code?
Both SDA and SCL are handled by system clock.
- Nurina
Hi,
I don't think you need to add any constraints, unless Timing Analyzer is reporting unconstrained paths/timing violation.

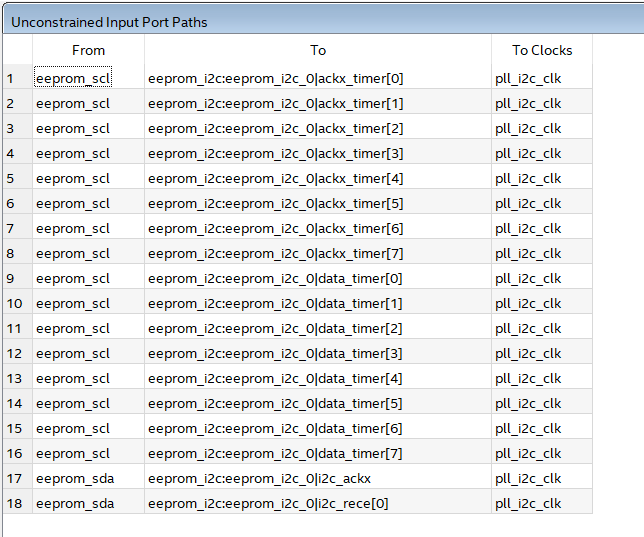

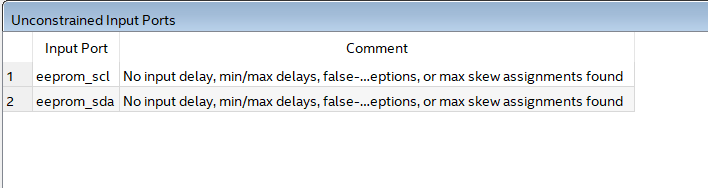

Can you check for unconstrained paths & timing violation and share here?
Regards,
Nurina
- lipingx
- Nurina
Hi,
In this case you just need to add set_input_delay to the eeprom_scl & eeprom_sda ports.
You also need a virtual clock to describe the eeprom_scl (I'm assuming this is a clock): https://www.intel.com/content/www/us/en/docs/programmable/683243/22-3/creating-virtual-clocks.html
You may find below documents useful:
Regards,
Nurina
- lipingx
why use virtual clock?
why not use system clk = 3.125MHz?
- Nurina
Hi,
Missed your comment that mention the scl is running on system clock. I thought this scl pin is the clock signal coming from external device.
You don't need a virtual clock in this case. Just use the system clock.
Regards,
Nurina
- lipingx
could you write an example of by case? thanks!
- Nurina
Hello,
Sorry for the late response. You may use set_max_delay instead of set_input_delay since the I2C is pretty slow. You may use below constraint, this is the typical values used.
set_max_delay -from [get_ports {eeprom_scl}] 50
set_min_delay -from [get_ports {eeprom_scl}] 0
set_max_delay -from [get_ports {eeprom_sda}] 50
set_min_delay -from [get_ports {eeprom_sda}] 0
Regards,
Nurina
