FPGA JTAG Circuit for Cyclone II

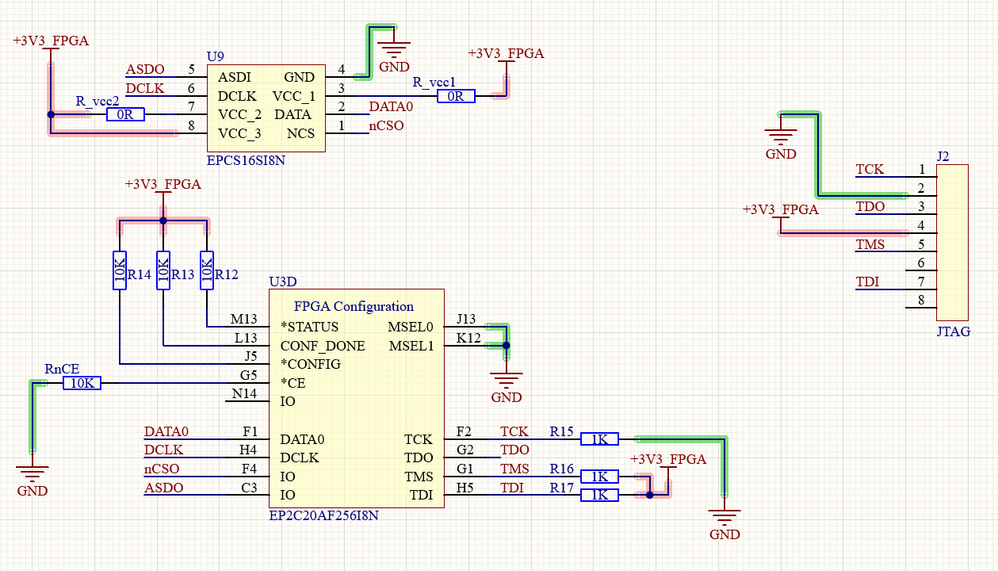

Hi. I am developing a Cyclone II - EP2C20AF256I8N FPGA schematic using the EPCS16SI8N memory. I wanted to know if the following schematic is correct to program it through USB BLASTER ALTERA CPLD. If I have any mistake, could you please correct me?
Is it necessary to put the two headers to record it also by AS?

Board Debug
Configuration
  • FvM's avatar
    FvM
    3 years ago
    Hello,
    the configuration interface is implemented correctly. You don't need a second AS header, flash will be programmed through JTAG by using JTAG indirect configuration.

2 Replies

  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor
    3 years ago
    Hello,
    the configuration interface is implemented correctly. You don't need a second AS header, flash will be programmed through JTAG by using JTAG indirect configuration.
  • NurAiman_M_Intel's avatar
    NurAiman_M_Intel
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    Thank you FvM for sharing the solution.


    I’m glad that your question has been addressed, I now transition this thread to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you.
