FPGA JTAG Circuit for Cyclone II

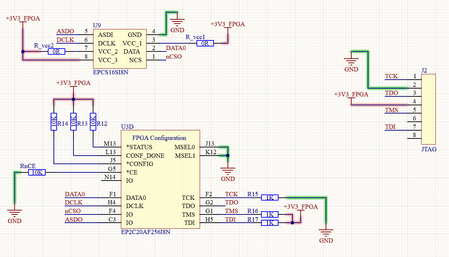

Hi. I am developing a Cyclone II - EP2C20AF256I8N FPGA schematic using the EPCS16SI8N memory. I wanted to know if the following schematic is correct to program it through USB BLASTER ALTERA CPLD. If ...
Board Debug
Configuration
  • FvM's avatar
    FvM
    2 years ago
    Hello,
    the configuration interface is implemented correctly. You don't need a second AS header, flash will be programmed through JTAG by using JTAG indirect configuration.
FvM's avatar
FvM
Icon for Super Contributor rankSuper Contributor
2 years ago
Hello,
the configuration interface is implemented correctly. You don't need a second AS header, flash will be programmed through JTAG by using JTAG indirect configuration.
