Arria 10 SGMII CDR does not lock to data

Hi,

I need a few days to check on the issue that you are seeing.

Also, are you able to see the same issue on Arria 10 SoC dev kit?

Thank you for your response. Unfortunately, I don't have access to an Arria 10 SoC dev kit.

Hi,

We are checking with the internal team working on Transceiver. Our expert will get to you soon.

Thanks for your patience!

Hi Andreas

When rx_is_lockedtodata asserted this would indicates that the CDR PLL is locked to the incoming data rx_serial_data.

As I understood from the problem statement, you observed rx_is_lockedtodata and rx_digitalreset toggling periodically.

1) Does this issue occur when using Arria 10 SX SoC dev kit (in case you have used it), or this only occur in your own hardware?

To narrow down the scope of issue, the suggestion is to perform PHY serial loopback enabled to test the PCS and embedded PMA functions. This is to check if the PCS and embedded PMA could work correctly across multiple reset. To enable serial PHY loopback, set the loopback bit in the PCS control register to 1. //Refer Table 13. TX PMA Optional Ports

//https://www.intel.com/content/www/us/en/docs/programmable/683617/21-1/transceiver-phy-overview.html

See 4.2.9. PHY Loopback of TSE user guide

2) To verify if transceiver calibration was successful, monitor the rx_cal_busy & rx_cal_busy.

Calibration is complete when *_cal_busy is deasserted.

rx_cal_busy: When asserted, indicates RX channel is being calibrated.

tx_cal_busy: When asserted, indicates TX channel is being calibrated.

3) Please also check if your design has any timing violation.

4) Pls try enable 'Use separate TX/RX reset' in the Transceiver PHY Reset Controller IP. If not set, all channels will be reset once loss lock.

See Table 250. General Options of the Arria 10 Transceiver PHY User Guide for the definition.

https://www.intel.com/content/www/us/en/docs/programmable/683617/21-1/transceiver-phy-overview.html

Hi Andreas

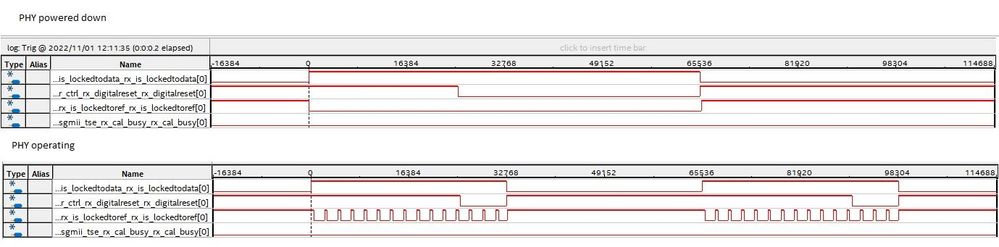

1) Signaltap the PHY rx_is_lockedtoref signal, to see when rx_is_lockedtodata is low, whether the RX CDR still can lock to CDR reference clock or not. If rx_is_lockedtoref still can lock to CDR reference clock, then probably the data is missing somewhere.

2) Check if the actual frequency on the board and PHY match the IP parameters being set when generated.

3) Found below note regarding the 'Manual' option in Reset Controller on page 255 of A10 Transceiver PHY User Guide.

Try set the RX/TX digital reset mode to Manual.

https://www.intel.com/content/www/us/en/docs/programmable/683617/21-1/how-to-implement-pci-express-pipe-in.html

"(2).a. If you are using the Transceiver PHY Reset Controller, you must configure the TX digital reset mode and RX digital reset mode to Manual to avoid resetting the Auto Speed Negotiation (ASN) block which handles the rate switch whenever the channel PCS is reset.

b. When the TX digitalreset is in Auto mode, the associated tx_digitalreset controller automatically resets whenever the pll_locked signal is deasserted. When in Manual mode, the associated tx_digitalreset controller is not reset when the pll_locked signal is deasserted, allowing the user to choose what to do.

c. When the RX digitalreset is in Auto mode, the associated rx_digitalreset controllerautomatically resets whenever the rx_is_lockedtodata signal is deasserted. When in Manual mode, the associated rx_digitalreset controller is not reset when the rx_is_lockedtodata signal is deasserted, allowing the user to choose what to do.

d. If the resets are configured to Auto mode for PIPE designs, then the digital reset will get asserted automatically when the lock signal is deasserted."

I see that you have a question regarding termination for the dedicated GXB reference clock.

The GXB reference clock do indeed provide internal differential terminations and should be AC coupled.

The only IO standard that should be DC-coupled with external terminations is HCSL (HCSL standard is used for PCIE interface).

The proper .qsf assignment to define the clock termination is "XCVR_A10_REFCLK_TERM_TRISTATE" and is shown in Section 8.9.1 of the A10 Transceiver PHY User Guide:

https://www.intel.com/content/www/us/en/docs/programmable/683617/

Example syntax:

set_instance_assignment -name XCVR_A10_REFCLK_TERM_TRISTATE TRISTATE_OFF -to <dedicated refclk pin name>

rx_is_lockedtodata status output port indicates that the RX CDR is currently in lock to data mode or is attempting to lock to the incoming data stream.

Hi,

The problem with the CDR lock was solved by adding load capacitors to the crystal providing the reference clock for the SGMII PHY. Probably the frequency of the reference clock was slightly off. The remaining problem is that I see packets with a wrong CRC on the TX side. RX seems to work fine without any issues. I'm not sure if this is still caused by the reference clock.

The number of erroneous packets decrease when I increase the clock frequency of the 125MHz reference clock for the Arria 10 transceiver by a few ppm. But with +40ppm increased frequency, I again see the issue with the nonlocking CDR. According to documentation, the CDR should lock when the data frequency is in range +/- 1000ppm. Or is that setting different in the TSE MAC?

Thank you and best regards,

Andreas
