Occasional ContributorHI,
VREFB<#>N0 pin and VCCIO differ in what aspects?
What is the purpose of using VREFB<#>N0?
I have read the documentation, but I still do not understand the explanation about VREFB in the document.
Thanks
Hi, I would like to ask if this means NC. Besides enabling VREF NC, do I need to make any additional settings, such as FPGE firmware?
Super ContributorHi,
is the explanation in Pin Connection Guidelines unclear in any regard?
VREFB<#>N0
These pins are dual-purpose pins. For Banks 1A and 1B, VREF pins are shared.
Input reference voltage for each I/O bank. If a bank uses a voltage referenced I/O standard for input operation, then these pins are used as the voltage-reference pins for the bank.
If you are not using the VREF pins in banks or shared banks, connect unused pins as defined in the Intel Quartus Prime software.
When VREF pins are used as I/O pins, they have higher capacitance than regular I/O pins which will slow the edge rates and affect I/O timing.
Are you using voltage referenced I/O standard?
Occasional ContributorThank you for your response.
My confusion lies with the VREF pins. What is their intended purpose when I use them?
Occasional ContributorSuper ContributorNo, as quoted, it's for voltage referenced IO standards, particularly DDR-RAM interfaces. Review the respective chapter about IO.
Occasional ContributorHi, How does the intended use of VREF differ from that of VCCIO voltage?
Super ContributorInstead of repeating unelaborated questions you should review device manual about intended usage of VREFB pins for voltage refernced IO standards. Usually they are biased at VCCIO/2, defining the input threshold.
Regular ContributorHi,
As mentioned by @FvM, Vref pin is different from VCCIO pin where VCCIO pin is applicable for all I/O banks because it is for the bank power supply. However, for Vref pin, it is a reference voltage for certain I/O standards which include SSTL, HSUL and HSTL I/O standards in Intel Max 10.
Voltage referenced I/O standards: https://www.intel.com/content/www/us/en/docs/programmable/683794/current/single-ended-sstl-hstl-and-hsul-i-o-24395.html
Occasional ContributorHi,
Do we need to set VREF for TTL level?
If yes, what is the approximate voltage value?
I am planning to use the MAX10 as a FIFO, with the MAX10 input connected to the output of MT9P001, and the MAX10 output connected to the input of CYUSB3014.
Thanks,
Regular ContributorThere is no TTL in the listed I/O standard of the Max 10.
For the reference of FIFO IP core in Intel Max 10, you can refer below link:
Occasional ContributorHi, Thank you for this link.
My problem is that Should I connect VREF PIN to voltage , If I use TTL logic?
Occasional ContributorHi, I would like to ask if this means NC. Besides enabling VREF NC, do I need to make any additional settings, such as FPGE firmware?
Regular ContributorHI,

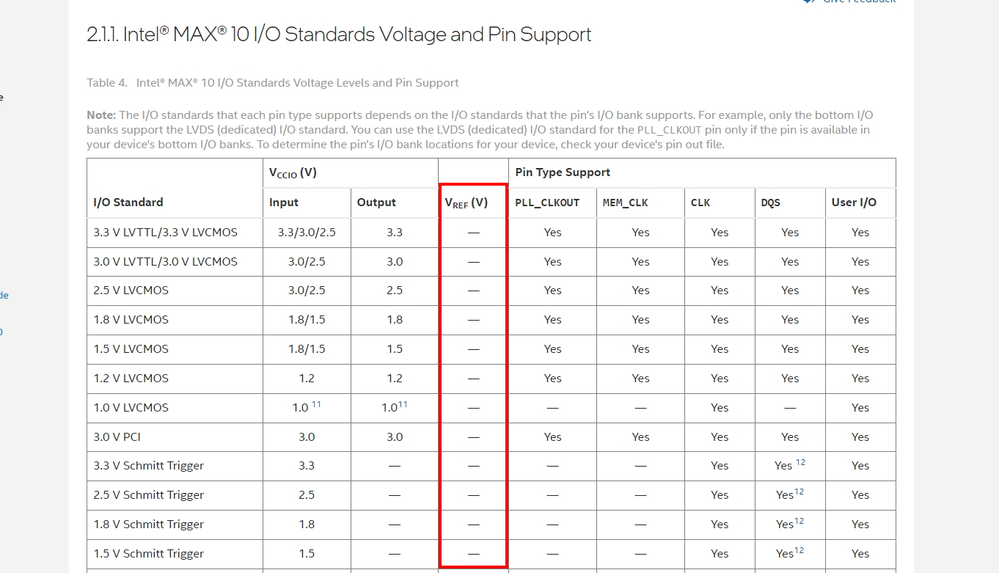

You can refer to the link below on the list of I/O standards supported in Intel Max 10. You can refer either it is voltage referenced I/O standard or not under "Type" column. If it shown as "voltage-referenced", means you need to connect Vref pin to voltage.
https://www.intel.com/content/www/us/en/docs/programmable/683751/22-1/i-o-standards-support.html
For the single-ended I/O standard, you no need to connect the Vref pin to voltage. Based on the Pin Connection Guidelines, which you can refer to below link, if you are not using the VREF pins, you can connect unused pins as defined in the Intel® Quartus® Prime software.
https://www.intel.com/content/www/us/en/docs/programmable/683232/current/differential-i-o-pins.html
For the unused pin settings in Intel Quartus software, you can refer below link:
