Occasional ContributorIssues when testing DMA feature provided by Avalon MM+ IP with S10 GX dev kit card on Ubuntu 18.04
I have installed s10 GX dev kit fpga card on Ubuntu 18.04 and program the Avalon MM+ Hard IP to the card.
While I meet some issues when testing the DMA feature.
For the test application which locates at ~/avmm_bridge_512_0_example_design/software/user/example/intel_fpga_pcie_link_test, all the test mode cannot run successfully.
For example, the first test, Doing 100 writes and 100 reads, failed. I put the results of first 10 tries below.
At dword 0x0 Wrote 0x120aed54 Read 0xffffffff At dword 0x1 Wrote 0x4db4d210 Read 0xffffffff At dword 0x2 Wrote 0x616cd2bb Read 0xffffffff At dword 0x3 Wrote 0x29ad0aff Read 0xffffffff At dword 0x4 Wrote 0x31f54bf7 Read 0xffffffff At dword 0x5 Wrote 0x7f08785d Read 0xffffffff At dword 0x6 Wrote 0x4fde1236 Read 0xffffffff At dword 0x7 Wrote 0x401d6525 Read 0xffffffff At dword 0x8 Wrote 0x44a0f03b Read 0xffffffff At dword 0x9 Wrote 0x49ebcbdc Read 0xffffffff
For each time testing, the result of reading from the memory is 0xffffffff. While it shows reading and writing operaions don't meet errors. Only the numbers don't match.
Number of write errors: 0 Number of read errors: 0 Number of dword mismatches: 100
While I look into the code, I do not find where the device memory address is initialized for device memory. It is just initialized to NULL.
char *addr = NULL;
I am wondering why the test application does not use memory map to get a address mapping to the FPGA card memory. I'm not sure if it is initialized in other functions and whether the address(NULL) is the reason to cause the mismatches.
However, other testing mode cannot work as well. So maybe there are caused by other reasons.
When I installed the PCIe driver for the FPGA card, as the provided driver code is for CentOS, I modified some code to make it could be successfully installed on Ubuntu. Not sure if my modifications will cause any issue.
Hope someone have ideas on the issues I've met. Thank you and look forward to reply.
The problem you seen might related to below KBD
Why does the Intel® Stratix® 10 Avalon®-MM Interface for PCIe* with DMA example design fail the link test and the DMA test when using the default selected BAR0?DescriptionWhen the internal DMA Descriptor Controller is enabled, the BAR0 Avalon®-MM master is not available for general-purpose usage. The DMA Descriptor Controller uses this BAR0 interface through which the host CPU programs in the descriptor table.
The intel_fpga_pcie_link_test user application selects BAR0 as default when it's initially executed. If the user forgets to change to BAR2, which is where the onchip memory is attached, then both the link test and the DMA test will fail.
ResolutionThe user must change to BAR2 before executing the link test and the DMA test.
See the execution transcript of the intel_fpga_pcie_link_test user application below for how to change to BAR2.
~$ sudo ./intel_fpga_pcie_link_test
*********************************************************
Intel FPGA PCIe Link Test
Version 2.0
0: Automatically select a device
1: Manually select a device
*********************************************************
> 0
Opened a handle to BAR 0 of a device with BDF 0x1300
*********************************************************
0: Link test - 100 writes and reads
1: Write memory space
2: Read memory space
3: Write configuration space
4: Read configuration space
5: Change BAR
6: Change device
7: Enable SRIOV
8: Do a link test for every enabled virtual function
belonging to the current device
9: Perform DMA
10: Quit program
*********************************************************
> 5
Changing BAR...
Enter BAR number (-1 for none):
> 2
Successfully changed BAR!
29 Replies
skbehContributor
Good to know that the USB connection issue could be potentially caused by high temperature.
Make sense that since the DMA test can perform up to 20k cycles, doesn't seems like it is design issue anymore.
He4ForumYep. And thank you very much for your support and patience.
- He4Forum
Also I have tested a simply read & write operation.
//... result = dev->write32(reinterpret_cast<void *>(addr), write_data); if (result == 1) { cout << "Wrote successfully!" << endl; } else { cout << "Write failed!" << endl; } uint32_t test_read = 0; result = dev->read32(reinterpret_cast<void *>(addr), &test_read); if (result == 1) { cout << "Read successfully!" << endl; } else { cout << "Read failed!" << endl; } cout << "Read number : " << test_read << endl; //...Get the wrong result again.
> Enter address to write, in hex: 0000f000 > Enter 32-bit data to write, in hex: 12341234 > Writing 0x12341234 at BDF 0x1a00 BAR 0 offset 0xf000.. Wrote successfully! Read successfully! Read number : 0xffffffffRead number is 0xffffffff, similar with Doing 100 writes and 100 reads test. This time the using address is manually set, not NULL.
- skbeh
As I understand it, you are testing the PCIe link-up on Stratix 10 SX SoC Development Kit (DK-SOC-1SSX-L-D) as described below on Ubuntu by modifying some driver code from provided for CentOS.
https://www.intel.com/content/www/us/en/products/details/fpga/development-kits/stratix/10-sx.html
I'm not clear if the issue was caused by the driver code modification itelf.
However in the first place, are you able to check if the PCIe is able to link-up? i.e. using lspci to check.
Do you have any PCIe endpoint card plug-in into this SOC dev kit which act as rootport? or you are using the BTS (Board Test System) to test the loopback?- He4Forum
Hi skbeh,
I am using Stratix 10 GX FPGA Development Kit (DK-DEV-1SGX-L-A). And I have checked that the FPGA card could be detected via PCIe.
$ lsmod | grep intel_fpga_pcie_drv intel_fpga_pcie_drv 32768 2 $ lspci -d 1172:000 -v 1a:00.0 Unassigned class [ff00]: Altera Corporation Device 0000 (rev ff) (prog-if ff) !!! Unknown header type 7f Kernel driver in use: intel_fpga_pcie_drv Kernel modules: altera_cvp $ lspci -d 1172:000 -v | grep intel_fpga_pcie_drv Kernel driver in use: intel_fpga_pcie_drvThe FPGA card is just plugged into a PCIe port on a host machine with Ubuntu 18.04 OS.
As the README for the driver for FPGA card says,
TESTING ------- The driver was developed and tested on CentOS 7.0, 64-bit with 3.10.514 kernel compiled for x86_64 architecture.and when I installed the card with no modifications, it would meet errors. Seems that the errors are caused by the Linux kernel version, 5.10 on my machine and 3.10 in README introduction. I fixed the bugs manually and got the driver successfully installed.
- skbeh
There are 0-9 application tests as shown below.
Can you confirm the USB blaster II disconnected issue only happened in "9: Perform DMA"?
Or it happened on both '0: Link test - 100 writes and reads" and "9: Perform DMA" ?
0: Link test - 100 writes and reads
1: Write memory space
2: Read memory space
3: Write configuration space
4: Read configuration space
5: Change BAR
6: Change device
7: Enable SRIOV
8: Do a link test for every enabled virtual function
belonging to the current device
9: Perform DMA
- He4Forum
The issue is for both '0: Link test - 100 writes and reads" and "9: Perform DMA".
When the card works well, choose '0: Link test - 100 writes and reads" and get the result like this.
Doing 100 writes and 100 reads.. Number of write errors: 0 Number of read errors: 0 Number of dword mismatches: 0Choose "9: Perform DMA" and get,
********************************************************* Current DMA configurations Run Read (card->system) ? 1 Run Write (system->card) ? 1 Run Simultaneous ? 1 Number of dwords/desc : 2048 Number of descriptors : 128 Total length of transfer : 1e+03 KiB ********************************************************* 0: Run DMA 1: Toggle read DMA 2: Toggle write DMA 3: Toggle simultaneous DMA 4: Set the number of dwords per descriptor 5: Set the number of descriptors per DMA 6: Return to main menu *********************************************************then "0 : Run DMA",
Enter the number of DMA operations to initiate; enter 0 for infinite loop:Enter "2" and then get the result.
********************************************************* Current DMA configurations Run Read (card->system) ? 1 Run Write (system->card) ? 1 Run Simultaneous ? 1 Number of dwords/desc : 2048 Number of descriptors : 128 Total length of transfer : 1e+03 KiB Current run #: 2 Current time : Wed Mar 23 13:49:54 2022 DMA throughputs, in GB/s (10^9B/s) Current Read Throughput : 0.01 Average Read Throughput : 0.01 Current Write Throughput : 0.01 Average Write Throughput : 0.01 Current Simul Throughput : 0.01 Average Simul Throughput : 0.01 *********************************************************When the USB blaster II disconnected issue happens, both could not work.
'0: Link test - 100 writes and reads" :
Number of write errors: 0 Number of read errors: 0 Number of dword mismatches: 100"9: Perform DMA" :
Current run #: 1 Current time : Wed Mar 23 13:53:10 2022 DMA throughputs, in GB/s (10^9B/s) Current Read Throughput : 0.00 Average Read Throughput : inf Current Write Throughput : 0.00 Average Write Throughput : inf Current Simul Throughput : 0.00 Average Simul Throughput : inf ********************************************************* Stopping DMA run due to error..Meanwhile I notice that when the USB blaster II works, run the command
$ lsusband we can find the FPGA card.
lsusb : Bus 001 Device 002: ID 09fb:6810 Alterawhen USB blaster II is disconnected, it disappears.
- skbeh
I see, when USB blaster II is connected, both tests passing ('0: Link test - 100 writes and reads" and "9: Perform DMA")
When USB blaster II disconnected, definitely the result will show as failed since the connection has loss.
Can you identify under what condition the USB blaster II start loss its connection? While at the middle of performing the '9: Perform DMA"? Or when both test #0 and test#9 completed and you repeat another round of test?
- skbeh

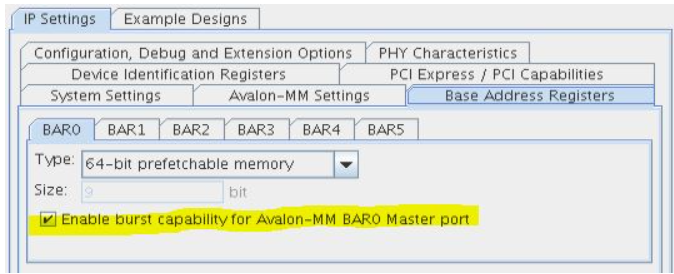

Please try de-select the "Enable burst capability for Avalon-MM BAR0 Master port" (HPRXM BAR0) option as shown below, then re-generate RTL, re-compile and configure the example design again.
Let's see if disabling burst mode for BAR0 allows the DMA test to work because it looks like the HPRXM (burst mode) module and the DMA module have conflicts on BAR0 causing problem.
Let me know your test result after this change.
- He4Forum
Could you please resend the pic? it could not be loaded on my PC. Thanks.
- skbeh
I resend the picture. Hope you get it.
- He4Forum
Unfortunately, the same error still occurs.
This time DMA test runs a bit longer than before. The usb is disconnected after 20,000 loops of testing.
At the same time, during the test, I found that the previous usb was connected to an usb3.0 interface of the motherboard, so I plugged it into an usb2.0. While no difference about the result.
- He4Forum
Atfer how much time the USB will be disconnected seems very random. Maybe I just start the test, or have runned the test for a while.
