Occasional ContributorIssues when testing DMA feature provided by Avalon MM+ IP with S10 GX dev kit card on Ubuntu 18.04
The problem you seen might related to below KBD
Why does the Intel® Stratix® 10 Avalon®-MM Interface for PCIe* with DMA example design fail the link test and the DMA test when using the default selected BAR0?DescriptionWhen the internal DMA Descriptor Controller is enabled, the BAR0 Avalon®-MM master is not available for general-purpose usage. The DMA Descriptor Controller uses this BAR0 interface through which the host CPU programs in the descriptor table.
The intel_fpga_pcie_link_test user application selects BAR0 as default when it's initially executed. If the user forgets to change to BAR2, which is where the onchip memory is attached, then both the link test and the DMA test will fail.
ResolutionThe user must change to BAR2 before executing the link test and the DMA test.
See the execution transcript of the intel_fpga_pcie_link_test user application below for how to change to BAR2.
~$ sudo ./intel_fpga_pcie_link_test
*********************************************************
Intel FPGA PCIe Link Test
Version 2.0
0: Automatically select a device
1: Manually select a device
*********************************************************
> 0
Opened a handle to BAR 0 of a device with BDF 0x1300
*********************************************************
0: Link test - 100 writes and reads
1: Write memory space
2: Read memory space
3: Write configuration space
4: Read configuration space
5: Change BAR
6: Change device
7: Enable SRIOV
8: Do a link test for every enabled virtual function
belonging to the current device
9: Perform DMA
10: Quit program
*********************************************************
> 5
Changing BAR...
Enter BAR number (-1 for none):
> 2
Successfully changed BAR!
Occasional ContributorCould you please resend the pic? it could not be loaded on my PC. Thanks.
ContributorI resend the picture. Hope you get it.
- He4Forum
Thank you. It can bo loaded now. While my Quartus window looks different form yours. Can I just disable BAR0?
- He4Forum
If just disable BAR0, "0: Link test - 100 writes and reads" test can pass while "9: Perform DMA" cannot.
Are you using Avalon MM IP instead of MM+? I can test the design for Avalon MM IP to see whether it could work.
- skbeh
Please disable this Bursting option under 'Avalon-MM Setting' tab and try again "9: Perform DMA"
BAR0 is required for DMA test, cannot be disabled BAR0.
(Re
- He4Forum

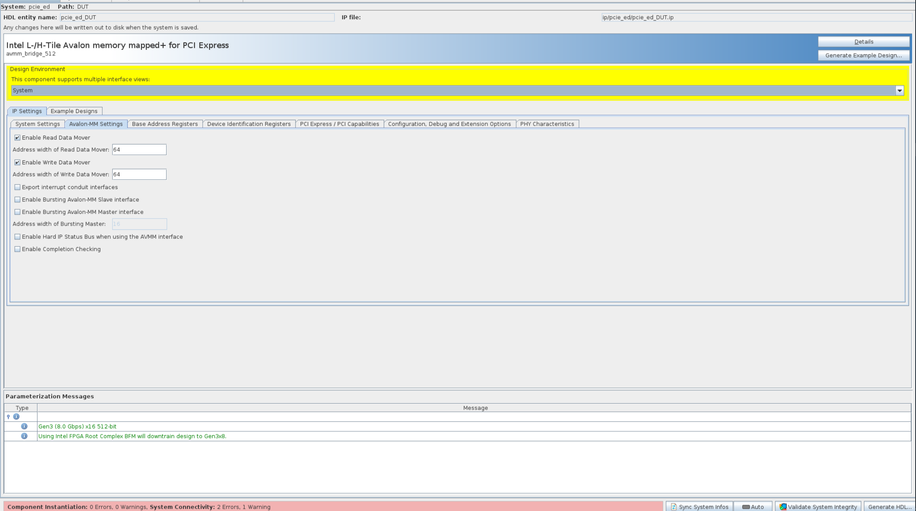

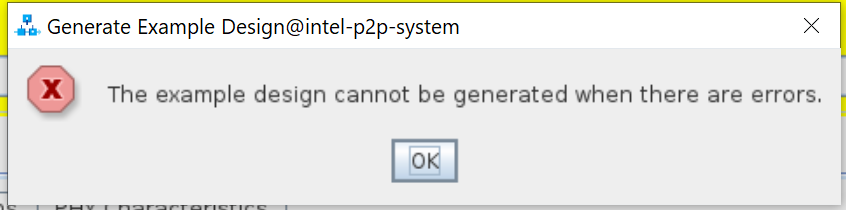

When I de-select the "Enable Bursting Avalon-MM Master interface", it shows there are 2 errors of system connectivity(at the bottom of the 2nd pic), and I cannot generate the design.
