Is there a known good project i can use as a baseline for a PCIe project on a Cyclone 10GX development board?

Issue with long folder/file path. Reduced the number of folders and compilation proceeded partially but still with errors.

Hi,

Please user reference design from below link

https://forums.intel.com/s/createarticlepage?articleid=a3g0P0000005QyOQAU&action=view

https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/ug/ug_c5_pcie.pdf

https://forums.intel.com/s/createarticlepage?articleid=a3g0P0000005RSyQAM&action=view

Regards

Anand

Hi Anand,

We will be using Cyclone 10 to replace our existing Cyclone V based product. I was hoping for a starting project for a Cyclone 10GX development board.

Update:

• on 17.1, regenerating all the QSYS files helped a bit, compilation reached 35% before Quartus hangs.

Thanks!

Hi Anand,

This might be the same issue. See link

https://forums.intel.com/s/question/0D50P0000465GBCSA2/file-missing-compile-error-cyclone-x-gx-fpga-development-kit-example-qtspciesfp?language=en_US

I curently have it @ f:/sandbox/qts_pcie_sft/qts_pcie_sfp. I'll reduce it to just 1 directory tomorrow and see if it compiles.

Reducing project directory tree to f:/qts_pcie... didn't help. 17.1 compilation still hangs while 19.2 compilation still results with these errors:

Error(329006): Some pins have illegal board trace models.

Error(20403): Global setting for OUTPUT_IO_TIMING_NEAR_END_VMEAS is not supported. Please use this setting with pin assignments.

Error(20403): Global setting for OUTPUT_IO_TIMING_FAR_END_VMEAS is not supported. Please use this setting with pin assignments.

...

How can i fix these fitting errors?

A fresh download of the Cyclone 10 GX development board collateral which contains the qts_pcie example project resulted in the same compilation issues. Is there an upgraded/fixed project?

In case it matters, i'm using a Windows 10 Pro 64 bit.

Hi Joel,

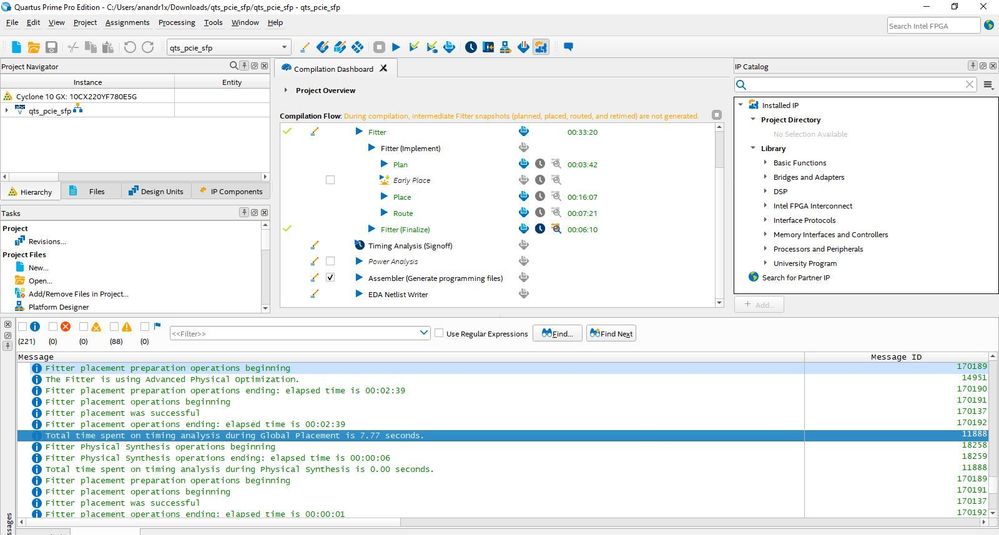

Yes, i have faced same issue in compiling using Quartus pro 19.1. let me check and come back.

Please try design from design store.

https://fpgacloud.intel.com/devstore/platform/?acds_version=any&ip_core=PCIExpress&board=102

Regards

Anand

That worked! Thanks Anand!
