Which part of design example eth_e2e_e10 based on platform designer

Some update , when I click the button Auto upgrade,Quartus printed below error information,any other way I can use to upgrade these IP if I can not open the qsys platform designer? thanks

Error: 2020.03.16.11:11:48 Error: Generation for Standard System (.qsys) files is not available in Pro, you can upgrade these files to Pro by opening them in Platform Designer for Quartus Pro.

Error: Quartus Prime Shell was unsuccessful. 15 errors, 0 warnings

Error: Peak virtual memory: 822 megabytes

Error: Processing ended: Mon Mar 16 11:12:26 2020

Error: Elapsed time: 00:00:50

Error: Total CPU time (on all processors): 00:02:00

Error(14923): Error upgrading Platform Designer file "../../hw/rtl/e10/fifo_scfifo/sc_fifo.qsys"

Error: 2020.03.16.11:12:14 Error: address_decode.rx_xcvr_half_clk.clk_in: rx_xcvr_half_clk.clk_in must be connected to a clock output

Error: 2020.03.16.11:12:14 Error: address_decode.rx_xcvr_half_clk.clk_in_reset: rx_xcvr_half_clk.clk_in_reset must be connected to a reset source

Error: 2020.03.16.11:12:14 Error: qsys-generate failed with exit code 3: 2 Errors, 0 Warnings

Error: 2020.03.16.11:12:16 Error: address_decode.rx_xcvr_half_clk.clk_in: rx_xcvr_half_clk.clk_in must be connected to a clock output

Error: 2020.03.16.11:12:16 Error: address_decode.rx_xcvr_half_clk.clk_in_reset: rx_xcvr_half_clk.clk_in_reset must be connected to a reset source

Error: 2020.03.16.11:12:16 Error: qsys-generate failed with exit code 3: 2 Errors, 0 Warnings

Error: 2020.03.16.11:12:17 Error: address_decode.rx_xcvr_half_clk.clk_in: rx_xcvr_half_clk.clk_in must be connected to a clock output

Error: 2020.03.16.11:12:17 Error: address_decode.rx_xcvr_half_clk.clk_in_reset: rx_xcvr_half_clk.clk_in_reset must be connected to a reset source

Error: 2020.03.16.11:12:17 Error: qsys-generate failed with exit code 3: 2 Errors, 0 Warnings

Error(14923): Error upgrading Platform Designer file "../../hw/rtl/e10/address_decoder/address_decode.qsys"

Error(11133): IP component QsysPrimePro with file "../../hw/rtl/e10/fifo_scfifo/sc_fifo.qsys" upgrade failed

Error(11133): IP component QsysPrimePro with file "../../hw/rtl/e10/address_decoder/address_decode.qsys" upgrade failed

Error(23031): Evaluation of Tcl script /root/inteldevstack/intelFPGA_pro/quartus/common/tcl/internal/ip_regen/ip_regen.tcl unsuccessful

Hi,

You may use the command line method to upgrade the qsys system without using the GUI

qsys-generate <IP variation file>.qsys

The IP upgrade option is available in Table 172. Command-Line Options for qsys-generate https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/ug/ug-qpp-platform-designer.pdf

Do you see any error messages when you launch the GUI?

Thanks.

Best regards,

KhaiY

Hi KhaiY

thanks for your suggestion.

based on the error information from GUI when I was upgrading IP before , I knew 2 ip need to be upgrade manually.

Error: 2020.03.16.11:11:48 Error: Generation for Standard System (.qsys) files is not available in Pro, you can upgrade these files to Pro by opening them in Platform Designer for Quartus Pro.

Error: Quartus Prime Shell was unsuccessful. 15 errors, 0 warnings

Error: Peak virtual memory: 822 megabytes

Error: Processing ended: Mon Mar 16 11:12:26 2020

Error: Elapsed time: 00:00:50

Error: Total CPU time (on all processors): 00:02:00

Error(14923): Error upgrading Platform Designer file "../../hw/rtl/e10/fifo_scfifo/sc_fifo.qsys"

Error: 2020.03.16.11:12:14 Error: address_decode.rx_xcvr_half_clk.clk_in: rx_xcvr_half_clk.clk_in must be connected to a clock output

Error: 2020.03.16.11:12:14 Error: address_decode.rx_xcvr_half_clk.clk_in_reset: rx_xcvr_half_clk.clk_in_reset must be connected to a reset source

Error: 2020.03.16.11:12:14 Error: qsys-generate failed with exit code 3: 2 Errors, 0 Warnings

Error: 2020.03.16.11:12:16 Error: address_decode.rx_xcvr_half_clk.clk_in: rx_xcvr_half_clk.clk_in must be connected to a clock output

Error: 2020.03.16.11:12:16 Error: address_decode.rx_xcvr_half_clk.clk_in_reset: rx_xcvr_half_clk.clk_in_reset must be connected to a reset source

Error: 2020.03.16.11:12:16 Error: qsys-generate failed with exit code 3: 2 Errors, 0 Warnings

Error: 2020.03.16.11:12:17 Error: address_decode.rx_xcvr_half_clk.clk_in: rx_xcvr_half_clk.clk_in must be connected to a clock output

Error: 2020.03.16.11:12:17 Error: address_decode.rx_xcvr_half_clk.clk_in_reset: rx_xcvr_half_clk.clk_in_reset must be connected to a reset source

Error: 2020.03.16.11:12:17 Error: qsys-generate failed with exit code 3: 2 Errors, 0 Warnings

Error(14923): Error upgrading Platform Designer file "../../hw/rtl/e10/address_decoder/address_decode.qsys"

Error(11133): IP component QsysPrimePro with file "../../hw/rtl/e10/fifo_scfifo/sc_fifo.qsys" upgrade failed

Error(11133): IP component QsysPrimePro with file "../../hw/rtl/e10/address_decoder/address_decode.qsys" upgrade failed

Error(23031): Evaluation of Tcl script /root/inteldevstack/intelFPGA_pro/quartus/common/tcl/internal/ip_regen/ip_regen.tcl unsuccessful

So I close quartus GUI and did below

[root@fig01 e10]# pwd

/root/inteldevstack/a10_gx_pac_ias_1_2_pv/hw/samples/eth_e2e_e10/hw/rtl/e10

[root@fig01 e10]# cd address_decoder/

[root@fig01 address_decoder]# qsys-generate address_decode.qsys

bash: qsys-generate: command not found...

[root@fig01 address_decoder]#

seems command is not found for Intel PAC card OPAE design environment.

any other steps I can try for the platform designer GUI not showing correctly?that is part of design tolls ,which might be used in further development.

thanks

Jim

also I think the upgrading failed issue might be caused by the connections related to module rx_xcvr_half_clk from the printed error information.

it was not only about upgrade flow, but also design itself. this is the vendor provided design example ,I did not modify anything.

thanks

Hi,

May I know which Quartus prime software edition and version is using?

Thanks

Hi MeiYanL

thanks for your feedback.

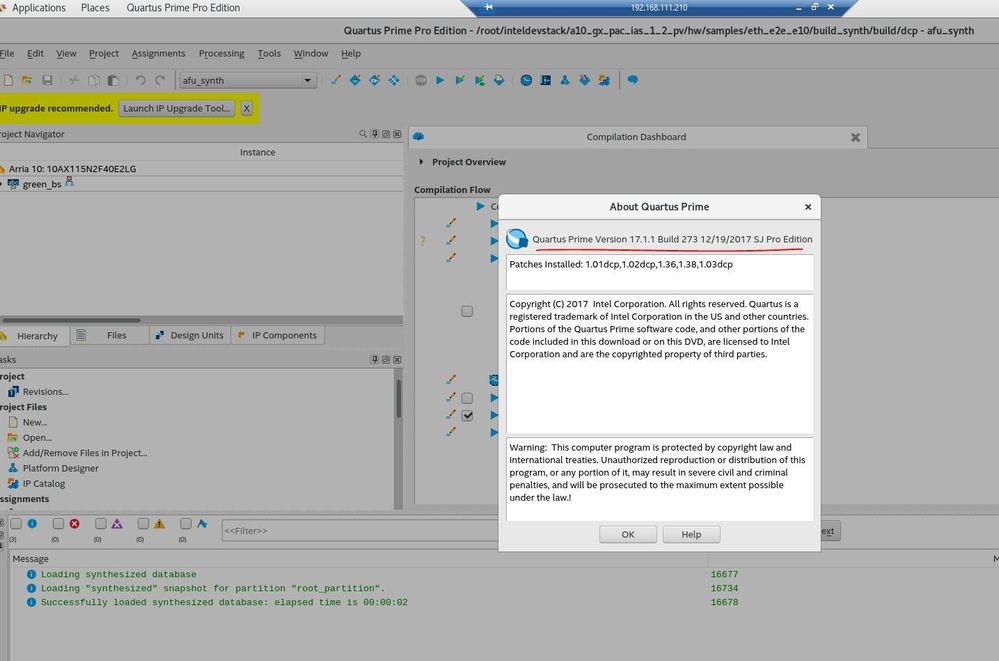

I am using Quartus Prime Pro 17.1.1 build 273,which is recommended version by the Intel PAC user manual.

Best regard

Jim

Hello Sir/madam,

Based on my recent feedback, can I have some suggestion to solve this platform designer GUI issue and IP upgrading issue?

thanks

Jim

Hi,

I had build the design example and I am able to open the platform designer to upgrade the IP component.

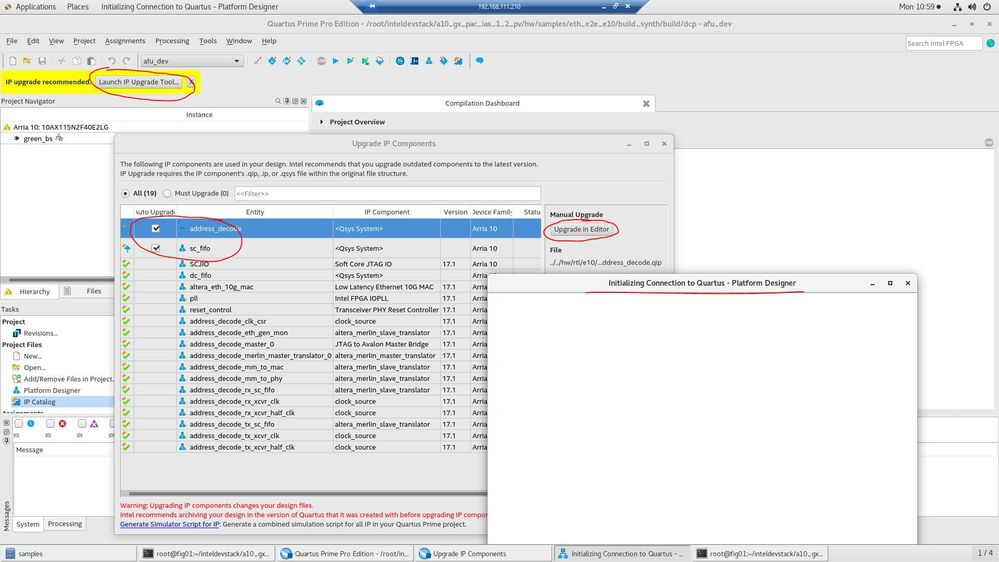

As mentioned earlier, the platform designer is hang on initializing page, you may need to follow the instruction as below:

https://www.intel.com/content/www/us/en/programmable/support/support-resources/knowledge-base/tools/2017/why-does-qsys-pro-hang-at-initializing-qsysipc-bridge.html

Thanks

Hi MeiYanL,

Thanks for your effort.

I have tried that solution, platform designer was hanging and had no response to clicking of close windows button. Even I quite the Quartus ,platform designer was still there. I had to restart server to kill it.

May I know your Quartus version?

Have a good weekend

Jim

Hi,

I tested on the Quartus Prime Pro v17.1.1 software as recommended in the document.

According to https://www.intel.com/content/altera-www/global/en_us/index/support/support-resources/knowledge-base/tools/2017/why-does-qsys-pro-hang-at-initializing-qsysipc-bridge.html, it might be cause by machine load.

You may need to try go to the Quartus menu: Assignments > Settings, then on the left panel select the IP Settings and on the right panel set the "Maximum Platform Designer memory usage" to the max value.

For you information, you could use the task manager to close the Platform Designer UI.

Thanks
