New ContributorOneapi fpga board error
I had previously installed oneapi version 2023.2.0, however due to compatibility issues with my ubuntu version, I downgraded to oneapi version 2021.4.0. I successfully initialized my fpga board but i'm unable to compile or run programs on the fpga.
(I have already tried updating the env variables)
7 Replies
BoonBengT_AlteraModerator
Hi @Chithambarash,
Thank you for posting in Intel community forum and hope all is well.

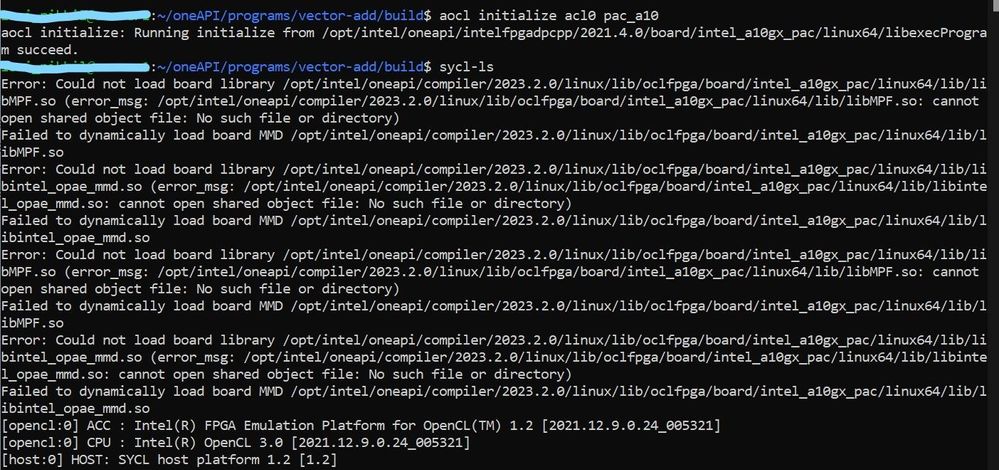

Based on the screenshot, there seems to be an output from the command sycl-ls.
Perhaps you can also check run the aocl diagnose command to check on the initialization.
As for the error mention it seems to be related to version 2023.2.0.
Hence would suggest to check if the version 2023.2.0 are completely uninstall
Hope that clarify
Best
Regards
ChithambarashThis is the aocl diagnose output:
-------------------------------------------------------------------- ICD System Diagnostics -------------------------------------------------------------------- Using the following location for ICD installation: /etc/OpenCL/vendors Found 3 icd entry at that location: /etc/OpenCL/vendors/Altera.icd /etc/OpenCL/vendors/intel-cpu.icd /etc/OpenCL/vendors/Intel_FPGA_SSG_Emulator.icd The following OpenCL libraries are referenced in the icd files: libalteracl.so libintelocl.so libintelocl_emu.so Checking LD_LIBRARY_PATH for registered libraries: WARNING: libintelocl_emu.so NOT FOUND Using OCL_ICD_FILENAMES to search for ICD clients, it is set to libintelocl_emu.so:libalteracl.so:/opt/intel/oneapi/compiler/2021.4.0/linux/lib/x64/libintelocl.so Checking LD_LIBRARY_PATH for registered libraries specified by OCL_ICD_FILENAMES WARNING: libintelocl_emu.so NOT FOUND libalteracl.so was registered on the system at /opt/intel/oneapi/compiler/2021.4.0/linux/lib/oclfpga/host/linux64/lib /opt/intel/oneapi/compiler/2021.4.0/linux/lib/x64/libintelocl.so was registered on the system. Using the following location for fcd installations: /opt/Intel/OpenCLFPGA/oneAPI/Boards Found 1 fcd entry at that location: /opt/Intel/OpenCLFPGA/oneAPI/Boards/intel_a10gx_pac.fcd The following OpenCL libraries are referenced in the fcd files: libopae-c.so /opt/intel/oneapi/compiler/2023.2.0/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/lib/libMPF.so /opt/intel/oneapi/compiler/2023.2.0/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/lib/libintel_opae_mmd.so Checking LD_LIBRARY_PATH for registered libraries: WARNING: libopae-c.so NOT FOUND WARNING: /opt/intel/oneapi/compiler/2023.2.0/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/lib/libMPF.so NOT FOUND WARNING: /opt/intel/oneapi/compiler/2023.2.0/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/lib/libintel_opae_mmd.so NOT FOUND Error: Could not load board library /opt/intel/oneapi/compiler/2023.2.0/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/lib/libMPF.so (error_msg: /opt/intel/oneapi/compiler/2023.2.0/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/lib/libMPF.so: cannot open shared object file: No such file or directory) Failed to dynamically load board MMD /opt/intel/oneapi/compiler/2023.2.0/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/lib/libMPF.so Error: Could not load board library /opt/intel/oneapi/compiler/2023.2.0/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/lib/libintel_opae_mmd.so (error_msg: /opt/intel/oneapi/compiler/2023.2.0/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/lib/libintel_opae_mmd.so: cannot open shared object file: No such file or directory) Failed to dynamically load board MMD /opt/intel/oneapi/compiler/2023.2.0/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/lib/libintel_opae_mmd.so Error: Could not load board library /opt/intel/oneapi/compiler/2023.2.0/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/lib/libMPF.so (error_msg: /opt/intel/oneapi/compiler/2023.2.0/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/lib/libMPF.so: cannot open shared object file: No such file or directory) Failed to dynamically load board MMD /opt/intel/oneapi/compiler/2023.2.0/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/lib/libMPF.so Error: Could not load board library /opt/intel/oneapi/compiler/2023.2.0/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/lib/libintel_opae_mmd.so (error_msg: /opt/intel/oneapi/compiler/2023.2.0/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/lib/libintel_opae_mmd.so: cannot open shared object file: No such file or directory) Failed to dynamically load board MMD /opt/intel/oneapi/compiler/2023.2.0/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/lib/libintel_opae_mmd.so Number of Platforms = 2 1. Intel(R) FPGA Emulation Platform for OpenCL(TM) | Intel(R) Corporation | OpenCL 1.2 Intel(R) FPGA SDK for OpenCL(TM), Version 20.3 2. Intel(R) OpenCL | Intel(R) Corporation | OpenCL 3.0 LINUX ERROR: Failed to find Intel(R) FPGA SDK for OpenCL(TM) ERROR: OpenCL host failed -------------------------------------------------------------------- ICD diagnostics FAILED -------------------------------------------------------------------- -------------------------------------------------------------------- BSP Diagnostics -------------------------------------------------------------------- -------------------------------------------------------------------- Device Name: acl0 BSP Install Location: /opt/intel/oneapi/intelfpgadpcpp/2021.4.0/board/intel_a10gx_pac Vendor: Intel Corp Physical Dev Name Status Information pac_ec00000 Passed Intel PAC Platform (pac_ec00000) PCIe 134:00.0 USM not supported FPGA temperature = 58 degrees C. DIAGNOSTIC_PASSED -------------------------------------------------------------------- Call "aocl diagnose <device-names>" to run diagnose for specified devices Call "aocl diagnose all" to run diagnose for all devices
- BoonBengT_Altera
Hi @Chithambarash,
Apologies for the delayed, based on the diagnosed it did show the similar error where compiler are getting some library missing for version 2023.2.0
Hence would recommend to check on the environment variable on the windows machine.
Hope that clarifies.
Best Wishes
BB
- Chithambarash
We are using Ubuntu 18.04, we do not want to use version 2023. We want to use 2021.4.0 version.
I had previously installed oneapi version 2023.2.0, however due to compatibility issues with my ubuntu version, I downgraded to oneapi version 2021.4.0.
We are not sure how to remove the environment variables for 2023.2.0.Environment variables for our system:
lsai_nikhil@server1:~$ env LD_LIBRARY_PATH=:/usr/lib/x86_64-linux-gnu:/opt/intel/oneapi/compiler/2021.4.0/linux/lib:/opt/intel/oneapi/compiler/2021.4.0/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/lib LS_COLORS=rs=0:di=01;34:ln=01;36:mh=00:pi=40;33:so=01;35:do=01;35:bd=40;33;01:cd=40;33;01:or=40;31;01:mi=00:su=37;41:sg=30;43:ca=30;41:tw=30;42:ow=34;42:st=37;44:ex=01;32:*.tar=01;31:*.tgz=01;31:*.arc=01;31:*.arj=01;31:*.taz=01;31:*.lha=01;31:*.lz4=01;31:*.lzh=01;31:*.lzma=01;31:*.tlz=01;31:*.txz=01;31:*.tzo=01;31:*.t7z=01;31:*.zip=01;31:*.z=01;31:*.Z=01;31:*.dz=01;31:*.gz=01;31:*.lrz=01;31:*.lz=01;31:*.lzo=01;31:*.xz=01;31:*.zst=01;31:*.tzst=01;31:*.bz2=01;31:*.bz=01;31:*.tbz=01;31:*.tbz2=01;31:*.tz=01;31:*.deb=01;31:*.rpm=01;31:*.jar=01;31:*.war=01;31:*.ear=01;31:*.sar=01;31:*.rar=01;31:*.alz=01;31:*.ace=01;31:*.zoo=01;31:*.cpio=01;31:*.7z=01;31:*.rz=01;31:*.cab=01;31:*.wim=01;31:*.swm=01;31:*.dwm=01;31:*.esd=01;31:*.jpg=01;35:*.jpeg=01;35:*.mjpg=01;35:*.mjpeg=01;35:*.gif=01;35:*.bmp=01;35:*.pbm=01;35:*.pgm=01;35:*.ppm=01;35:*.tga=01;35:*.xbm=01;35:*.xpm=01;35:*.tif=01;35:*.tiff=01;35:*.png=01;35:*.svg=01;35:*.svgz=01;35:*.mng=01;35:*.pcx=01;35:*.mov=01;35:*.mpg=01;35:*.mpeg=01;35:*.m2v=01;35:*.mkv=01;35:*.webm=01;35:*.ogm=01;35:*.mp4=01;35:*.m4v=01;35:*.mp4v=01;35:*.vob=01;35:*.qt=01;35:*.nuv=01;35:*.wmv=01;35:*.asf=01;35:*.rm=01;35:*.rmvb=01;35:*.flc=01;35:*.avi=01;35:*.fli=01;35:*.flv=01;35:*.gl=01;35:*.dl=01;35:*.xcf=01;35:*.xwd=01;35:*.yuv=01;35:*.cgm=01;35:*.emf=01;35:*.ogv=01;35:*.ogx=01;35:*.aac=00;36:*.au=00;36:*.flac=00;36:*.m4a=00;36:*.mid=00;36:*.midi=00;36:*.mka=00;36:*.mp3=00;36:*.mpc=00;36:*.ogg=00;36:*.ra=00;36:*.wav=00;36:*.oga=00;36:*.opus=00;36:*.spx=00;36:*.xspf=00;36: quartus_dir=/home/lsai_nikhil/intelFPGA_pro SSH_CONNECTION=192.168.0.163 52497 192.168.0.125 22 LESSCLOSE=/usr/bin/lesspipe %s %s QUARTUS_ROOTDIR=/home/lsai_nikhil/intelFPGA_pro/19.3/quartus WORKON_HOME=/home/lsai_nikhil/.virtualenvs S_COLORS=auto USER=lsai_nikhil PWD=/home/lsai_nikhil HOME=/home/lsai_nikhil SSH_CLIENT=192.168.0.163 52497 22 INTELFPGAOCLSDKROOT=/opt/intelFPGA_pro/quartus_19.2.0b57/hld LIBVIRT_DEFAULT_URI=qemu:///system IP_ROOTDIR=/home/lsai_nikhil/intelFPGA_pro/19.3/ip/ XDG_DATA_DIRS=/usr/local/share:/usr/share:/var/lib/snapd/desktop QSYS_ROOTDIR=/opt/intel/oneapi/intelfpgadpcpp/2021.4.0/QuartusPrimePro/19.2/qsys/bin GTK_MODULES=appmenu-gtk-module SSH_TTY=/dev/pts/1 VIRTUALENVWRAPPER_PYTHON=/usr/bin/python3 MAIL=/var/mail/lsai_nikhil UBUNTU_MENUPROXY=1 TERM=xterm-256color SHELL=/bin/bash RUNLEVEL=3 SHLVL=1 LOGNAME=lsai_nikhil XDG_RUNTIME_DIR=/tmp/runtime-lsai_nikhil PATH=/home/lsai_nikhil/.local/bin:/home/lsai_nikhil/intelFPGA_pro/19.3/quartus/sopc_builder/bin:/home/lsai_nikhil/intelFPGA_pro/19.3/modelsim_ase/linuxaloem:/home/lsai_nikhil/intelFPGA_pro/19.3/quartus/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/games:/snap/bin:/home/lsai_nikhil/test/bin LESSOPEN=| /usr/bin/lesspipe %s pigasus_rep_dir=/home/lsai_nikhil/pigasus _=/usr/bin/env
Could you please assist us in resolving this issue?
- BoonBengT_Altera
Hi @Chithambarash,
Noted on the OS version as well as the environment key.
It looks good to me too, hence suspecting the FPGA client driver are still referring to the wrong version.
For that perhaps you recommended to re-install the FPGA board, for more details perhaps can refer to the section 4 in the link below:
- https://www.intel.com/content/www/us/en/docs/programmable/683846/22-4/managing-an-fpga-board.html
Hope that clarify.
Regards
BB
- BoonBengT_Altera
Hi @Chithambarash,
Greetings, just checking in to see if there is any further doubts in regards to this matter.
Hope your doubts have been clarified.
Best Wishes
BB
- BoonBengT_Altera
Hi @Chithambarash,
Greetings, as we do not receive any further clarification/updates on the matter, hence would assume challenge are overcome. Please login to ‘https://supporttickets.intel.com’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. For new queries, please feel free to open a new thread and we will be right with you. Pleasure having you here.
Best Wishes
