HLS Compiler 24.1 error - aocl-clang.exe - dll entry point not found
Good day, I recently installed HLS Compiler 24.1 together with Quartus Prime Lite 23.1std in order to do the first HLS tests. I installed Visual Studio 2017 Community and the latest version of Microsoft Visual C++ Redistributables (2015-2022). My OS is Windows 10 Home 10.0.19045 Trying to test an HLS example, I enter the Visual Studio console by launching the init_hls.bat file in C:\intelFPGA_lite\23.1std\hls. It seems to detect every dependency. Launching the build.bat of an example in test-x86-64 mode returns the following error, translated below the image: "The procedure entry point [...] could not be located in the dynamic link library [...]." This also happens for mathlib.dll, generationlib.dll and mip_common.dll. I tried deleting and reinstalling HLS Compiler and deleting and reinstalling MVC++ Redistributables. I also tried launchig build.bat in test-FPGA mode, changing the board from Arria10 to CycloneV, which returns the same error. Below are linked two threads that inquire about similar errors, but the original poster did not share if and how it was finally resolved. aocl-clang.exe - Entry Point Not Found - Intel Community HLS i++ compile failure for Quartus Prime 21.1.1 Lite - Intel Community Any suggestions on how to proceed? Thank you in advance, Noah
Does the FPGA N3000 support OpenCL and OneApi?
I received an INTEL FPGA PAC N3000 card, and taking the opportunity, I decided to learn how to develop with SYCL and oneAPI. However, I ran into problems. I fully installed the FPGA PAC N3000 Acceleration Stacks v1.3.1 and also updated the board's BMC from D.1.0.12 to D.2.0.19. Then I started configuring oneAPI 2022 using intel-basekit and fpga-addon, but proper configuration requires bsp, and I couldn't find it anywhere. I also saw that on the website page for Quartus Prime Pro 19.2, which is installed with IAS 1.3.1, there's a tab with oneAPI and BSPs for boards. I looked at other versions, but I only found mentions of Arria 10-GX and Arria 10-SX. I'm not sure if this will help, but the log is from CentOS 7.6.1810. [root@node-fpga ~]# fpgainfo fme Board Management Controller, MAX10 NIOS FW version D.2.0.19 Board Management Controller, MAX10 Build version D.2.0.6 //****** FME ******// Object Id : 0xF300000 PCIe s:b:d.f : 0000:84:00.0 Device Id : 0x0b30 Numa Node : 1 Ports Num : 01 Bitstream Id : 0x23000110010309 Bitstream Version : 0.2.3 Pr Interface Id : f3c99413-5081-4aad-bced-07eb84a6d0bb Boot Page : user [root@node-fpga ~]# fpgainfo bmc Board Management Controller, MAX10 NIOS FW version D.2.0.19 Board Management Controller, MAX10 Build version D.2.0.6 //****** BMC SENSORS ******// Object Id : 0xF300000 PCIe s:b:d.f : 0000:84:00.0 Device Id : 0x0b30 Numa Node : 1 Ports Num : 01 Bitstream Id : 0x23000110010309 Bitstream Version : 0.2.3 Pr Interface Id : f3c99413-5081-4aad-bced-07eb84a6d0bb ( 1) Board Power : 59.65 Watts ( 2) 12V Backplane Current : 2.91 Amps ( 3) 12V Backplane Voltage : 11.92 Volts ( 4) 1.2V Voltage : 1.20 Volts ( 6) 1.8V Voltage : 1.80 Volts ( 8) 3.3V Voltage : 3.27 Volts (10) FPGA Core Voltage : 0.90 Volts (11) FPGA Core Current : 14.47 Amps (12) FPGA Core Temperature : 62.50 Celsius (13) Board Temperature : 42.00 Celsius (14) QSFP A Voltage : N/A (15) QSFP A Temperature : N/A (24) 12V AUX Current : 2.08 Amps (25) 12V AUX Voltage : 11.97 Volts (37) QSFP B Voltage : N/A (38) QSFP B Temperature : N/A (44) Retimer A Core Temperature : 63.00 Celsius (45) Retimer A Serdes Temperature : 64.00 Celsius (46) Retimer B Core Temperature : 0.00 Celsius (47) Retimer B Serdes Temperature : 0.00 Celsius [root@node-fpga ~]# aoc -list-boards Board list: pac_a10 (default) Board Package: /opt/intel/oneapi/compiler/2022.2.1/linux/lib/oclfpga/board/intel_a10gx_pac pac_s10 Board Package: /opt/intel/oneapi/compiler/2022.2.1/linux/lib/oclfpga/board/intel_s10sx_pac pac_s10_usm Board Package: /opt/intel/oneapi/compiler/2022.2.1/linux/lib/oclfpga/board/intel_s10sx_pac Memories: device, host [root@node-fpga ~]# aocl list-devices -------------------------------------------------------------------- Device Name: acl0 BSP Install Location: /opt/intel/oneapi/compiler/2022.2.1/linux/lib/oclfpga/board/intel_a10gx_pac Vendor: Intel Corp Physical Dev Name Status Information pac_f200000 Uninitialized OpenCL BSP not loaded. Must load BSP using command: 'aocl program <device_name> <aocx_file>' before running OpenCL programs using this device DIAGNOSTIC_PASSED -------------------------------------------------------------------- [root@node-fpga ~]# aocl initialize acl0 pac_a10 aocl initialize: Running initialize from /opt/intel/oneapi/compiler/2022.2.1/linux/lib/oclfpga/board/intel_a10gx_pac/linux64/libexec bitstream.c:391:validate_bitstream_metadata() **ERROR** : Interface ID check failed Error writing bitstream to FPGA: invalid parameter Error programming device aocl initialize: Program failed. [root@node-fpga ~]#
OneAPI Support for Agilex 5 and 7 Development Kits
Hello, I've recently acquired an Agilex 5 065B Modular development kit (https://www.intel.com/content/www/us/en/products/details/fpga/development-kits/agilex/a5e065b-modular.html) and an Agilex 7 I-Series development kit (https://www.intel.com/content/www/us/en/products/details/fpga/development-kits/agilex/agi027.html). I've been working through setting up the development environments for these boards, and would like to use the oneAPI HLS toolkit for them, if possible. So far, I've found a tutorial to create an accelerator support package for the Agilex 7 development kit that I have (https://ofs.github.io/ofs-2024.3-1/hw/common/user_guides/oneapi_asp/ug_oneapi_asp/). I'm planning to go through these steps shortly to setup my board for use with oneAPI, but I have yet to find any documentation for my Agilex 5 board. Is it possible to work with this Agilex 5 development kit using oneAPI, or is only the Quartus design flow supported at this time? Additionally, are there board support packages available (that I've just missed) - or soon to be available - for these cards if the HLS flow is an option? Thank you!
HAL Kernel Version Mismatch Error During FPGA Emulation with vector-add Sample
Hello Intel FPGA team, I'm currently working on the vector-add example from the official oneAPI-samples repository, specifically from: DirectProgramming/DPC++/DenseLinearAlgebra/vector-add I’m encountering the following runtime error when I attempt to run the emulation build: Error output: ./vector-add-buffers.fpga_emu HAL Kern: Version mismatch! Expected 0xa0c00001 but read 0x4130 Hardware version ID differs from version expected by software. Either: a) Ensure your compiled design was generated by the same ACL build currently in use, OR b) The host can not communicate with the compiled kernel. vector-add-buffers.fpga_emu: /nfs/sc/disks/swip_hld_1/ops/SC/hld/nightly/2022.1/96.2/l64/work/acl/acl/source/57c9d2bcb46afcf445b5da2406c0e6d85be93ef3/src/acl_kernel_if.cpp:733: int acl_kernel_if_init(acl_kernel_if*, acl_bsp_io, acl_system_def_t*): Assertion `0' failed. make: *** [Makefile.fpga:35: run_emu] Error 1 Environment details: Board: DE10-Agilex BSP Path: /opt/intel/oneapi/intelfpgadpcpp/2021.4.0/board/de10_agilex oneAPI version: Installed multiple versions. Active: 2022.0.2 dpcpp path: /opt/intel/oneapi/compiler/2022.0.2/linux/bin/dpcpp OS: Ubuntu (detected as Rocky Linux during install attempts) What I have tried: Verified the AOCL_BOARD_PACKAGE_ROOT is correctly set. Recompiled the design using make clean && make fpga_emu. Ran aoc -list-board-packages to confirm the installed board. Ensured Quartus, BSP, and compiler are aligned. Despite that, I still encounter the HAL version mismatch. Request: Could someone guide me on how to: Resolve this version mismatch issue? Confirm the correct environment and runtime versions are in sync? Completely clean older/duplicate oneAPI installations if that’s the root cause? @intel @OneAPI @fpga @agilex7 @de10 @intel6
PCIe 4.0 Example for Agilex 7 M-Series

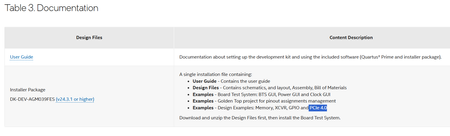

Hello, We purchased this Agilex 7 M-Series Dev Kit (https://www.intel.com/content/www/us/en/products/details/fpga/development-kits/agilex/agm039.html) for a project, and we're having trouble locating the design example for PCIe mentioned in the documentation. We could, however, identify an example in the documentation of the I-Series board, but the pin mapping is not straightforward. Could you please provide an example or documentation on configuring a basic design using the PCIe for the Agilex™ 7 FPGA M-Series Development Kit—HBM2e Edition (3x F-Tile & 1x R-Tile)? Also, is there any chance a BSP will be released for this dev kit? Thanks, Denisa
Understanding FPGA AI Suite with Quartus

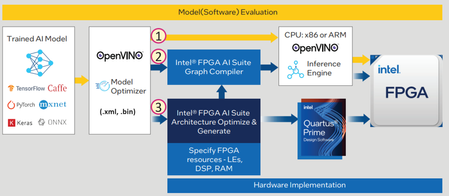

Hi, I am new to the FPGA AI Suite and would appreciate your help in better understanding it. Referring to the attached Intel pipeline, specifically the path involving Quartus: When Quartus is involved, is the OpenVINO runtime inference engine still required to run the application? I assume that IP files are imported into Quartus. Do these files contain the model topology and weights needed to run the application, or is Quartus solely used to configure the FPGA hardware, with the inference handled by the OpenVINO runtime (via FPGA AI Suite)? If I test the model using a deep learning framework and then use the FPGA AI Suite, how can I effectively collaborate with the FPGA developer? I hope my questions are clear. Best regards.
