Developing a high speed stopwatch

Synthesizes just fine.
None of that mentions how to 'apply timing constraints'.

That link is just the link of the counter sources (and simulation param sources)... but repo and branch that has the complete Quartus and Arduino IDE sources. (sort of, need to install JTAG_interface lib separately so the Arduino uses a different place than this for the FPGA_bitstream.h) but still the resulting MKRVIDOR4000.ttf gets byte reversed and copied to that other place... and it's really just the FPGA part that we're talking about here, it downloads fine... the jtag interface it uses to communicate also works fine. I've added all sorts of things like 'debug' which is commented out now, but exposed various internal flags that could be seen by the main chip on the arduino.

https://github.com/d3x0r/JTAG_Interface/tree/d3x0r-hispeed-counter

clock-module.v lives here also...

https://github.com/d3x0r/JTAG_Interface/tree/d3x0r-hispeed-counter/FPGA/projects/example_simple

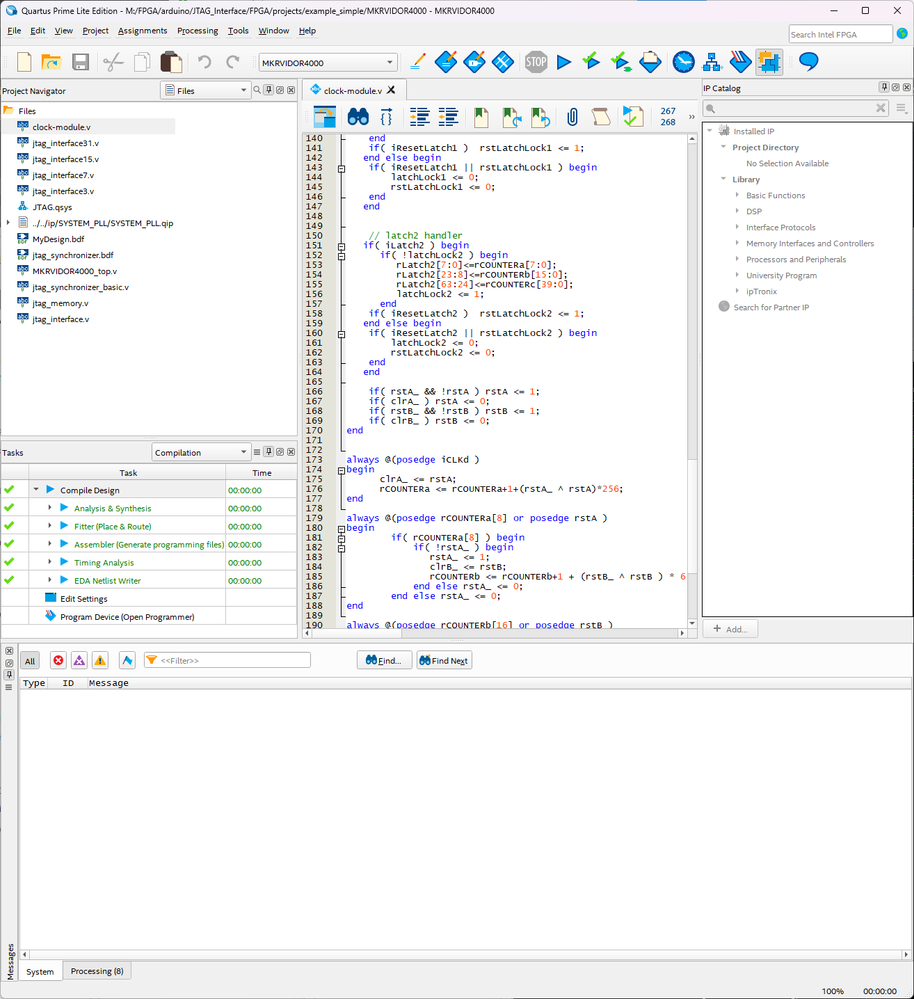

Looks like synthesis works to me...

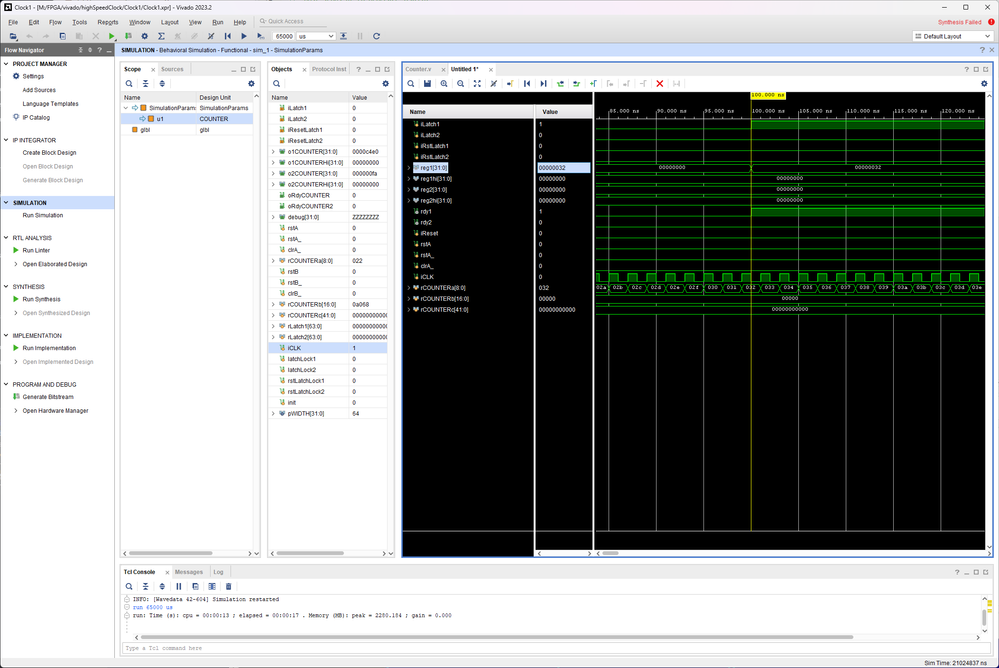

I've tried to get simulation in Quartus to work - but examples use simulators that aren't an option anymore... and there's a lot of options I could pick that I don't know if they are all compatible, or what differences between the options are. So I've been using the simulator in Vivado....

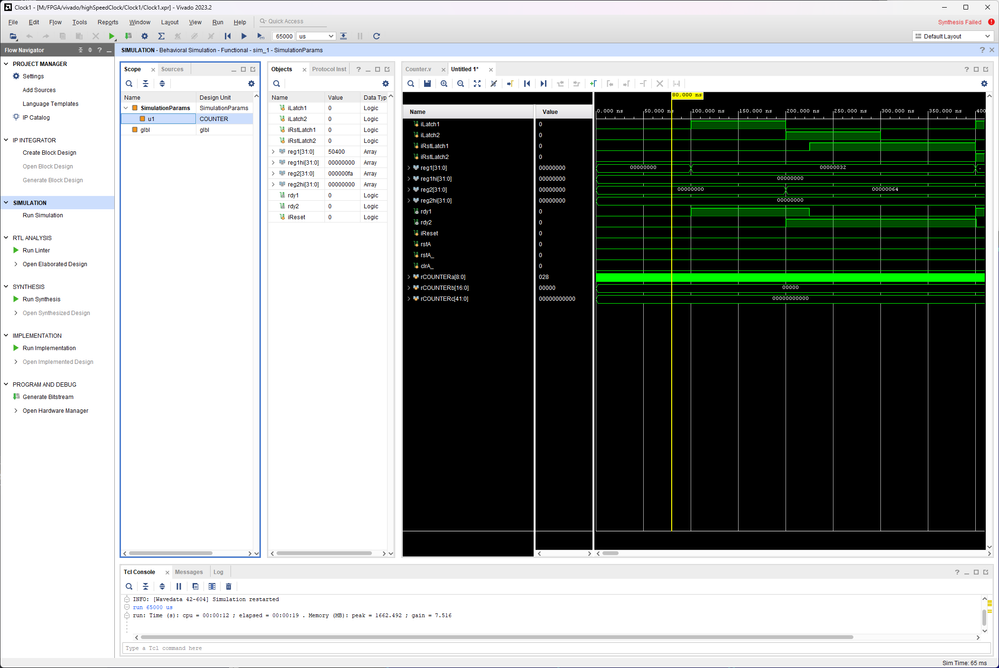

This is first few latching level changes... this only uses the SimulationParams.v and clock.v (filled with various versions - this is actually the clock-module.v source) from the other repo's directory...

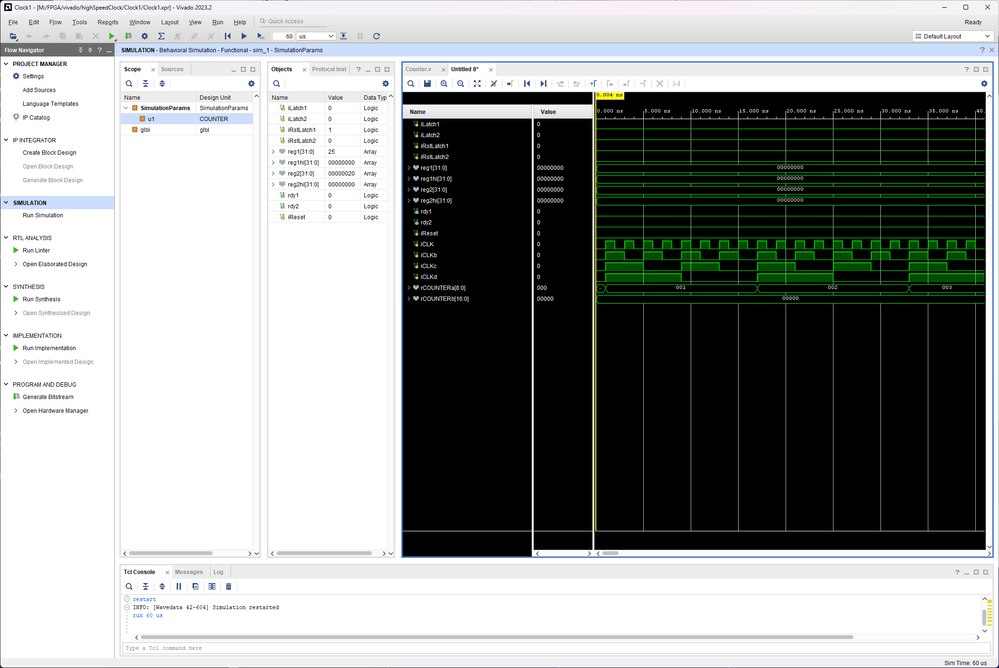

Single tick zoom level at first latch

I did stack a few nots together ...
always // Start at time 0 and repeat the begin/end forever
begin
//#1
iCLK <= !iCLK;
if( !iCLK ) begin
iCLKb <= !iCLKb;
if( !iCLKb ) begin
iCLKc <= !iCLKc;
if( !iCLKc )
iCLKd <= !iCLKd;
end
end
end

I got it to nearly a working state by removing a bunch of inferred latches; at least the initial state has 0's.

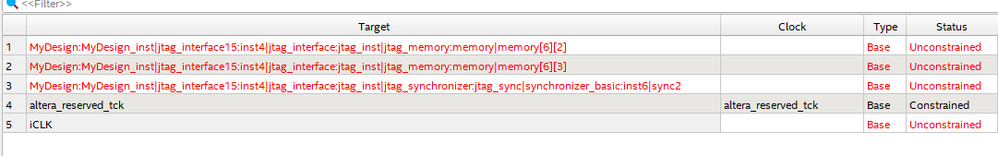

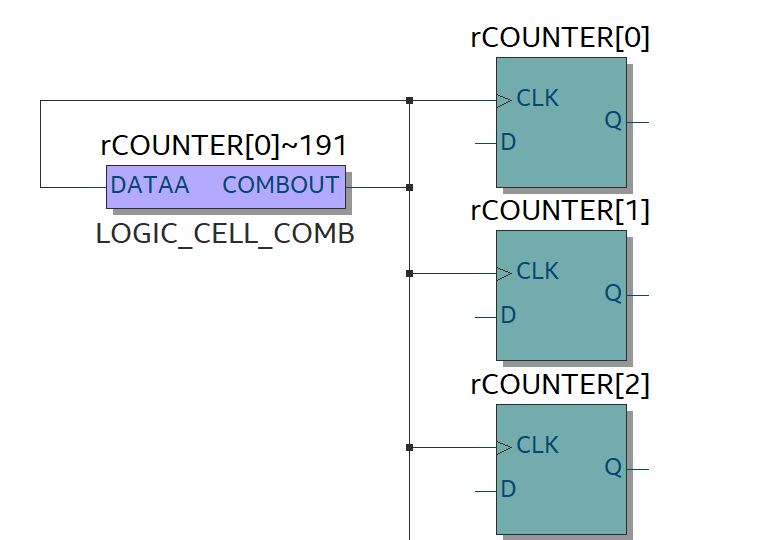

These are the unconstrained clocks. they are all outside of the counter. The last iCLK isn't mine, but is at the top of the main module

module MKRVIDOR4000_top
(
  // system signals
  input         iCLK,
  input         iRESETn,

And that top module I haven't touched.

I renamed my click to iCLK_ff, and it's not listed as a clock.

The other two bits are outputs from the jtag interface - they go to 'or' gates that should be the input latch signal, and the trigger from USB through jtag... they're not clocks either. I searched for how to fix some of these clock signals, and some said I could use Assignment Editor - but none of those show up in the assignment editor to make not clock.

I did try to define a clock for iCLK_ff,l but then it said there was a defined clock, and no reference to it.

create_clock -name {MyDesign:MyDesign_inst|COUNTER:inst6|iCLK_ff} -period 0.2 -waveform { 0 0.1 }

But even then, I can just put in arbitrary numbers - doesn't mean it would work any better.

https://github.com/d3x0r/STFRPhysics/blob/master/hardware/fpga/clock-module.4.v This is the version that is almost working. without any inferred latches.

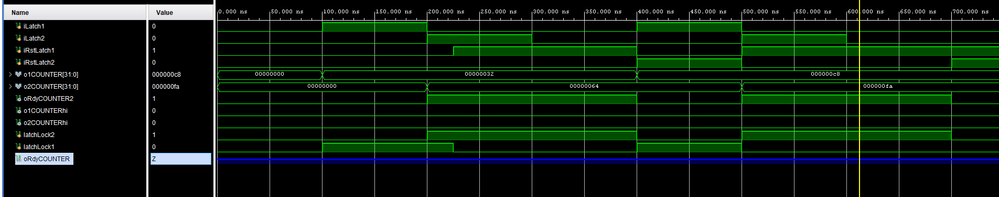

Timing diagram with

Comments from the code...

input               iLatch1,      // signal event that latches the counter to register 1
input               iLatch2,      // signal event that latches the counter to register 2
input               iResetLatch1, // sent after the value in register 1 is read from (or sent to) the USB
input               iResetLatch2, // sent after the value in register 2 is read from (or sent to) the USB
output [31:0]       o1COUNTER,    // register 1 with latched counter value
output [31:0]       o1COUNTERHi,  // register 1 with latched counter value high bits
output [31:0]       o2COUNTER,    // register 2 with latched counter value
output [31:0]       o2COUNTERHi,  // register 2 with latched counter value high bits
output  oRdyCOUNTER,           // signals that data has been latched in register 1
output  oRdyCOUNTER2,           // signals that data has been latched in register 2

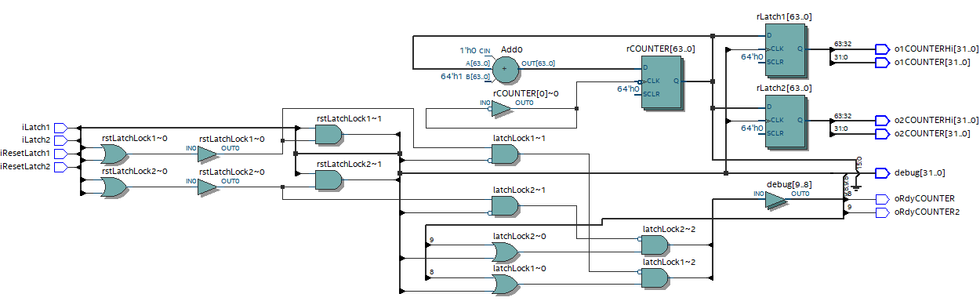

So - a high speed clock.

2 registers to store the current clock, when triggered by iLatch1 or iLatch2
once the value is latched, the internal latchLock1 and latchLock2 are set, which become the oReadyCounter and oReadyCounter2 signals out.
The values are read over a USB connection from the latched registers (o1Counter, o2Counter in the simulation diagram).
Then the iRstLatch1, or iRstLatch2 is sent to reset the latchLock1 or latchLock2, to allow the iLatch1 or iLatch2 triggers to latch a new value.

   latchLock1 <= ( iLatch1 || latchLock1 ) && !( !iLatch1 && ( rstLatchLock1 ||iResetLatch1 ) );
	rstLatchLock1 <= ( iLatch1 && (iResetLatch1 || rstLatchLock1) ) ;

   latchLock2 <= ( iLatch2 || latchLock2 ) && !( !iLatch2 && ( rstLatchLock2 ||iResetLatch2 ) );
	rstLatchLock2 <= ( iLatch2 && ( iResetLatch2 || rstLatchLock2 ) ) ;

latchLock is set on posedge iLatch1 , and not reset.
if iLatch1 is still high when the iResetLatch1 comes in, then an internal flag rstLatchLock1 is set until iLatch1 disappears.

same of 2.

So [high speed counter] ->on latch signal -> [register1] or [register2] -> read values -> reset lock on registers so a new timer can be latched.

all of the latching/reset stuff is very slow (the latch signal from a pin will probably be about 1 millisecond, and from the test program is more like 10 milliseconds long) the reset signal is also probably about 10 milliseconds long ... the time from latching until the signal is read should be less than 1 second, but delays of a few milliseconds overall are acceptable.
The only thing that's time critical is 1) a high tick rate and 2) when the signal from a pin is recognized, latch the current clock into a register; and there's two registers which can be latched from the single time source, with separate latching signals.

1) "must be provided through module interface" I not convinced - while I understand I was generating a overly fast clock, as long as it's slow enough I'm sure I could use an internal clock, since the iCLK=!iCLK timer worked to increment the counter several times; but I guess I introduced a bunch of inferred latches between when it almost worked and when it didn't work at all. (The following was tested after the rest of the message was written) The following synthetic clock works from 1 to 5, 0 has a lot of jitter, but 1 triggers the counter about every 0.5-0.7ns; 2 triggers it every 3.7 to 3.8ns; 3 is about 7ns, 4 is about 15ns, then there's a big jump and 5 triggers the counter every 47ns, and 6 is about 60ns. (though this is brittle; I remove all the other code, and it stopped working entirely - I've put it back now, but only get 5ns for synthclock[1] and 10ns for synthclock[2])

reg [6:0] rSynthClock = 0;
always begin
   #1
	rSynthClock[0] = !rSynthClock[0];
end

always @(posedge rSynthClock[0] ) rSynthClock[1] = !rSynthClock[1];
always @(posedge rSynthClock[1] ) rSynthClock[2] = !rSynthClock[2];
always @(posedge rSynthClock[2] ) rSynthClock[3] = !rSynthClock[3];
always @(posedge rSynthClock[3] ) rSynthClock[4] = !rSynthClock[4];
always @(posedge rSynthClock[4] ) rSynthClock[5] = !rSynthClock[5];
always @(posedge rSynthClock[5] ) rSynthClock[6] = !rSynthClock[6];

2)The latch signal waveform is slow - 1ms on with an off time of about 1 second. which is forever by any of the clocks.

I brought in the iCLK_MAIN that is given to the design from the _top file. It's only a 120mhz clock.

I then implemented a phase shift on that clock https://stackoverflow.com/a/50172237/4619267
but that actually makes a lot of latches which make the phases pretty slow. The phase offset is only about 1ns, I get basically 8 phases on the 120Mhz clock which gets me to 960Mhz effectively.
The phase shifter is a long list of these... up to [25].

always @(posedge globalClock ) 	iCLK_ff_p[0] = !(iCLK_ff_n[0]);
always @(negedge globalClock) 	iCLK_ff_n[0] = (iCLK_ff_p[0]);
always begin  #5    iCLK_ff[0] = iCLK_ff_p[0] ^ iCLK_ff_n[0];  end


always @(posedge iCLK_ff[0] ) 	iCLK_ff_p[1] = !(iCLK_ff_n[1]);
always @(negedge iCLK_ff[0]) 	iCLK_ff_n[1] = (iCLK_ff_p[1]);
always begin  #5    iCLK_ff[1] = iCLK_ff_p[1] ^ iCLK_ff_n[1];  end

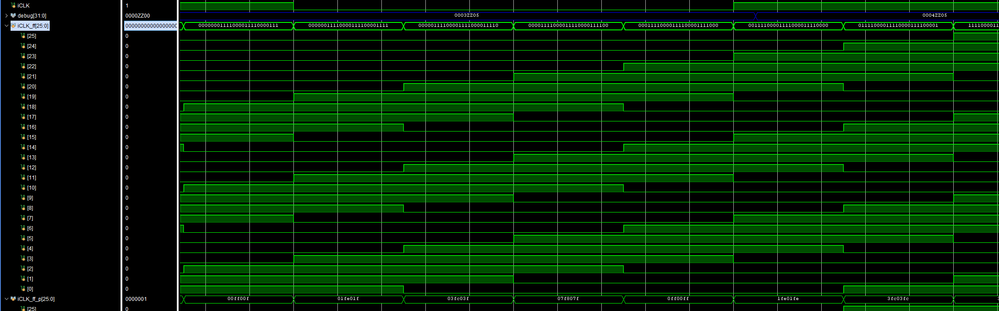

I could wish for a less latch intensive solution. Now nothing changes faster than the main clock now, I just get 25 waveforms that are the same as the main clock offset by an amount. (which since there's only 8 phases that actually tracks about 3 clock pulses 4 on bits and 4 off bits... basically like this screenshot...

iCLK is the main clock (at the top) and iClk_ff[n] are phase shifted version - they composite into the top value of like 0000111100001111000011110, 0001111000011110000111100, etc.

400 MHz would help, but not really because then I'd only get a couple phases on top of that.
The internal gates seem to be about 200ps, so I don't see it as entirely out of the ball park... (other than it seems to take at least 5 gates to form the phase shifted latches... ) but I can't think of a better way to do the phase shifting.

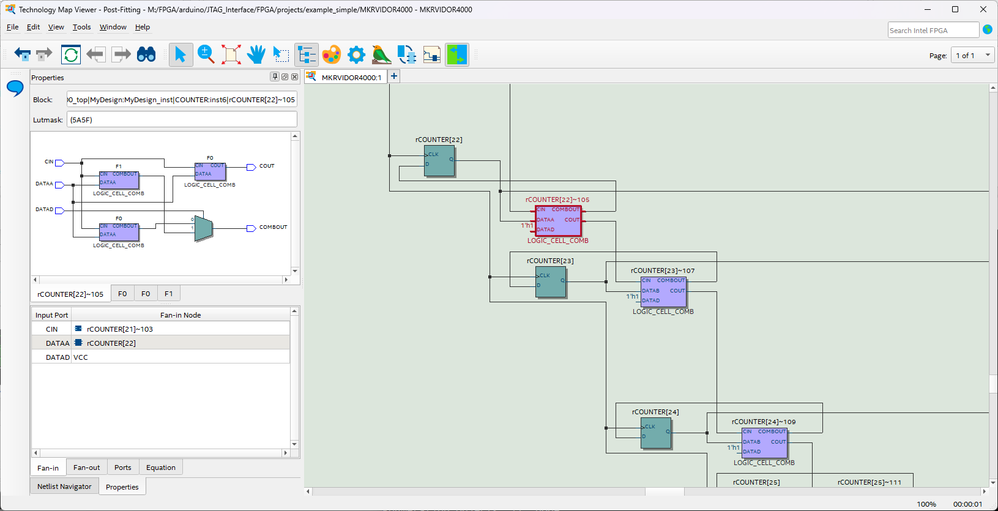

This node has quite a few things in 'Equation' to make it... which is part of the phase shift logic

Don't want to argue why your internal clock generation method isn't reliable. Just take as granted that it's beyond any FPGA specification and not supported by Quartus. And not necessary because you can easily generate a wide range of legal clock frequencies with built-in PLL.

Quartus timing analyzer tells that fmax of basic 64 bit synchronous binary counter used in your design is about 150 MHz for Cyclone 10 speed class 8 and 200 MHz for fastest speed class 6.

Another basic problem of your design is iLatch1,2 being asynchronous to iCLK. Respectively it's not guaranteed to latch counter value consistently. In a regular design, iLatch has to be synchronized to iCLK or counter value gray encoded.

"This ticks the counter at 300-600ps. Depends on temperature. "
"But, if I put my finger on it (warm it up) it goes slower... if I blow on it I can get it down to 400ps pretty regularly."
" I also can't remove or change anything, or it stops behaving so well. "

"Uses a synthetic clock (internal not gate driving a divide by 2 wire). "

So you are using a feedback loop of gates to generate am oscillator, which is not very stable nor reproducible.

We have told you that multiple times that this is an unreliable design approach.

That is why we have fixed clock sources and PLL blocks to be able to generate fixed frequency stable clock sources.

IDK what is the utility of a 'stopwatch' is where the clock wanders all over the place based on temperature.

"I know what I see can't be seen by you, but it's not just running on a simulator, it's physically running here on my desk and clocking at that rate - so I don't understand why I should be convinced that what is happening isn't happening, and can't be done."

I believe you were able to kludge together a one off hack. But you can't change it nor predict its frequency. Congratulations.

I'm done here. You don't want to listen to experienced FPGA designers that your approach is flawed. Good luck to you.
