Max V 5M80ZE64C5N examine / Verify Failure

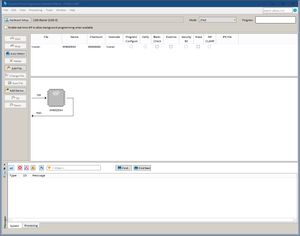

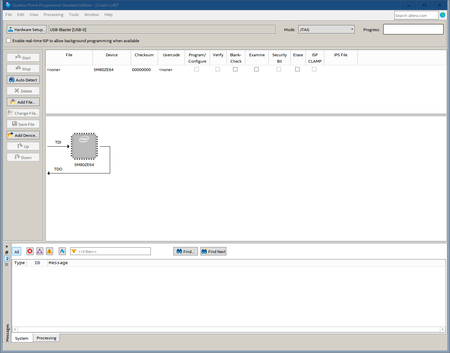

Hardware Synology Board with 5M80ZE64C5N PL-USB Blaster RCN Rev C Software Win 10 Programmer Standalone Quartus Prime 17.1.1-593 ( all Versions above have a Bug with File save after eamine ) Device selected 5M80ZE64 selectable Boxes ( dark grey ) : Blank check - examine - erase not selectable Boxes ( light grey ) : Programm - verify - security Bit - ISP Clamp ( exactly same on Brand new chip ) Examine successful 100% File saved USM and CFM appear Verify USM pass Verify CFM Fail Message : 209048 verfy failure on devive number 1 209012 Operation failed what am i doing wrong ?
Programming Altera Max EPM3256AQC208-10N PQFP-208
Hello, I have an Altera Max EPM3256AQC208-10N PQFP-208, the chip is not connected to the card but is single. How can I read the data in this chip and programming data into it? Which devices should I use? I know that USB Blaster is used for programming this type of chips. But how can I connect its JTAG header to the chip? Maybe you know a good method.
Intel® FPGA Technical Training for every public users
Dear all, Altera FPGA technical training offers many ways to learn. Sharpen your FPGA design skills today! All public training is free to attend. Training includes: Instructor-led Classes On-Demand eLearning Webinars and Workshops Quick Videos and many more Certified Intel FPGA Training Partners are available to teach in the following regions of the world: Africa, Asia, Australia and New Zealand, Europe, India, Israel, and South America. Click here Altera® FPGA Technical Training for more details. Kind regards, Altera Support Team
Cyclone 3 Not entering AS Mode
Before i start, will love to say am new to FPGA and entry level with Electrical. We have an old tool we purchase that has a Cyclone 3 board on it. We have a simple code (attached) that we can easily run through JTAG with no issue. When we try to run as AS we get some error about invalid device. We load the code to the EPCQ16A memory chip using a tool and when we put it back, it still not running. We probed the DCLK of the Cyclone and signal is at 17khz and very noisy. Spent weeks on this with zero support. Please can someone tell us what we are missing here?
How to set clock controller in BTS (board_test_system) for 32G (NRZ) MXP BTS example
Dear support: We expect the Agilex 7 FPGA I-Series F-Tile. All four channels can run at 32G NRZ and 58G PMA4. Currently, we use the factory default setting, and MXPM can run at 25.78118G without errors. The setup background is as follows, please guide us on how to setup BTS to run 32G NRZ application. Thanks. //------------------------ device: Agilex 7 FPGA I-Series Transceiver-SoC Development Kit (Power Solution 1 Board) software: Quartus prime pro 23.3 / BTS conditions: (1) use Factory Default Switch Settings. (2) image file: bts_mxpmn.so Regards, Ming
Help Needed: Implementing UART and SPI on Altera MAX II EPM240 CPLD
Hi everyone, I'm currently working with the Altera MAX II EPM240T100C5N CPLD and I'm trying to implement UART and SPI communication protocols on it. I'm using Verilog HDL and targeting a 3.3V logic level for interfacing. Goals: Transmit and receive data using UART (preferably at 9600 baud). Interface with SPI peripherals (as SPI master). Trigger UART transmission (e.g., send byte 0xAA) every 100µs. Ideally get tested and working Verilog code examples for both protocols. Questions: Is the EPM240T100C5N suitable for implementing UART and SPI protocols purely in Verilog? Are there any working code examples or recommended design practices for: UART Tx and Rx SPI Master Can I reliably generate periodic signals (e.g., 100 µs interval) with the internal resources? Any caveats or issues to watch out for when using these communication protocols on the MAX II CPLD? My Setup: Device: Altera MAX II EPM240T100C5N Tools: Quartus II HDL: Verilog Clock: 50 MHz Power: 3.3V No onboard PLL If anyone can share sample Verilog code or tips, that would be extremely helpful!
Quartus fails at the Fitter stage, with the following error message. How should I resolve this?"
Error (170143): Final fitting attempt was unsuccessful Info (170138): Failed to route the following 2 signal(s) Info (170139): Signal "tic:tic4|WideOr4~0" Info (170139): Signal "tic:tic6|stop_delt_flag[1]" Info (170140): Cannot fit design in device -- following 2 routing resource(s) needed by more than one signal during the last fitting attempt Info (170141): Routing resource LAB Input (X14_Y8, I16) Info (170141): Routing resource LAB Input (X14_Y10, I35) Error (11802): Can't fit design in device. Modify your design to reduce resources, or choose a larger device. The Intel FPGA Knowledge Database contains many articles with specific details on how to resolve this error. Visit the Knowledge Database at https://www.altera.com/support/support-resources/knowledge-base/search.html and search for this specific error message number. Error: Quartus Prime Fitter was unsuccessful. 2 errors, 70 warnings Error: Peak virtual memory: 7414 megabytes Error: Processing ended: Tue Mar 05 17:25:28 2024 Error: Elapsed time: 00:02:21 Error: Total CPU time (on all processors): 00:04:13 I am working on someone else's circuit board and cannot modify the pins or replace the chip。
