When using the "DDR3 SDRAM Controller with UniPHY" why does the generated .sdc specify the DDR3_ck and afi_clk at 80% of their specified rate from Qsys?

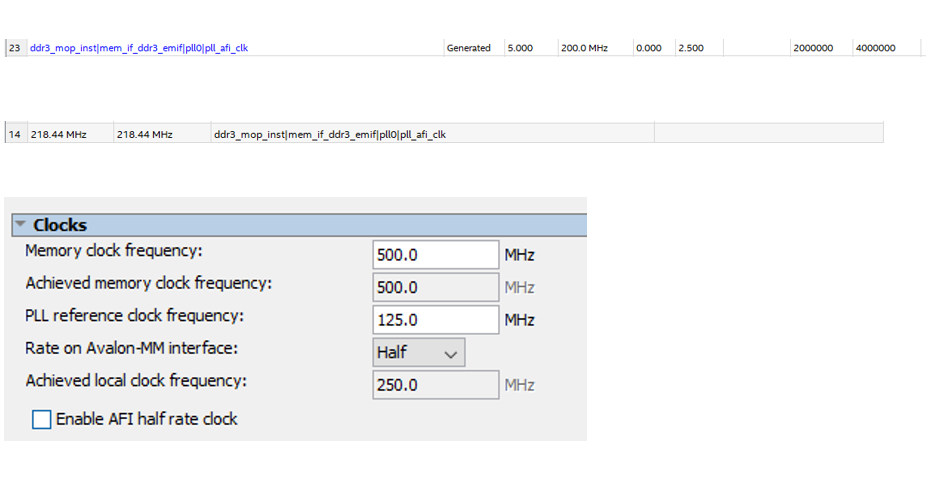

In Qsys I specify the "Memory clock frequency" as 500MHz. After compilation I run the timing analyzer, when I run "Report Clocks" it shows:

DDR3_CK: 400MHz

pll_afi_clk: 200MHz

When I run "Report Fmax Summary" it shows:

pll_afi_clk: 218MHz

It "passes" timing with Fmax of 218MHz. This is insufficient when mem_ck is really 500MHz and afi_clk is half that rate at 250MHz. I scoped mem_ck on our board and confirmed it being 500MHz which is what I specified in QSYS.

What is the cause for this discrepancy in the timequest analyzer?

Quartus Prime Standard 17.1 and 18.1

ArriaV GZ

3 Replies

  • NurAida_A_Intel's avatar
    NurAida_A_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago

    Dear Vince,

    Thank you for joining this Intel Community.

    I can see you are using Half rate on Avalon-MM interface. For half rate, the maximum supported frequency for DDR3 is 400 MHz which means 500MHz is not supported for this type of interface. That's the reason you see below setting after compilation.

    DDR3_CK: 400MHz

    pll_afi_clk: 200MHz

    For more details, you can refer to this EMIF spec: https://www.intel.com/content/www/us/en/programmable/support/support-resources/support-centers/external-memory-interfaces-support/emif.html

    I am truly sorry for the inconvenience caused.

    Thanks

    Regards,

    NAli1

    • Vince's avatar
      Vince
      Icon for New Contributor rankNew Contributor
      6 years ago

      ​Thank you for your response, I have overlooked that the max rate is 400MHz. Unfortunately, when I enter 400MHz into Quartus the Timequest Analyzer still exhibits the same behavior of showing the clock summary at 80% of the 400MHz.

      DDR3_CK: 320MHz

      AFI_CLK: 160MHz

      This would still cause issues as the .sdc is specifying the AFI_CLK at a lower frequency so the logic is not being optimized to run at the correct frequency. What is causing this discrepancy?

  • NurAida_A_Intel's avatar
    NurAida_A_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago

    ​Hi Vince,

    May I know what is the speed grade of the device used? It would be better if you can share with me the full part number of the device 😊

    Also, is there other clock source used beside afi_clk? The reason I ask this because using another clock would cause Qsys to automatically instantiate clock-crossing logic, potentially degrading performance.

    Regards,

    NAli1
