Synthesize NIOS II with different .qsf and no time_limited

Hi,

We are 100% new to Quartus (and FPGA in general). I have a project (the DE1-SoC Computer System that comes by default with the University Program when using NIOS II), that I would like only to change the .qsf file with a couple of small changes and synthesize it to run in the DE1-SoC. These changes are just remapping the switches to some GPIOs.

When I open the project and synthesize it using Quartus Prime Lite, it ends up generating a file called "DE1_SoC_Computer_time_limited.sof". I successfully run this file but I have to be running the quartus command; which is a problem especially when I want to run also nios2_terminal at the same time.

I have read that I need a license, and that I can request it in: https://licensing.intel.com/psg/s/

But I have no idea what license to request to avoid the time_limited part, or how to apply it. Is it "Intel® FPGA IP IP-NIOSVG"? Is it "Intel® FPGA IP IP-NIOSVM"? Do I have to use the IP Catalog? Is it because of using Quartus Prime Lite?

Thank you so much in advance,

PO

8 Replies

  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor
    2 years ago
    Hello,
    do I understand right that you have DE1-SoC board (Cyclone V with ARM SoC). Why do you want to use Nios II soft processor? I guess that your existing design is based on classical Nios II/s core, it requires Quartus Prime Standard (paid license). You might possibly switch to free Nios II/e core. What is your Quartus version?
  • KellyJialin_Goh's avatar
    KellyJialin_Goh
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi,

    Greetings and welcome to Intel's forum.

    May I know the Quartus version(17.0 or 19.1 etc) you are using? And May I confirm with you the DE1 soc you are using is a Cyclone V with ARM SoC core?


    When using the Quartus Prime Web Edition, compiling a design with a Nios II/s or Nios II/f processor will produce a time-limited SOF file. As a result, the board must remain connected to the host computer, and the design cannot be set as the default configuration. Designs using only Nios II/e processors and designs compiled using the Quartus Prime Subscription Edition do not have this restriction.


    You may need to request a paid license to use the Quartus Prime STANDARD version and using the Nios II/e core to avoid the time_limited part.


    I have here a manual on more information of the DE1-soc Computer for your reference: https://ftp.intel.com/Public/Pub/fpgaup/pub/Intel_Material/18.1/Computer_Systems/DE1-SoC/DE1-SoC_Computer_NiosII.pdf


    Hope to hear on your feedback and looking forward to your feedback.


    Thank you.

    Regards,

    Kelly


  • llpo's avatar
    llpo
    Icon for New Contributor rankNew Contributor
    2 years ago

    Hi FvM, Kelly,

    Thank you for your answers!

    Yes: DE1-SoC (Cyclone V with ARM SoC). In the FPGAcademy courses ( https://fpgacademy.org/courses.html ) they support both ARM and Nios and we have to support Nios II. The project I am trying to synthesize is the "University Program" that Intel provides for Nios II on DE1-SoC.

    I had read that Nios II/e had some limitations in floating point and I am not sure if these limitations can affect the projects professors work with; so I would prefer, if possible, to stick with the original configuration if possible.

    I have just downloaded the Quartus Prime Standard 22.1std.1 with the 90-day evaluation license, but I see that this also generated the DE1_SoC_Computer_time_limited.sof file. In theory with the Standard version it should be enough, or do I need any further license of an IP or similar?

    Thank you!

  • KellyJialin_Goh's avatar
    KellyJialin_Goh
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi,

    Thank you for your feedback.


    Unfortunately, the DE1_SoC_Computer project is a default design example, you can only use the Nios II/e core to avoid the time_limited part as stated from the manual.


    Yes, the Nios II/e core will have some floating point limitations, but you may change the core to a fast core for other projects you wish to compile.

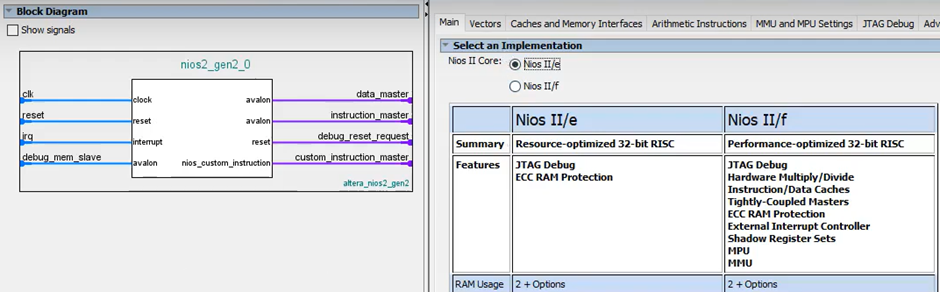

    I have attached a screenshot on the NIOS II processors (e and f) for your reference where you are able to change.
