Simulate Arduino on a Intel FPGA board

Don't use a Cyclone 10 LP. Use something like this:

https://www.terasic.com.tw/cgi-bin/page/archive.pl?Language=English&CategoryNo=165&No=1046#contents

that has an Arduino compatible header footprint, and an embedded Arm processor subsystem.

If you HAVE to do in on a Cyclone 10 LP (which has no internal processors) then you need to implement an Arduino compatible processor as well as the I/O subsystems you need. It will not be 'easy'.

Not sure what you mean. Are you saying you want to implement an Arduino in an FPGA or are you talking about connecting an Arduino board to an FPGA?

• Is implement an Arduino on an FPGA.

If I Use something like this(https://www.terasic.com.tw/cgi-bin/page/archive.pl?Language=English&CategoryNo=165&No=1046#contents) what I need to do? In the really I'm not wanna use an Cyclone 10 LP . To be more clear I'm going use because I'm going to use an Arduino mkr vidor 4000 Dev board and this board have an Cyclone 10 LP . I want to simulate on it an more simple Arduíno like the uno, but is an project for learning purposes.

Hi,

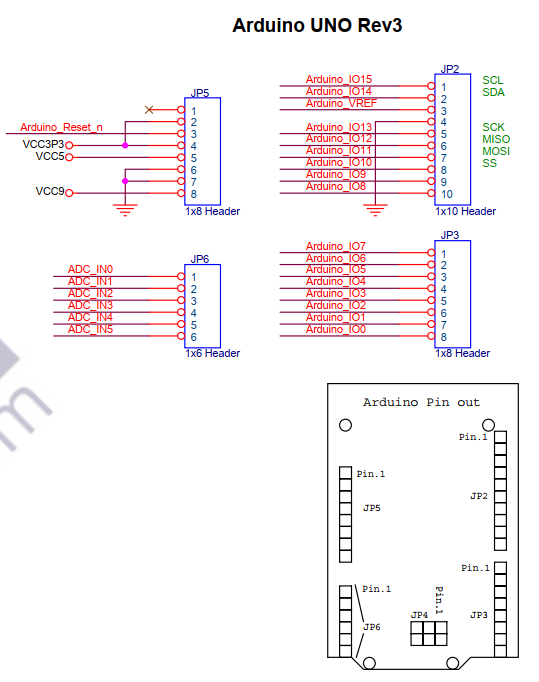

The Arduino compatible header expansion is Arduino UNO Rev3. Check picture below:

Probably have to create a design and make appropriate pin assignment in pin planner. Then, you can signal-tap those pins waveform.

Thanks,

Best regards,

Sheng

Hi,

For Nios related question, probably you have to open a new thread in embedded forum https://community.intel.com/t5/Nios-V-II-Embedded-Design-Suite/bd-p/nios-II-embedded-design-suite for further confirmation.

Thanks,

Best regards,

Sheng
